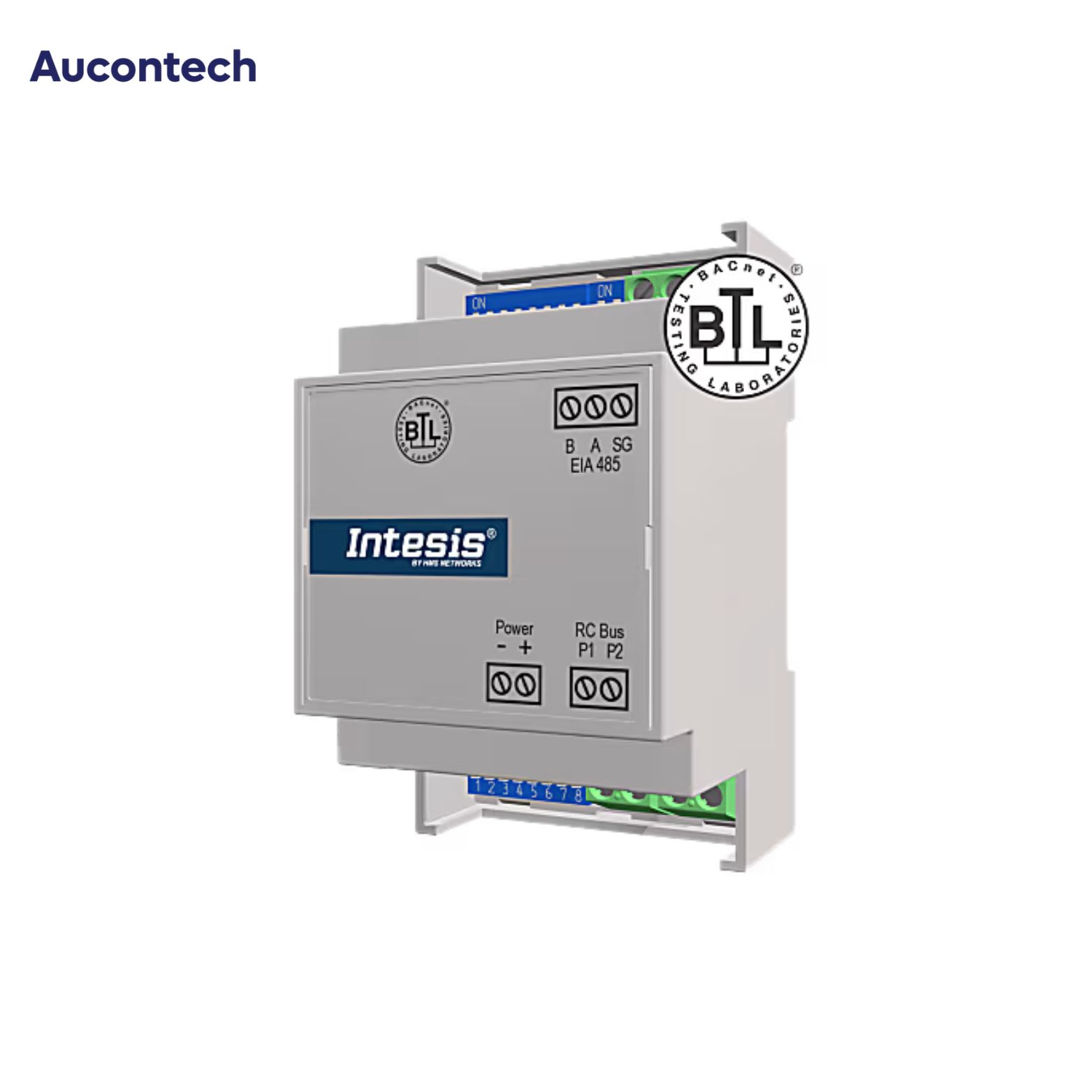

Daikin VRV and Sky systems to BACnet MS/TP Interface - IN485DAI001R000

Daikin VRV and Sky systems to BACnet MS/TP Interface - IN485DAI001R000

Giá bán: Liên hệ

Mã sản phẩm: IN485DAI001R000

Thương hiệu: Intesis - HMS Industrial Networks

Tình trạng: Còn hàng

The Daikin-BACnet interface allows full bidirectional communication between Daikin VRV and Sky Air Conditioner units and BACnet MS/TP networks. The interface enables BACnet communication via polling or subscription requests (COV), making the indoor unit available through independent BACnet objects. A wired remote controller can also be connected.

Tư vấn hotline

0965746247

Trong 1 - 2 Giờ làm việc không bao gồm chủ nhật và ngày lễ

Đổi trả sản phẩm trong vòng 7 ngày nếu có lỗi từ nhà sản xuất

Hotline tư vấn0379 447 488

TÌM HIỂU THÊM

Mô tả

Specification	Value
Content of Delivery	Intesis Gateway and Installation Manual
Net Width (mm)	88 mm
Net Height (mm)	56 mm
Net Depth (mm)	90 mm
Net Weight (g)	95 g
Mounting	DIN rail mount (bracket included), Wall mount
Input Voltage (V)	14 VDC
Power Consumption (W)	1.12
Power Connector	3-pole
Operating Temperature °C Min	0°C
Operating Temperature °C Max	70°C
Storage Temperature °C Min	0°C
Storage Temperature °C Max	70°C
Housing Materials	Plastic
Packaging Material	Cardboard
Warranty (years)	3 years
AC Model Compatibility	Daikin VRV & Sky systems
Packed Weight (g)	188 g
Packed Depth (mm)	110 mm
Packed Height (mm)	86 mm
Packed Width (mm)	140 mm
Capacity	1 Indoor unit
Installation Conditions	This gateway is designed to be mounted inside an enclosure. If the unit is mounted outside an enclosure, precautions should always be taken to prevent electrostatic discharge to the unit. When working inside an enclosure (e.g., making adjustments, setting switches, etc.), typical anti-static precautions should always be followed before touching the unit.
Configuration	Dip-switches

Field	Value
Item Number	IN485DA001R000
Export Control Classification Number (ECCN)	EAR99
Dual Usage	No
Country of Origin	Spain
Brand	Intesis
HS Code	8517620000

Certification / Standard	Value
CE	Yes
UL	Yes
WEEE Category	IT and telecommunications equipment
ETIM Classification	EC001604
UKPSTI	Yes
CB	Yes
BTL	Yes

Feature	Description
LED Indicators	Gateway and communication status
DIP & Rotary Switches	EIA-485 serial port configuration. Gateway settings
Connectors / Input / Output	Power supply, EIA-485, HVAC port
Contains Battery	No
