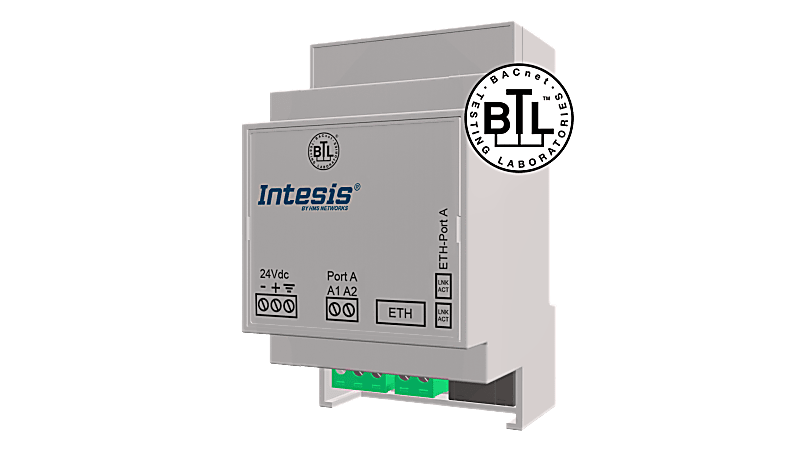

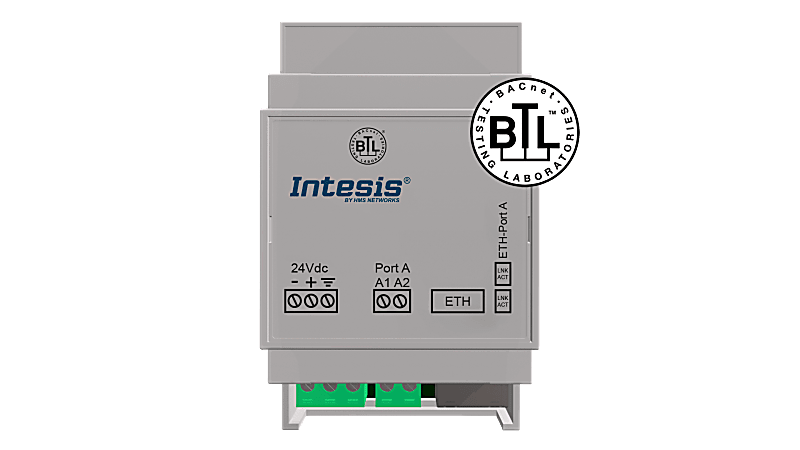

M-Bus Meters to BACnet/IP server - Up to 20 meters

M-Bus Meters to BACnet/IP server

Item number IN712MEB0200000

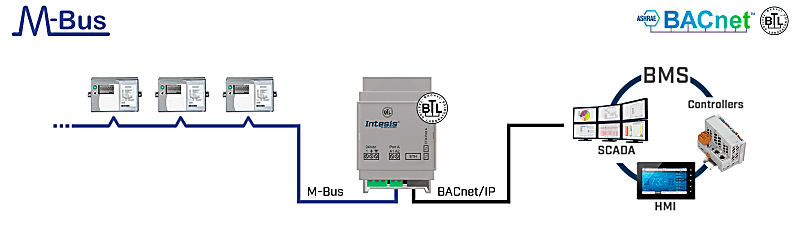

Enable fast and cost-effective integration of M-Bus meters into BACnet/IP networks. Built-in M-Bus level converter and auto-discovery features reduce setup time and simplify commissioning.

Features and benefits

• Two IP protocols supported on the BMS side: BACnet/IP or Modbus TCP

  Reduce the inventory needs while completing the building automation catalog for metering networks integration.

• Flexible licensing to cover from  small networks to large installations: 20 or 50 meters

  Improve the project's scalability and reduce upfront costs.

• Configurable inter-polling intervals (up to 48 hours)

  Preserve the meter’s battery life, particularly in low-power or retrofit environments.

• Error detection of every meter device

  Fast diagnostics and meter-level monitoring improve service quality and reduce troubleshooting time.

• Embedded M-Bus level converter

  Reduce installation costs. No extra hardware is needed

• Reduce commissioning time, effort, and errors

  Advanced commission features minimize manual input, including M-Bus scan to autodiscover M-Bus meters and import their signals, predefined configuration templates, project import/export to clone the project’s configuration, and load it to all necessary gateways.

• Improved communication stability with advanced timeout settings

  Support for a broader range of meters, even the most demanding or non-standard ones.

• BTL-certified gateways

  Easier to specify, sell, and deploy. This is a reliable product suitable for use in any project, even those with high regulatory requirements.
