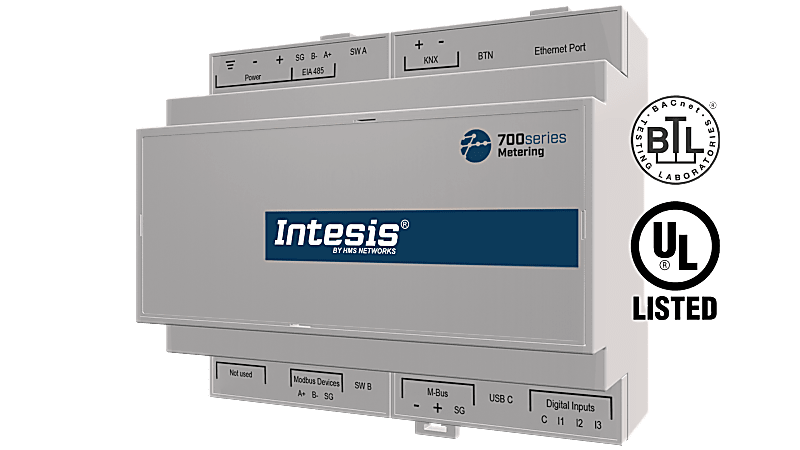

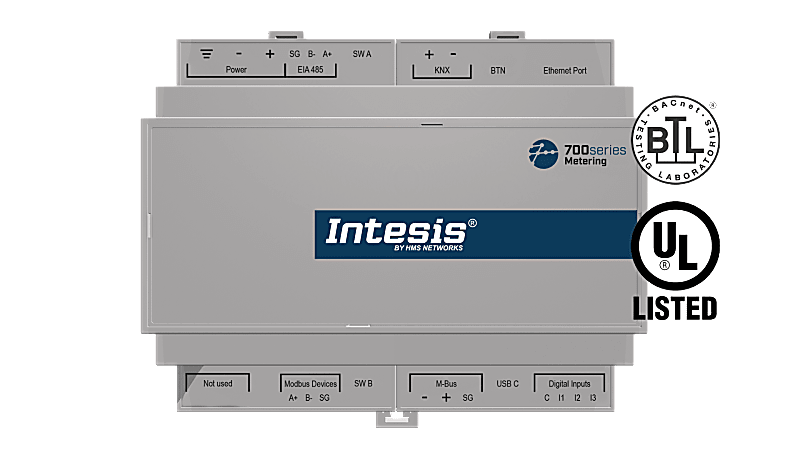

M-Bus, Modbus, and Digital Pulses to BACnet - Up to 20 meters

M-Bus, Modbus, and Digital Pulses to BACnet

Item number IN702MEB0200000

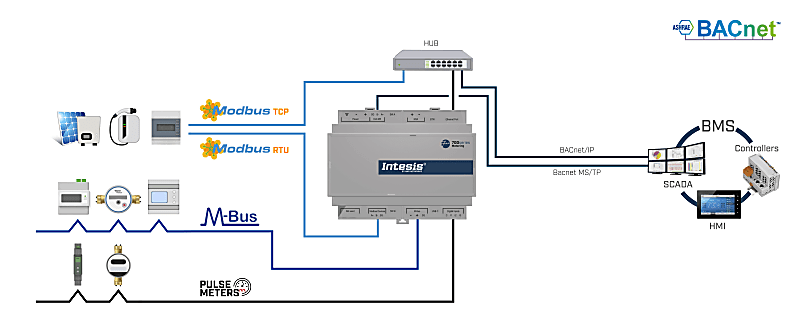

Enable fast and cost-effective integration of Modbus devices and meters, M-Bus meters, and pulse meters into BACnet/IP and/or MS/TP systems. Built-in M-Bus level converter and auto-discovery features reduce setup time and simplify commissioning.

Features and benefits

• Multiple protocols supported on the BMS side: BACnet/IP, BACnet MS/TP, Modbus TCP, Modbus RTU, and KNX TP

  Reduce the inventory needs while completing the building automation catalog for metering networks integration.

• Simultaneous connection of metering networks

  The all-in-one integration of M-Bus, Modbus TCP, Modbus RTU, and digital pulses simplifies complex metering projects, saving time and costs.

• Flexible licensing to cover from small networks to large installations: 10, 20, 60, or 100 meters

  Improve the project's scalability and reduce upfront costs. This gateway has an embedded M-Bus Level converter.

• UL and BTL-certified gateways

  Easier to specify, sell, and deploy. This is a reliable product suitable for use in any project, even those with high regulatory requirements.

• Configurable inter-polling intervals (up to 48 hours)

  Preserve the meter’s battery life, particularly in low-power or retrofit environments.

• Error detection of every meter device

  Fast diagnostics and meter-level monitoring improve service quality and reduce troubleshooting time.

• Reduce commissioning time, effort, and errors

  Advanced commission features minimize manual input, including M-Bus scan to autodiscover M-Bus meters and import their signals, predefined configuration templates, project import/export to clone the project’s configuration, and load it to all necessary gateways.

• Improved communication stability with advanced timeout settings

  Support for a broader range of meters, even the most demanding or non-standard ones.
