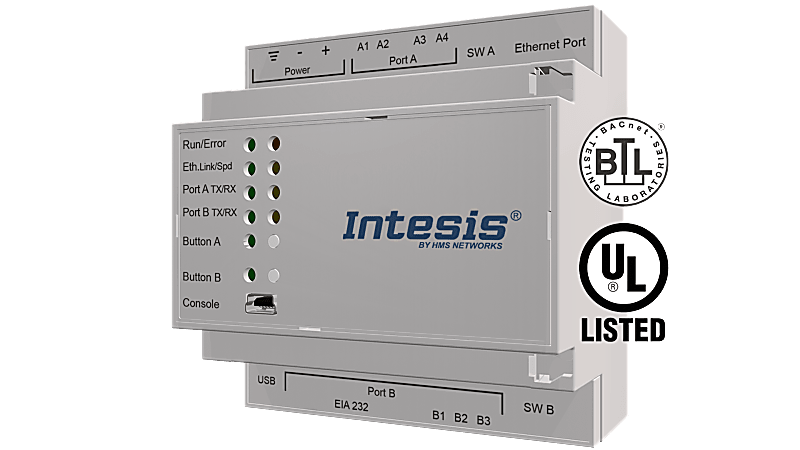

LonWorks TP/FT-10 to BACnet/IP & MS/TP Server Gateway

Item number INBACLON1000000

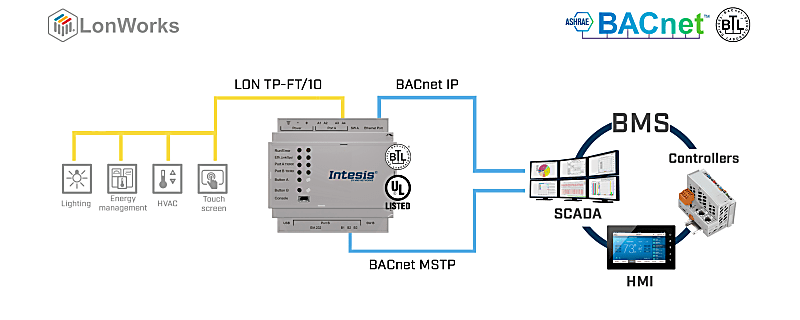

Integrate any LON device or installation with a BACnet BMS or any BACnet/IP or BACnet MS/TP controller. This integration aims to make LON devices, their network variables (SNVT), and resources accessible from a BACnet-based control system or device as if they were a part of the BACnet system and vice versa.

Features and benefits

• Support for both BACnet/IP and BACnet MS/TP

  The gateway supports both BACnet/IP and BACnet MS/TP protocols.

• Easy integration with Intesis MAPS

  The integration process is quickly and easily managed using the Intesis MAPS configuration tool.

• Commissioning-friendly approach with Intesis MAPS

  Templates can be imported and reused as often as needed, significantly reducing commissioning time.

• Configuration tool and gateway automatic updates

  Both the Intesis MAPS configuration tool and the gateway's firmware can receive automatic updates.

• Configuration through IP (Console) port

  Configuration can be carried out through the gateway's IP (Console) port.

• Support for LonWorks TP/FT-10 devices

  The gateway supports LonWorks TP/FT-10 (twisted pair free topology at 78 kbps) devices.

• Can be configured to Modbus TCP instead of BACnet

  The gateway is highly versatile, as it can be configured to work with Modbus TCP instead of BACnet.

• Control up to 3000 SNVT / UNVT LonWorks variables

  Up to 3000 SNVT/UNVT LonWorks variables can be controlled by the gateway.
