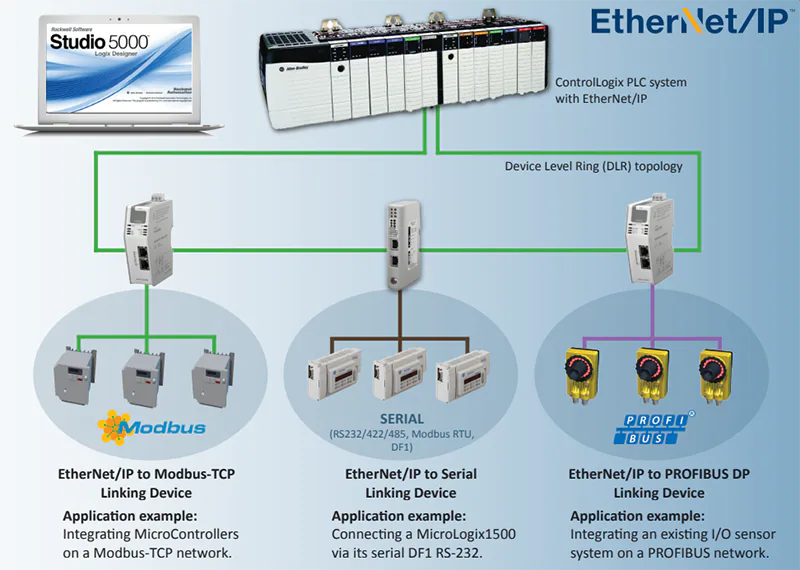

Connect any RS-232/422/485 serial device to ControlLogix® or CompactLogix® controllers with an EtherNet/IP interface.

The Linking Device performs intelligent protocol conversion. It presents serial data to the Logix PLC as easily processed I/O data. This offloads additional calculations from your Logix PLC.

Convert Almost Any Type of Serial Protocol
The device converts almost any serial protocol. Supported protocols include Modbus RTU, DF1, and ASCII. It also handles proprietary Request/Response or Produce/Consume protocols.

Seamless Integration with Studio 5000
Studio 5000® Logix Designer integration makes everything easily accessible. You can manage the serial network configuration directly within Studio 5000. No extra third-party software, licenses, or programming are required.

Connect, Configure, Done
Configure devices using a Custom Add-On Profile for Studio 5000 Logix Designer. This generates dynamic data structures for each connected device. No ladder logic files are needed. It also supports the automatic generation of structured Studio 5000 controller tags. This eliminates the need to create alias tags manually.

1. Features and Benefits

• Enables retro-fitting of existing serial RS232/422/485 devices with Logix PLCs via EtherNet/IP.
• Requires no hardware or software changes for the connected device.
• Connects up to 31 serial nodes via RS-485.
• Supports up to 500 bytes of Input data and 496 bytes of Output data.
• Speeds up configuration through seamless integration with Studio 5000 Logix Designer.
• Compatible with all ControlLogix and CompactLogix PLCs supporting EtherNet/IP.
• Easy to set up with Custom Add-On Profile. No programming required.
• Configured entirely through Studio 5000®. No third-party licenses needed.

2. EtherNet/IP Interface Features

The Linking Device features the latest ODVA EtherNet/IP adapter functionality:

• Dual EtherNet/IP ports (10/100Mbit) with full or half-duplex operation.
• Supports announced-based DLR (Device Level Ring) and linear network topologies.
• Supports multiple (Exclusive Owners) I/O connections (Max 10).
• ODVA EtherNet/IP conformance tested.

3. Serial Protocol Configuration Features

• Selectable RS-232/422/485 interface.
• Modbus-RTU Master functionality with a pre-defined configuration wizard.
• DF1 Master functionality with selectable pre-loaded commands.
• Configurable ASCII or vendor-specific protocols (via visual byte-based frame building).
• Ability to make popular checksum calculations.
• In-built Line Listener to analyze serial telegrams (accessible via Studio 5000).

4. Technical Specifications

For further integration details, please refer to our Studio 5000 setup guide for Linking Devices. You can also explore other industrial Ethernet gateways to expand your Logix PLC capabilities.
