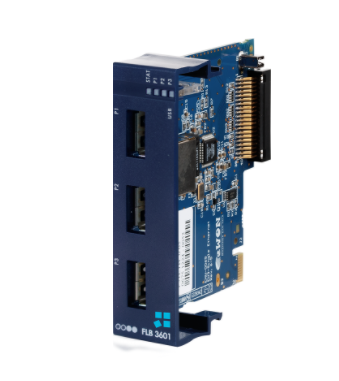

Flexy Extension Card - 3 USB Ports
This Flexy extension card increase the connectivity capability of the Ewon Flexy with 3 USB ports.
The Flexy USB card provides OEM and system integrators an additional way to connect to their industrial devices. Many small automation devices have seen their programming port which in the past worked through serial connectivity be replaced by USB connectivity. The 3 ports USB card is a 2.0 version at full speed and can pilot up to 10 USB connections.
It is compatible with the Ewon Flexy 10x series, 20x series and 205.
Technical Characteristics
| Leds |
4 leds:1 global status, 1 for each port status. |
| Connector | Type A female |
| Current limit | Each port has its own 500mA current limit . Global current limit on the board is 500mA |
| Port activation | All ports will be enabled/disabled together |
| Isolation | Earth GND isolation is limited to 500V due to USB connector design |
| Operating temp. | -25 to +60°C |
Certifications
| CE |
Compliant with : EMC directive 2014/30/EU; LVD 2014/35/EU According to standards : EMC emission Class A EN55032; EN55024 |
| FCC |
Compliant with : This product complies with the Part 15 of the FCC rules |
| Japan |
Compliant with : This device complies with Japanese regulations |
| Safety |
Conform to : EN;UL;IEC;CAN 60950-1 |
