IN7004851K20000 BACnet IP & MS/TP Client to Modbus TCP & RTU Server Application - Intesis

Giá bán: Liên hệ

Mã sản phẩm: IN7004851K20000

Thương hiệu: Intesis - HMS Industrial Networks

Tình trạng: Còn hàng

ORDER CODES:

IN7004851000000     Intesis Protocol Translator with Serial and IP support - 100 points
IN7004852500000     Intesis Protocol Translator with Serial and IP support - 250 points
IN7004856000000     Intesis Protocol Translator with Serial and IP support - 600 points
IN7004851K20000     Intesis Protocol Translator with Serial and IP support - 1200 points
IN7004853K00000     Intesis Protocol Translator with Serial and IP support - 3000 points



Tư vấnhotline0965746247

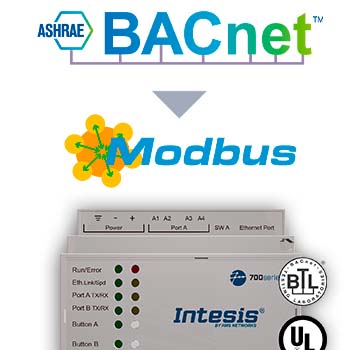

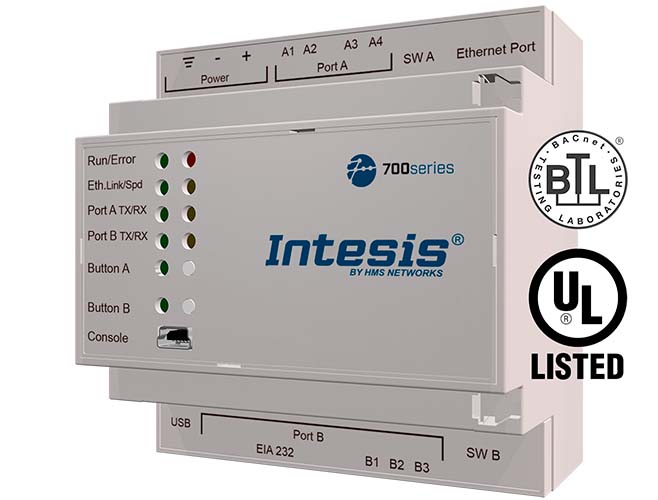

BACnet IP & MS/TP Client to Modbus TCP & RTU Server Application

Integrate any BACnet MS/TP or BACnet IP server device, with a Modbus BMS or any Modbus TCP or Modbus RTU controller. The aim of this integration is to make accessible BACnet objects data and resources from a Modbus based control system or device, as if it was a part of the own Modbus system and vice-versa.

FEATURES

  • UL Certified
  • BTL Certified
  • Support for up to 5 simultaneous Modbus TCP Clients
  • Both Modbus RTU & Modbus TCP
  • Both BACnet IP and MS/TP supported
  • Possibility to scan for BACnet devices with BACnet Explorer
  • Easy integration & updates with Intesis MAPS

Use Case

Integration of BACnet IP or BACnet MSTP devices into a Modbus TCP or Modbus RTU installation.



Description

This bidirectional gateway provides a straightforward and fast integration thanks to its unique onboard features.

Thanks to its support for both Modbus RTU and TCP, with the possibility to work together at the same time, a seamless integration with any Modbus BMS or controller it is guaranteed.

The configuration is carried out using the Intesis MAPS software. This one allows you to define your own settings for the device. Also, it will be able to download all the available project templates or to import any created/exported project template on your computer.

ORDER CODES:

IN7004851000000  Intesis Protocol Translator with Serial and IP support - 100 points
IN7004852500000  Intesis Protocol Translator with Serial and IP support - 250 points
IN7004856000000  Intesis Protocol Translator with Serial and IP support - 600 points
IN7004851K20000  Intesis Protocol Translator with Serial and IP support - 1200 points
IN7004853K00000  Intesis Protocol Translator with Serial and IP support - 3000 points
