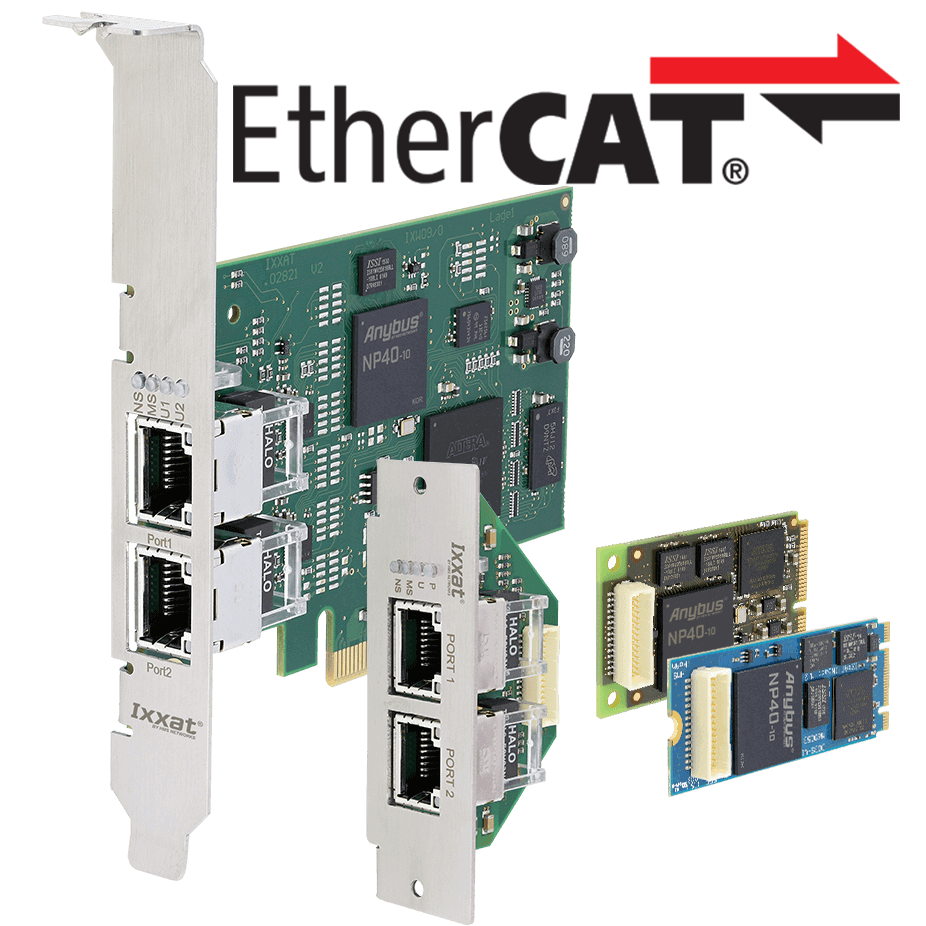

INpact ECT Slave PCIe

Versatile industrial Ethernet PC interface for EtherCAT

The dedicated EtherCAT version of the Ixxat INpact comes with a pre-installed network protocol. It enables the easy connection of PC-based EtherCAT Slave applications to the industrial network and is based on proven Anybus and Ixxat technology.

ETHERCAT FEATURES

• CANopen over EtherCAT (CoE)
• Support for Modular Device Profile
• DS301 compliant
• Galvanically isolated bus electronics
• Network Identity customization
• EMCY support
• Up to 57343 ADIs can be accessed from the network as Manufacturer Specific Objects and Device Profile Specific Objects (generic mode)
• Up to 16383 ADIs can be accessed form the network as Manufacturer Specific Objects and Device Profile Specific Objects (modular device profile enabled)
• Up to 1486 bytes of fast cyclic I/O in each direction
• EtherCAT Slave Interface file provided by HMS
• File access over EtherCAT (FoE)
• Support for process data remap from the network
• Possible to implement DS402 drive profile, semi device profiles, and other device profiles

EASY PROGRAMMING

The INpact card comes with a comprehensive C-API based driver package for Windows – enabling simple and rapid development of customer-specific applications – and with drivers for Linux. Operating systems such as RTX, Intime, VxWorks and QNX are supported upon request.

TECHNICAL SPECIFICATIONS

Order Information
