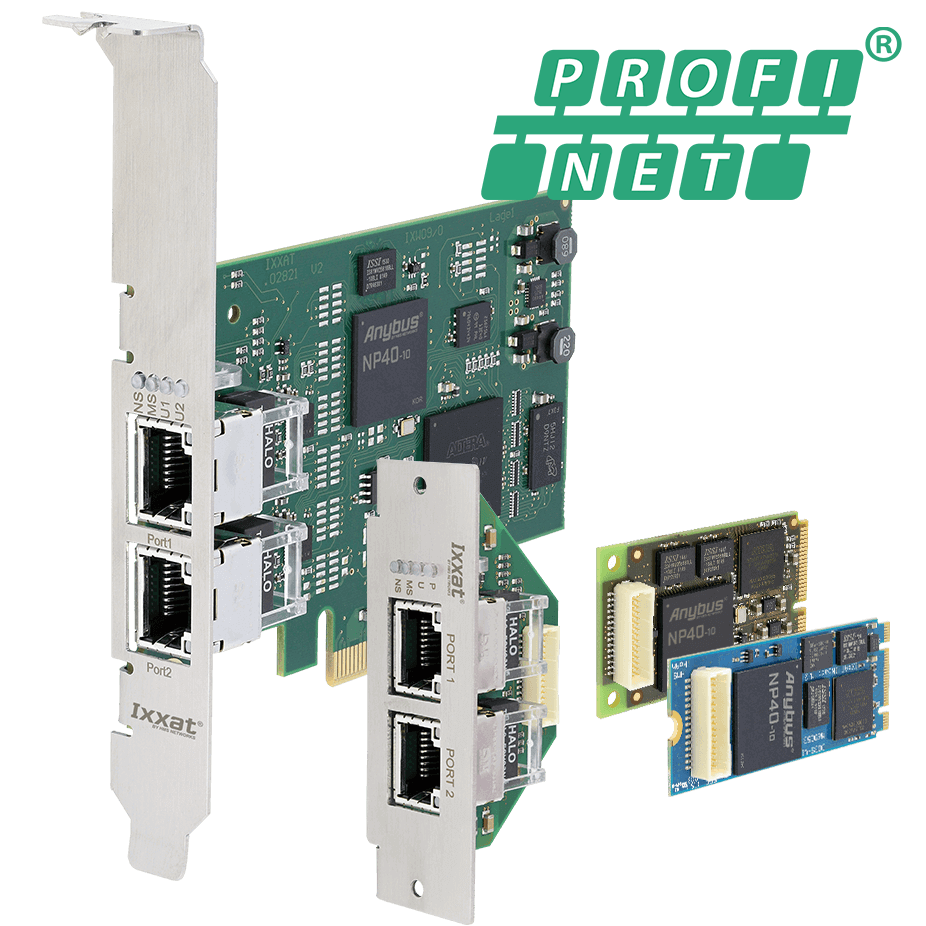

INpact PIR Slave PCIe - 1.01.0320.24110

Giá bán: Liên hệ

Mã sản phẩm: 1.01.0320.24110

Thương hiệu: HMS

Tình trạng: Còn hàng

Order number

1.01.0320.24110

Tư vấn hotline

0965746247

Trong 1 - 2 Giờ làm việc không bao gồm chủ nhật và ngày lễ

Đổi trả sản phẩm trong vòng 7 ngày nếu có lỗi từ nhà sản xuất

Hotline tư vấn0379 447 488

TÌM HIỂU THÊM

Mô tả

PROFINET IRT FEATURES

Up to 128 sub-modules in total supported
Up to 32767 ADIs
100 Mbit, full duplex
Generic and Profinet specific diagnostic support
Complies with Profinet IO Conformance class C
Supports up to 1440 bytes I/O data in each direction, status bytes included
SNMP agent
FTP server
E-mail client
Server Side Include (SSI) functionality
JSON functionality
Device identity customization
GSD file template provided by HMS
Supports Media Redundancy Protocol (MRP)

EASY PROGRAMMING

The INpact card comes with a comprehensive C-API based driver package for Windows – enabling simple and rapid development of customer-specific applications – and with drivers for Linux. Operating systems such as RTX, Intime, VxWorks and QNX are supported upon request.

TECHNICAL SPECIFICATIONS

	INpact PIR Slave PCIe Standard/Low Profile	INpact PIR Slave PCIe Mini	INpact PIR Slave M.2
Field bus interface	Two Ethernet ports, 100/10 Mbit	Two Ethernet ports, 100/10 Mbit	Two Ethernet ports, 100/10 Mbit
PC interfaces	PCI Express single lane port (x1) according to PCI Express base specification, revision 1.1	PCI Express single lane port (x1)	PCI Express single lane port (x1)
Network handling	Anybus NP40	Anybus NP40	Anybus NP40
Power supply	Via PCIe socket (3.3 V / 12 V DC)	Via PCIe (3.3 V)	Via PCIe (3.3 V)
Current consumption	Typ. 270 mA / 3.3 V DC, 110 mA / 12 V DC	Typ. 600 mA / 3.3 V DC	Typ. 600 mA / 3.3 V DC
Form factor	Standard height / low profile PCI Express add-in card profile	Full Mini Card form factor	M.2 2260 (Key B-M)
Operating temperature range	0 °C to 70 °C; Option: -40 °C to 70° C	-40 °C to 60 °C	-20 °C to 60 °C
Galvanic isolation	1,500 Vrms	1,500 Vrms	1,500 Vrms
Dimensions	64 x 105 mm	30 x 50.95 x 12 mm (with cable)	22 x 60 x 12 mm (with cable)
Weight	approx. 53 g	approx. 48 g (only board and cable)	approx. 25 g (only board and cable)
Certification	CE, FCC	CE, FCC	CE, FCC

Order Information

Product name	Supported protocol	Order number
INpact PIR Slave PCIe Standard Profile	Profinet IRT	1.01.0320.24110
INpact PIR Slave PCIe Low Profile	Profinet IRT	1.01.0320.24120
INpact PIR Slave PCIe Mini with connection cable (150 mm), bus coupling unit and mini bracket	Profinet IRT	1.01.0340.24153
INpact PIR Slave M.2 with connection cable (150 mm), bus coupling unit and mini bracket	Profinet IRT	1.01.0342.24153
Connection cable (300 mm) for INpact PCIe Mini or M.2		1.04.0340.00001
