Peregrine LTE BreadCrumb®

The Peregrine LTE is Rajant’s high-performance BreadCrumb equipped with LTE capabilities, allowing agile and reliable machine-to-machine and peer-to-peer communications.

More Performance for Less Money

Download the whitepaper to learn about Rajant’s hybrid Peregrine LTE performance results for both private and public LTE networks

Download Whitepaper

The Rajant Peregrine LTE BreadCrumb^® is Rajant’s latest quad transceiver industrial-grade, high-performance BreadCrumb. The Peregrine LTE supports a maximum combined data rate of 2.6 Gbps and up to 6X enhanced throughput performance over existing BreadCrumbs. It offers LTE capabilities, multiple MIMO radio interfaces, high throughput, and enhanced security performance with up to 256-QAM and 80 MHz channels.
Read the Press Release

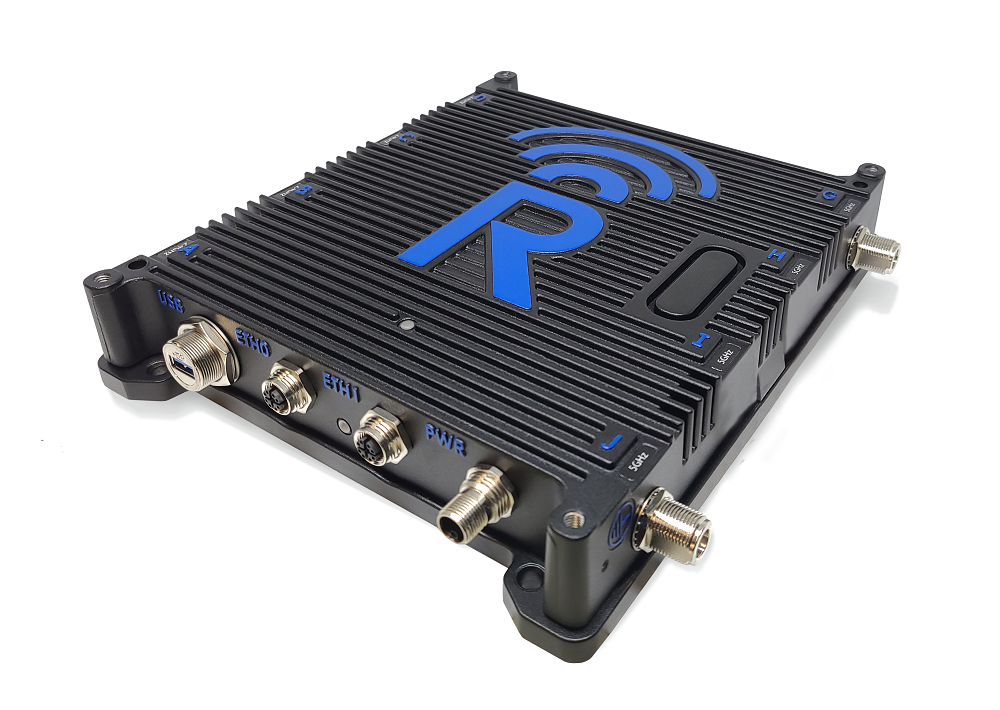

Rajant Peregrine LTE BreadCrumb®

The Peregrine LTE is interoperable with all Rajant BreadCrumb nodes. It is part of Rajant’s initiative to develop deeply integrated solutions that securely combine data from connected people, vehicles, machines, and sensors, with machine learning (ML). This new high-performance industrial-grade BreadCrumb platform provides secure connections to back-end networks using Rajant’s APT and RPT tunneling while actively using multiple frequencies to avoid interference and network congestion.

The Peregrine LTE uses real-time, automated packet routing to always select the best path for each packet. This data combination unlocks the benefits of process optimization, digital twins, predictive analytics, AR, VR, and more, while improving worker safety. Capable of providing a reliable connection in highly obstructed, cluttered, or shadowed areas, the Peregrine LTE is ideal to expand market capabilities for industries like rail, shipping ports, military, mining, and heavy construction.

• Multiple Radio Frequencies: 2.4 GHz, 5 GHz, carrier and private LTE as well as military, licensed, public service, and other proprietary radio frequencies
• Interfaces: Ethernet – two M12 X-Code female connector, 10/100/1000 Mbps, IEEE 802.3, auto MDI/MDIX
• Max RF TX Power: 23 dBm
• Power Consumption: 4 transceivers: 10 W (average, idle); 34 W (maximum, peak) @ 48 V
• Form Factor: 264.9 mm x 253.7 mm x 46.2 mm (10.43 in x 9.99 in x 1.82 in) and 2946 g (6 lbs 7.9 oz).

• Integrated 802.11AC Wi-Fi Access Point and client mode service for compatibility with millions of commercial off-the-shelf Wi-Fi client and access point devices
• Security: Support for several strong cryptographic options used for data and MAC-address encryption and per-hop, per-packet authentication
• Enclosure rating: IP67
• Temperature: Startup: -40 °C to +70 °C (-40 °F to 158 °F); Ambient (operating): -40 °C to +70 °C (-40 °F to 158 °F); and Storage: -40 °C to +80 °C (-40 °F to 176 °F)

Download the Peregrine LTE BreadCrumb^® Spec Sheet to Learn More
