2 x CAN (High-/Low-Speed) D-SUB9, LIN
With up to two CAN High Speed channels, one CAN Low Speed channel, and a LIN channel, depending on the device variant, a wide variety of applications can be addressed by the USB-to-CAN V2 – in both the industrial and the automotive sectors.
(incl. D-SUB 9
|automotive||2 (2)||1||1 (3)||X||X (incl. D-SUB 9
(1) PC installation via slot board and internal USB cable
(2) One channel via software between ISO11898-2 and ISO11898-3 switchable
(3) LIN master / slave mode via software switchable

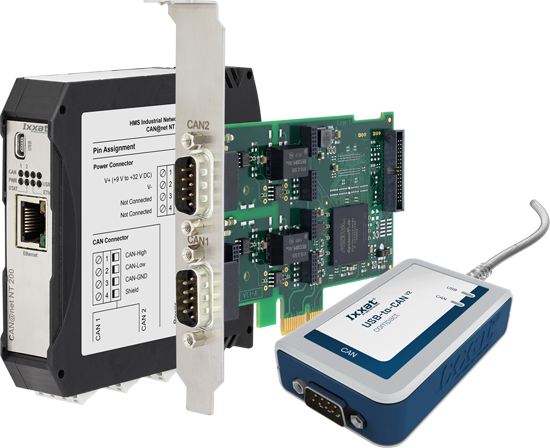

The USB-to-CAN V2 is available in different variants. In the USB-to-CAN V2 compact variant, the CAN connection is implemented as a D-SUB 9 plug or alternatively as an RJ45 connector. For devices with two CAN interfaces, these are implemented as RJ45 connectors. Adapter cables to sub-D9 plugs are included with the devices.
The IXXAT USB-to-CAN V2 embedded is designed without a housing, with or without a slot board and adapted USB cable for installation into a computer.
Additional options include galvanically isolated CAN interfaces, bulk variants, and support for ISO 11898-3 low-speed CAN and LIN.
LIN communications are supported in either LIN master or LIN slave mode. As LIN slave, the interface responds automatically to master requests it receives. The response data is updated through the PC API using a buffer. In master mode, the master calls are processed by the PC application. Incoming LIN messages are forwarded to the application with a timestamp, master request, response, and status information.
By using powerful hardware and connecting over USB 2.0 Hi-Speed (480 MBit/sec), the USB-to-CAN V2 interfaces achieve very high data throughput with minimum latency and low power consumption. This allows them to provide the reliable, loss-free transmission and receipt of messages in CAN networks at high transmission rates and bus load. The messages are also timestamped and can be filtered and buffered directly in the USB-to-CAN V2.
Due to its extremely interesting price and compact size, the USB-to-CAN V2 interface is ideal for use in series products and in combination with the canAnalyser for development, service, and maintenance tasks.
Its newly developed, rugged housing permits easy customer-specific adaptation (custom design / brand labeling).
|PC bus interface||USB 2.0, Hi-Speed|
|CAN controller||Internal; CAN 2.0 A/B|
|CAN baudrates||10 kBit/s ... 1 Mbit/s|
|CAN high-speed transceiver||TI SN65HVD251D|
|CAN low-speed transceiver (1)||TJA1055T|
|LIN transceiver (1)||TJA1020|
|LIN protocol (1)||V1.3 and V2.0|
|LIN baudrate (1)||max. 20 kBaud|
|Galvanic isolation||1000 VDC for 1 sec
500 VAC for 1 min.
|Power supply||5 V, max. 500 mA via USB port|
|Temperature range||-20°C ... 70°C|
|Fieldbus connection||according to CiA 303-1|
|Certification||CE, EN 55022:2010, EN61000-6-1:2007|
(1) only available in USB-to-CAN V2 automotive
