CAN-IB100/PCIe
Passive CAN Interface for PCI Express
1-4 x CAN (High-/Low-Speed)

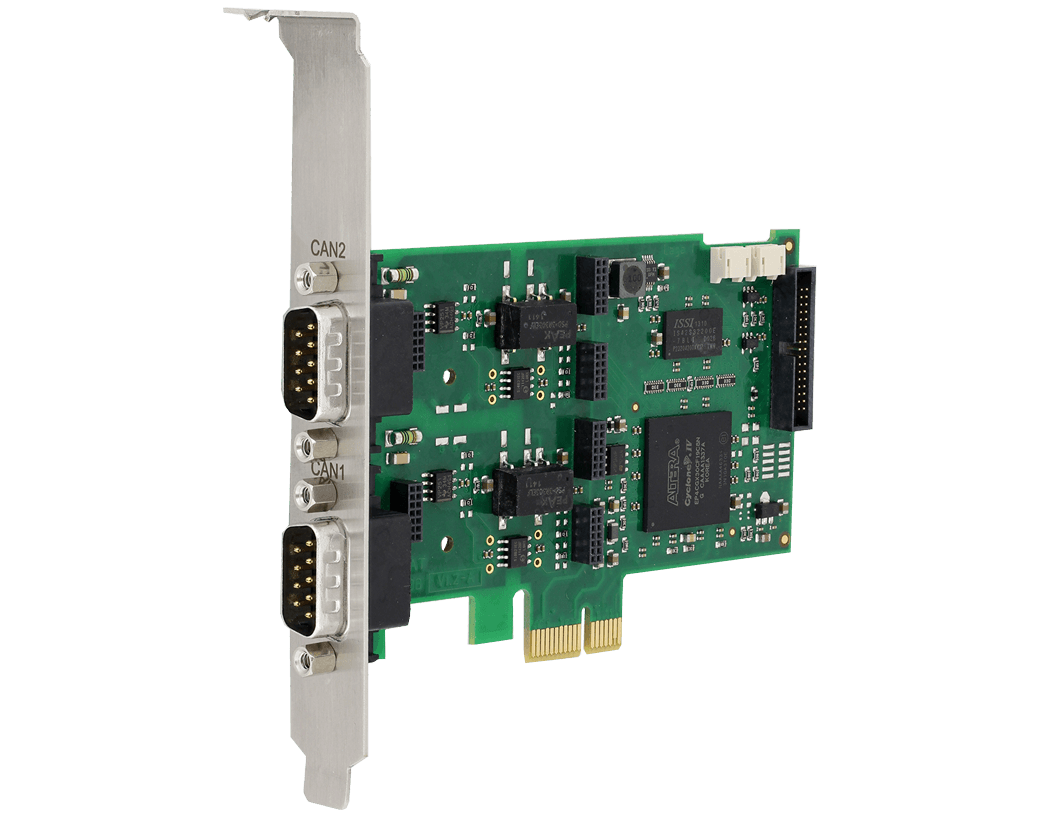

With the CAN-IB100/PCIe HMS offers an interface board based on a modern and highly modular concept. The interface is available with a standard or a low-profile slot bracket.
FEATURES AND BENEFITS
- Economically priced passive board (no microprocessor on board)
- Easy expandable via field bus expansion and expansion board
- Up to four CAN channels (High-/Low-Speed optional switchable)
- Available as standard and low-profile version
- Optional galvanic isolation of the CAN interface
- Uniform driver packages support all IXXAT CAN and CAN-FD interfaces and allow easy change of the PC interface type
- Powerful programming interface for Windows "VCI" as well as "ECI" for Linux, QNX, RTX, INtime and VxWorks
VERSIONS
The CAN-IB100/PCIe is available with up to four CAN channels and can be delivered with galvanic isolated interfaces. For use in the automotive field the high-speed CAN channels can optionally be switched to low-speed CAN via software. Multiple CAN cards can be installed within one PC if more than four CAN channels are required.
Furthermore, the modular architecture of the interface card enables the easy extension with customer specific interfaces via piggyback modules.
TECHNICAL SPECIFICATIONS
PC bus interface |
PCI express (V1.1) |
PC address range |
Plug & Play |
Interrupts |
Plug & Play |
CAN interface |
1, 2 or 4 CAN interfaces; CAN 2.0 A/B; Sub-D9 plug according to CiA 303-1
Optional: CAN Low-Speed (switchable via software between CAN High-Speed and Low-Speed)
Optional: Galvanic isolation (1 kV, 1 sec.) |
Power supply |
3.3 V DC, 350 mA typ. |
Temperature range |
0 ºC ... +70 ºC |
Certification |
CE, FCC |
Size |
Approx. 65 x 105 mm (available as standard and low-profile version) |
Order numbers
Standard Slot Bracket Version
CAN
ports |
Galv.
iso. |
Order numbers |
Optional expansions |
Additional information |
1 |
- |
1.01.0231.11000 |
|
|
1 |
X |
1.01.0231.12001 |
1 x 1.01.0241.20001
Low Speed CAN Fieldbus Expansion with galv. iso. |
|
2 |
- |
1.01.0231.21000 |
|
|
2 |
X |
1.01.0231.22001 |
1-2 x 1.01.0241.20001
Low Speed CAN Fieldbus Expansion with galv. iso. |
|
4 |
X |
1.01.0231.22001
+ 1.01.0242.22000
Multi CAN Expansion |
|
Two CAN ports on each SUB-D9 plug |
4 |
X |
1.01.0231.22001
+ 1.01.0240.22103
CAN Expansion Board |
1-4 x 1.01.0241.20001
Low Speed CAN Fieldbus Expansion with galv. iso. |
Two slot bracket ports required |
Low Profile Slot Bracket Version
CAN
ports |
Galv.
iso. |
Order numbers |
Optional expansions |
Additional information |
1 |
X |
1.01.0232.12001 |
1 x 1.01.0241.20001
Low Speed CAN Fieldbus Expansion with galv. iso. |
|
2 |
X |
1.01.0232.22001 |
1-2 x 1.01.0241.20001
Low Speed CAN Fieldbus Expansion with galv. iso. |
Two slot bracket ports required |
4 |
X |
1.01.0232.22001
+ 1.01.0242.00001
Multi CAN Expansion |
|
Two CAN ports on each SUB-D9 plug
Two slot bracket ports required |
4 |
X |
1.01.0232.22001
+ 1.01.0240.22203
CAN Expansion Board |
1-4 x 1.01.0241.20001
Low Speed CAN Fieldbus Expansion with galv. iso. |
Four slot bracket ports required |
