Introduction

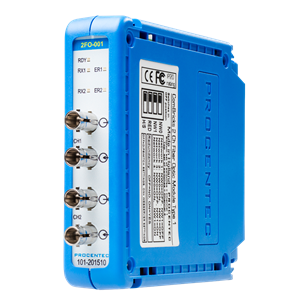

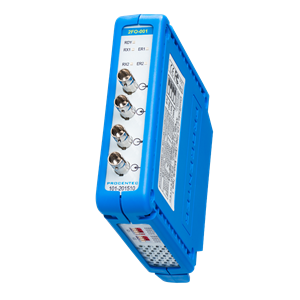

The ComBricks FO Ring SM module contains diagnostic LEDs which indicates the detection of a low level on the optics. Just like any other communication module, the channels are connect directly to the ProfiTrace OE core in the Head Station. An advanced email functionality will alert you when faults like low level or broken ring arise. Because busmonitor data is directly available in the web server, it allows technicians to optimal maintain a PROFIBUS installation.

ComBricks FO Ring SM can be placed side by side with repeater modules allowing spur line diagnostics. It can also easily be used as a fully dedicated fiber optic modules mixed with copper segments. The advanced 12 Mbps core of the fiber optic module can be cascaded unlimited with other fiber modules.

UL-listed

This product is UL-listed. Read more about UL-certification.

Technical specifications

Characteristics fiber optics

• 2 fiber optic channels (single mode)
• Max. cable length 30 km
• Ring, point-to-point and line topologies
• 4 ST/BFOC-connectors
• Single mode cable G9 / 125 (OS1) – 1310 nm
• Ring redundancy (switchable)
• Unlimited cascading
• Optical budget: 17dB
• Optical loss: 0,4dB per km

ComBricks characteristics

• Warning at low fiber optic signal levels
• Email notifications in case of certain events

Protocol

• Transparent for all PROFIBUS protocols
• 9,6 kbps – 12 Mbps (automatic baudrate detection)
• No PROFIBUS address needed
• Transmission speed detection: Auto detect (< 10 s detection and 50 s time out)

Backplane

• 4 networks selectable with DIP-switches
• 10 modules (in the first 10 slots)
• Power supply: provided through the backplane
• Compatible backplane units: 101-200011, 101-200012, 101-200023, 101-200024, 101-200027

Others

• Dimensions (LxWxH): 115 x 100 x 25 mm (without backplane)
• Weight: 122 g

Downloads

Below you can find all available downloads for this product.
