Features

• Feed forward control

• Speed control / Droop control (kW and position) / Baseload

• Level control (pond or tail)

• Gate limit

• Remote analog setpoints for speed, level, and power

• Selectable start mode (auto/manual)

• Brake permissive logic

• Selectable actuator outputs (4–20mA/0–200mA/0–20mA)

• Dual speed inputs

• Creep detection

• Local/remote control

• Generator breaker logic

• Level switches for speed, gate position, and load

• Overspeed test logic

Field-configurable

• Start/Stop/Unload routines

• Level control (pond or tail)

• Baseload control

• LINKnet HT® expansion capability

• Speed/Load/Gate switches

• Brake permissive logic

• Gate limit

• Breaker open command

• Trip and Alarm

• Serial port communications (RS-232 or RS-422)

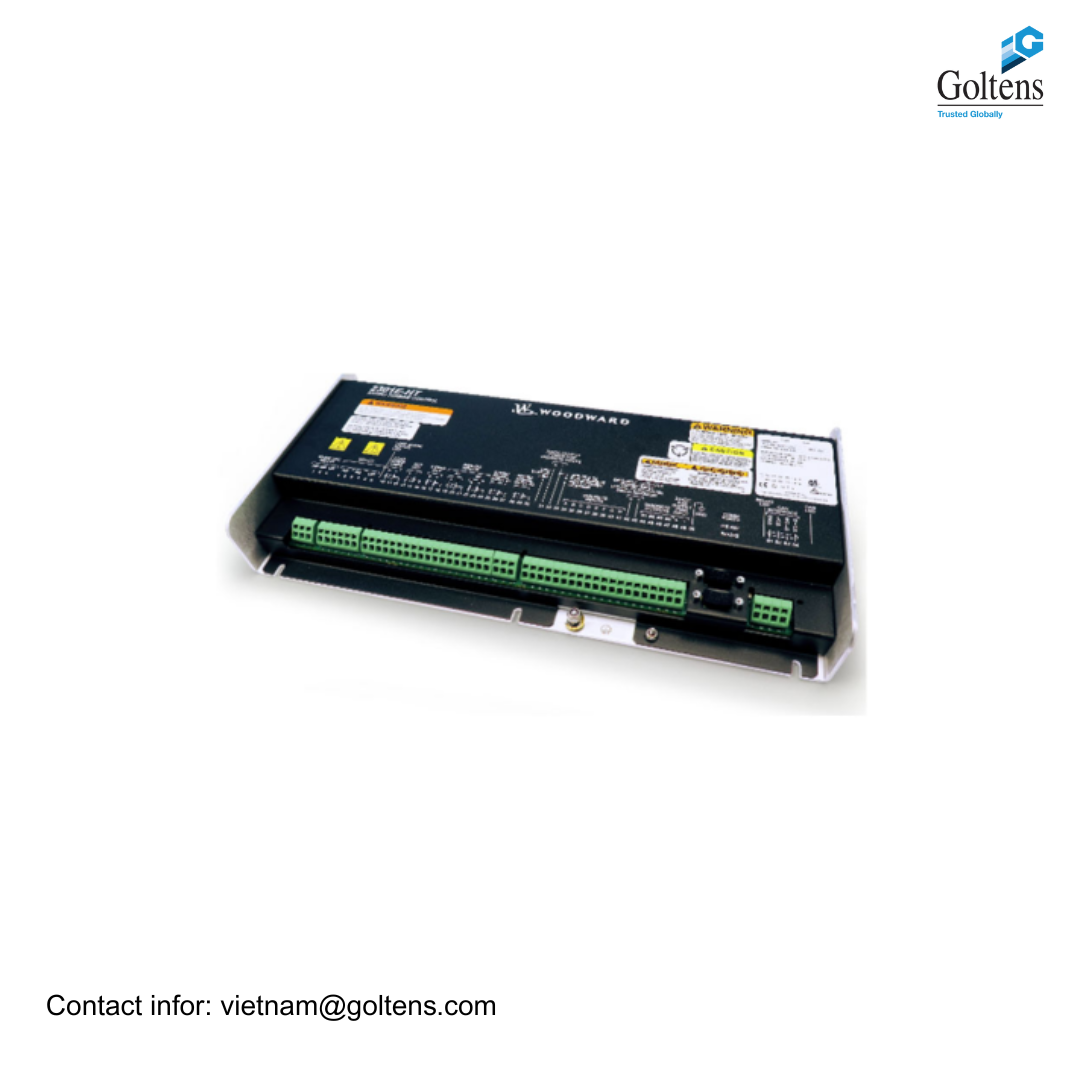

The 2301E-HT includes:

• 1 Actuator driver, 4–20 mA, 0–20 mA, 0–200 mA

• 2 MPU speed sensors

• 1 Configurable analog output

• 2 Configurable analog inputs

• 8 Discrete (switch) inputs – 5 fixed, 3 configurable

• 4 Discrete (relay driver) outputs – 1 fixed, 3 configurable

• RS-232 communication port: Modbus® RTU or service/configuration

• RS-422 communication port: Modbus RTU

• CAN communication port: LINKnet HT® I/O expansion
