• 5G, 2.5 mm, 5–2000 Hz, 3 h min/axis, 90 min dwells
  MS 810C, M514.2, Curve J (Mod)

• Vibration, Random, RV2
  0.1 G²/Hz, 10–2000 Hz, 3 h/axis, 12.8 Grms
  MS202F, Method 214A, Test Condition D

• Shock, MS1
  40 G, 11ms sawtooth Pulse
  US MIL-STD-810C, M516.2, PI

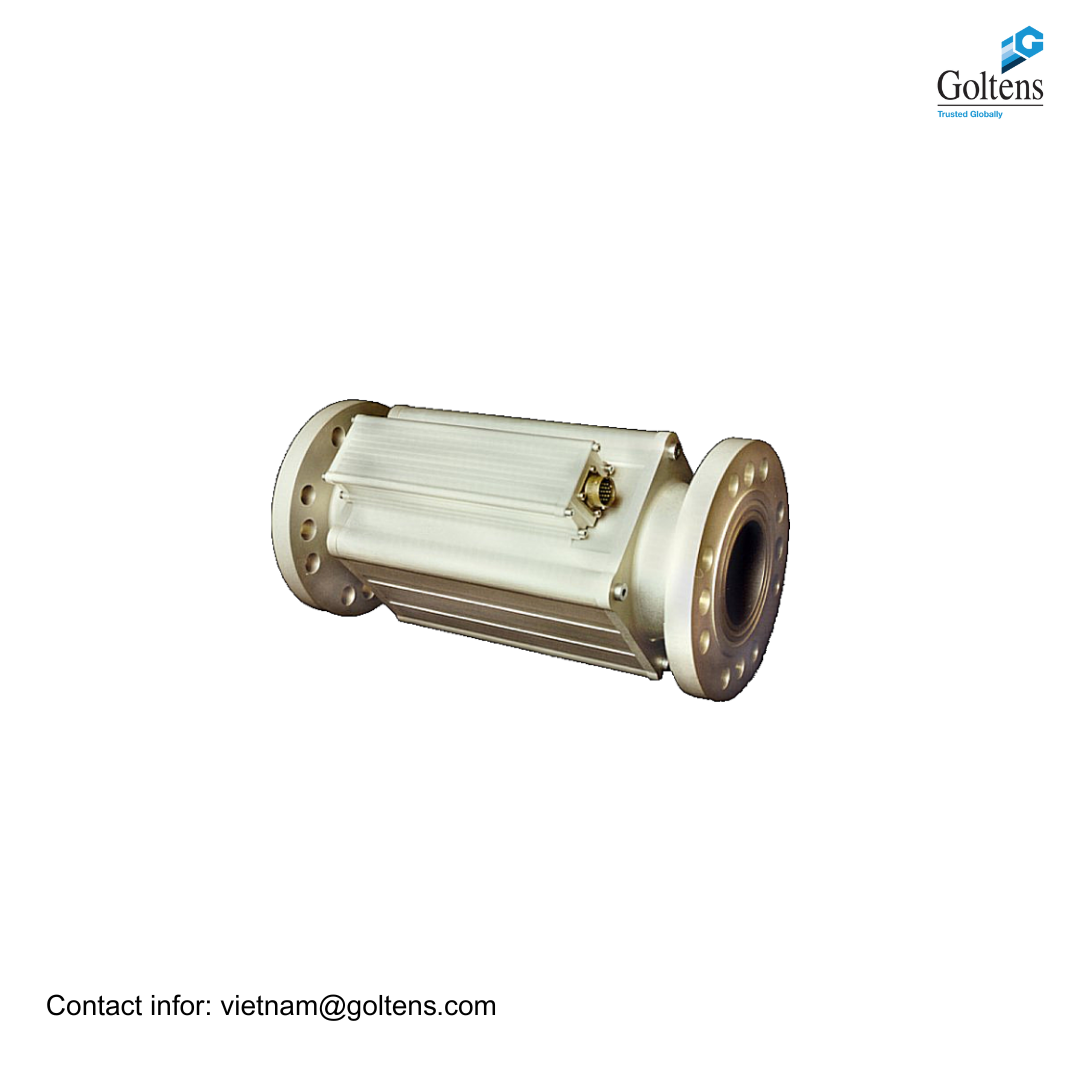

TecJet™ 50 Specifications

• Weight: 14.5 kg (32.0 lb)

• Power Supply Rating: 18–32 Vdc

• Power Consumption: 15 W and 40 W peak

• Ambient Temperature: –25 to +85 °C (–13 to +185 °F)

• Storage Temperature: –40 to +105 °C (–40 to +221 °F)

Pressure Range:

• Low Pressure TecJet: Up to 150 mbar with a measuring range of 180 mbar

• High Pressure TecJet: Up to 450 mbar with a measuring range of 500 mbar

Flow Capacity: See next section
Accuracy: Dependent upon gas pressure ≥2<P<15%
Response Time: < 80 ms (10–90% opening, @24 V)
Resolution: See Chapter 3, Parameters Menu/Flow Input Window

Vibration, Swept Sine:
5 G, 2.5 mm, 5–2000 Hz, 3 h min/axis, 90 min dwells

Vibration, Random:
0.1 G²/Hz, 10–2000 Hz, 3 h/axis, 12.8 Grms

Shock:
40 G, 11 ms sawtooth pulse

Input Signal (flow request):

• CAN 5 V, CAN 24 V

• Analog 0–5 Vdc (impedance 40 kΩ) *

• PWM 12 bit resolution (impedance 3 kΩ) **

• Double PWM 6-bit resolution *

* 0–100% flow = 0.2–4.8 Vdc (other values programmable)
** 0–100% flow = 5–95% duty (other values programmable) has to be connected to open collector output frequency:
min. 75 Hz / nom. 128 Hz / max. 150 Hz

EMC (Electromagnetic Compatibility):

• EN 61000-6-2 (Immunity)

• EN 61000-6-4 (Emissions)
  [See Chapter 2, Electromagnetic Compatibility]

• Alternator load dump, ISO 7637-2, Test pulse 5,
  Ip = 8 A, Rs = 3 Ω

• ISO 11452-2, 100 V/m, Class A, Region 1

Gas Filter in the Gas Flow:
Maximum mesh size 50 µm
