Programming

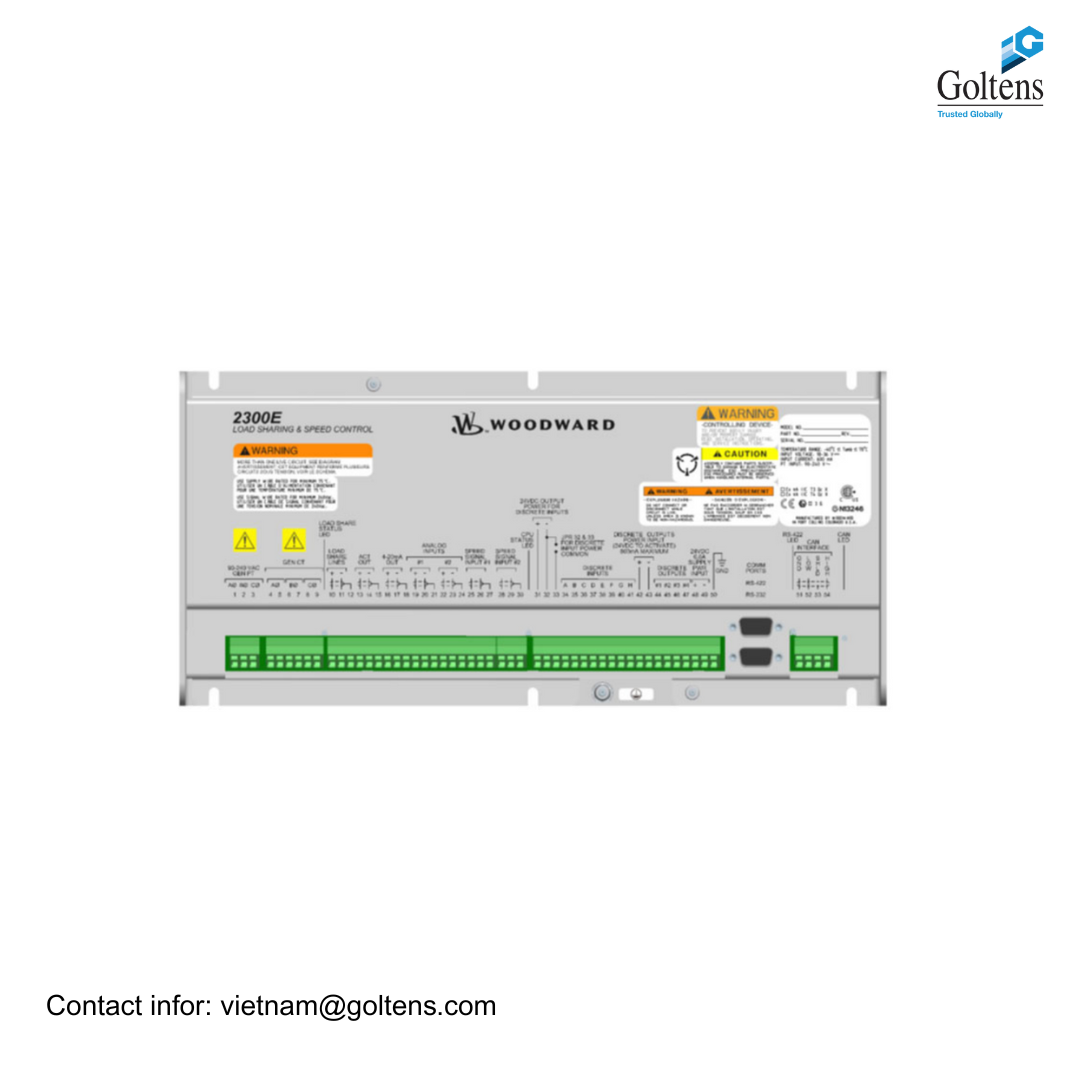

Woodward GAP™ Software is used to program the 2300E. Specialized functions are programmed to meet the specific needs for speed control, load management, process control, unit sequencing, and protective monitoring. If desired, the 2300E can be programmed to handle supervisory functions rather than individual unit control.

Communications

Two 9-pin sub D connectors are available to allow RS-232 and RS-422 serial communications with other systems at baud rates up to 115,200 BPS. The RS-422 port is used to interface with the plant DCS, an operator HMI, or printers and data loggers. The port’s Modbus® communications characteristics are defined in the customized application program.

In addition, the RS-232 port can be used to configure and service the controller by use of the Woodward Control Assistant software or Woodward ToolKit software. These software programs allow users to set and adjust all application-based parameters, plus upload and download configurations to and from the control.

Key Highlights:

• Versatile programming for reciprocating engine, steam, or gas turbine applications

• Digital load sharing and speed control

• Programmable using Woodward GAP™ software

• 2 serial ports, RS-232 and RS-422 serial communications

• Optional Modbus® serial communications

• ToolKit service tool software available for programming an HMI (human machine interface)
