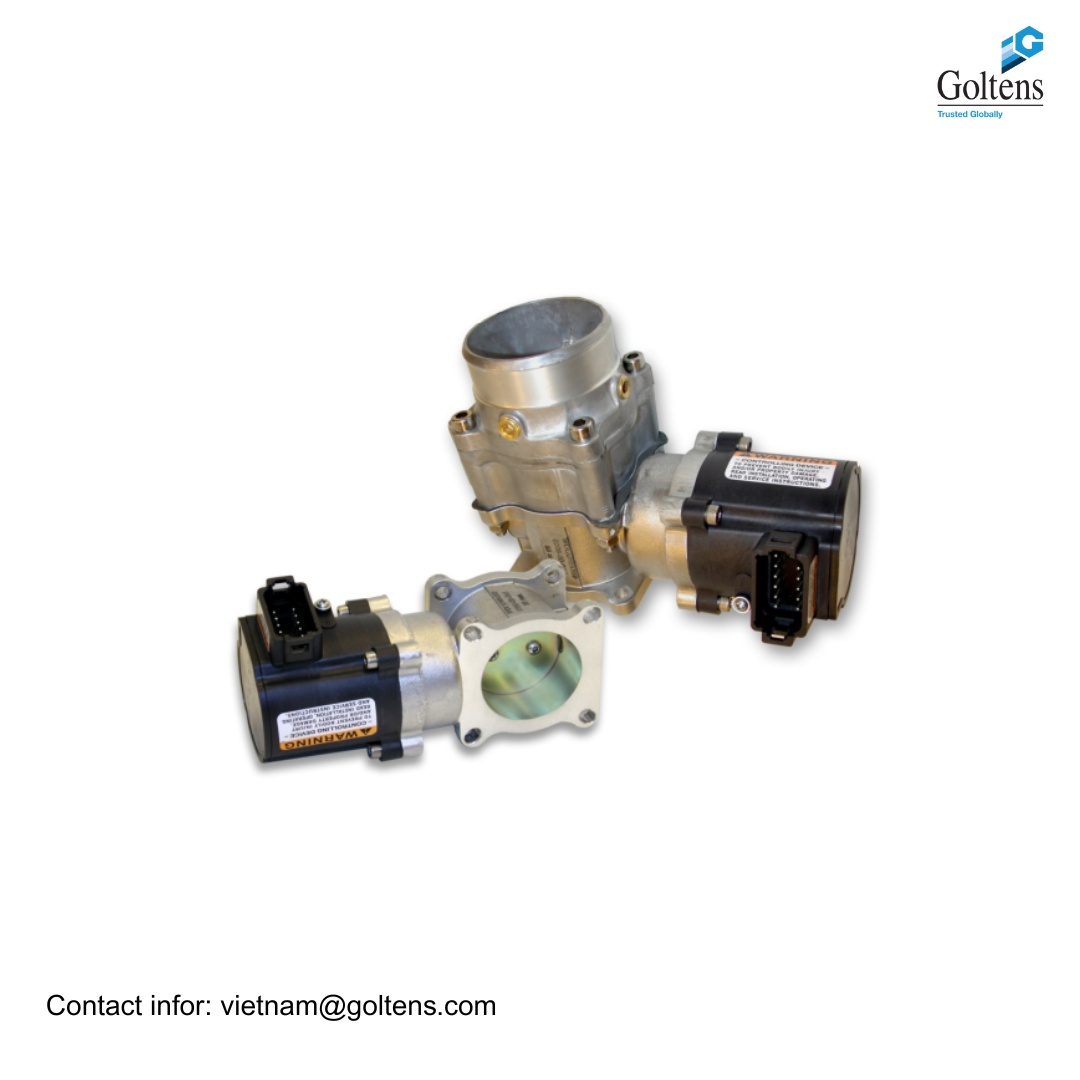

Specifications
Mass/Weight
425 g (15 oz)

Control Characteristics
Engine Type
2-cycle or 4-cycle gasoline, diesel, or gaseous fuel
Actuator Torque
High-efficiency torque motor delivers 0.34 N·m (0.25 lb·ft) (standard model) over 60° travel range to operate fuel or air control

Environment
Ambient Operating Temperature
–40 to +105 °C (–40 to +221 °F)
Storage Temperature
–40 to +125 °C (–40 to +257 °F)
Humidity
US MIL-STD 810E, Method 507.3, Procedure III
Salt Spray
US MIL-STD 810E, Method 509.3, Procedure I
Shock
MS1-40G 11ms sawtooth
Vibration
Random: 0.3 G²/Hz, 10–2000 Hz (22.1Grms) 3 h/axis
Sine: 5 G 2.5 mm peak-to-peak, 5–2000 Hz, 3 h/axis, 90 min dwells, 1 octave/min
Drop
SAE J1211, Paragraph 4.8.3 (modified)
Thermal Shock
SAE J1455, Paragraph 4.1.3.2
Ingress Protection
IP56 per EN60529
Inlet Pressure
Sealed shaft bearings: 2 bar (29 psi) gage
Standard shaft bearings: 0.068 bar (1 psi) gage

Regulatory Compliance
Note—Refer to L-Series control manual (26237, 26250 or 26251) for actuator compliance

Compliance with the following European Directives or standards does not qualify this product for application of the CE Marking:

Pressure Equipment Directive:
Exempt per Article 1-3.10

Reliability and Quality Goals
The L-Series control system has a reliability target of 17 500 hours MTBF. It also has a quality goal of less than 25 PPM when measured out-of-the-box defects. This quality goal is a target based on continuous improvement.
