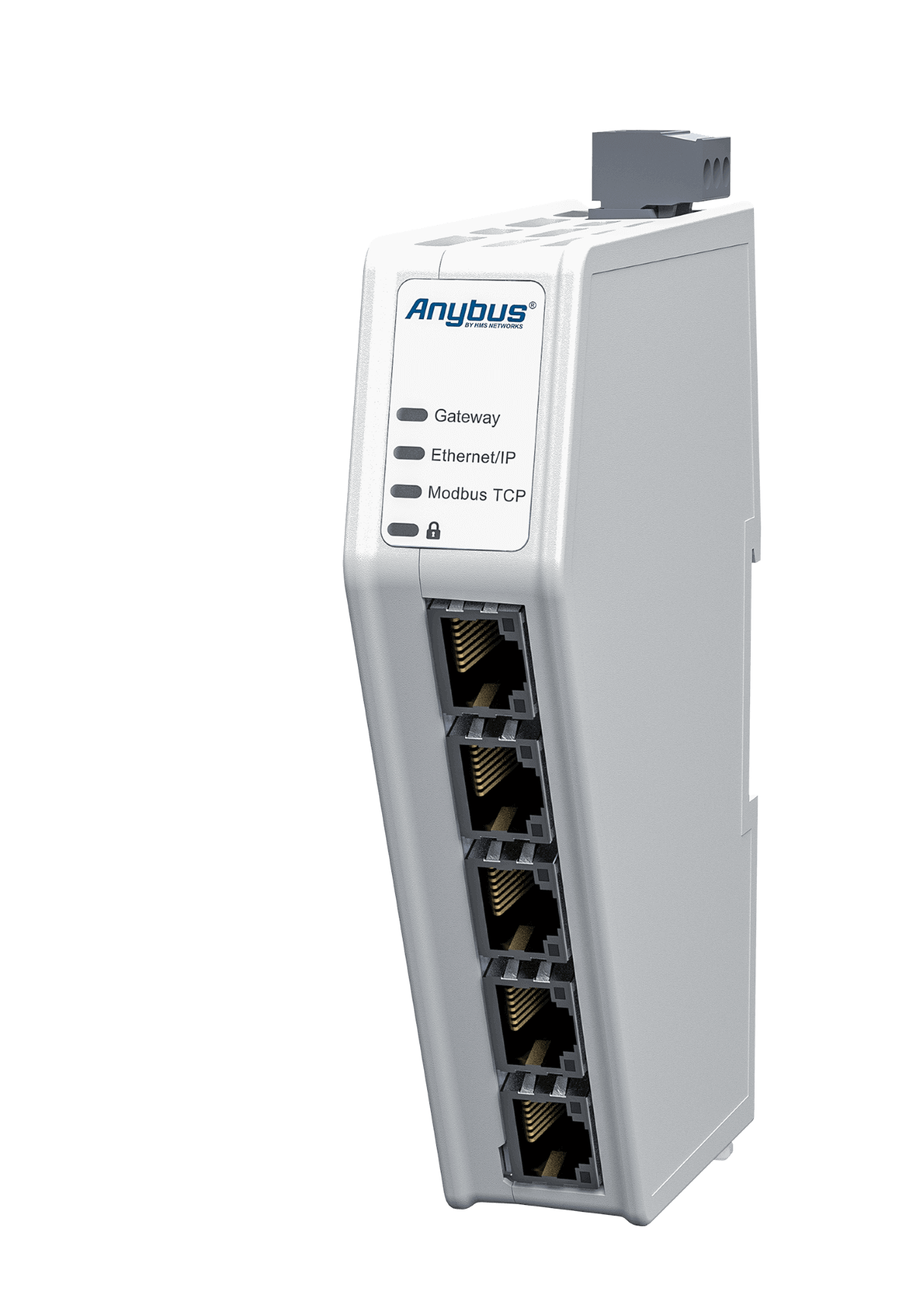

Anybus Communicator - EtherNet/IP adapter - Modbus TCP server

 Replace for: AB7632

The Anybus Communicator EtherNet/IP adapter – Modbus TCP server is an industrial protocol gateway that allows you to seamlessly transfer data between PLC control systems over EtherNet/IP and Modbus TCP networks.

Anybus Communicators are designed to ensure reliable, secure, and high-speed data transfer between different industrial Ethernet and Fieldbus networks. Very easy to install and deploy, the stand-alone gateways enable transparent data exchange between PLCs allowing you to both bridge and integrate legacy equipment into modern high-performance networks with only minimal changes to the software.

Anybus Communicators are built using the award-winning and proven Anybus NP40 industrial network processor providing network conformance, high performance, and reliability. When connecting between PLCs on different networks, extremely fast data cycling is enabled with data transfer of up to 1500 bytes in each direction, meeting most current control application needs as well as supporting future demands.

Quick installation is ensured thanks to the intuitive configuration, easy-to-understand documentation, and smart hardware and housing design.

Support Pages

Features & Benefits

Use Cases

Ethernet/IP Features

Modbus TCP Features

Web UI

Technical Specification

    Excellent performance

    • Instant data transfer The time it takes to transfer data between two PLCs consists of the cycle time on the first network plus the cycle time on the second network. Internal data transfer in the Communicators is negligible as it’s in line with the natural variation of the network cycle times (jitter).
    • Hardware-accelerated endian conversion (byte swap) - The Communicators can change the data representation (endianness) through a hardware-accelerated endian conversion to ensure data is presented correctly in each PLC. You can even convert different parts of the data area in different ways to handle different data types. It has no impact on performance, offloads the PLC of the data conversion task, and simplifies PLC programming.



    Easy to Use

    • Dedicated ethernet configuration port - no special cables required.
    • Intuitive web-based drag and drop configuration interface - no need to install any additional software.
    • Forward-facing ports make it easy to connect cables and the slim form factor saves space on the DIN rail.
    • Troubleshoot problems with powerful diagnostics including live data monitor, status screen, and support package.



    Latest Security Features

    • Secure boot functionality to detect tampering with firmware and resist attacks and infection from malware.
    • Security switch which locks your configuration and prevents any unauthorized access.



    Designed for industrial environments

    • Robust compact housing.
    • Industrial components are tested and certified according to CE and UL.
    • Wide temperate range, -25°C to 70°C.
    • DIN-rail mounting to enable installation close to connected devices, reducing the amount of wiring.

    Ethernet Ip-Modbus-01

    • EtherNet/IP adapter mode
    • Transfer up to 1 448 bytes to and from EtherNet/IP (2896 bytes total)
    • Class 1 and Class 3 connection for process data
    • Device Level Ring (beacon mode)
    • Quick Connect class B
    • Dual RJ45 Ethernet ports with 10/100 Mbit full duplex
    • Daisy chaining with integrated switch
    • Modbus TCP server
    • Transfer up to 1 500 bytes to and from Modbus TCP (3 000 bytes total)
    • 4 connections
    • Function codes 01-06, 15-16, 23, 43/14
    • Dual RJ45 Ethernet ports with 10/100 Mbit full duplex
    • Daisy chaining with integrated switch

     https://youtu.be/-YRbSRzbMNk

    GENERAL

    Dimensions (L x W x H) with serial and power connector 98 x 27 x 144 mm
    3.85 x 1.06 x 5,67 in
    Weight 150 grams, 0.33 lb
    Buttons and switches Reset button and security switch
    LEDs Gateway, Network 1 & Network 2
    IP rating IP20
    Housing material PC ABS, UL 94 VO
    Mounting DIN rail (35 * 7,5/15)



    ENVIRONMENT

    Operating temperature -25 to 70° C, -13 to 158° F
    Storage temperature -40 to 85° C, -40 to 185° F
    Relative humidity 0-95% non condensing
    Installation altitude Up to 2 000 m

    POWER

    Input voltage 12 - 30 VDC
    Current consumption Typical: 160 mA @ 24V Max: 400 mA @ 12V
    Power connector 3-pin plug with screw terminal
    Protection Reverse voltage protection and short circuit protection

    ETHERNET PORTS

    Ports 2+2 x Ethernet
    Isolation Galvanic isolation
    Bitrate 10/100 Mbit full duplex
    Connector RJ45
    Switch. Dual port cut-through switch

    ETHERNET/IP

    Mode Adapter (slave)
    Messages Implicit and explicit
    Max no of scanner connections 1 input/output (exclusive owner)
    3 listen only or input only
    Input data size 1 448 bytes (with large forward open)
    Output data size 1 448 bytes (with large forward open)
    Network redundancy  Device Level Ring (DLR), beacon-based
    Quick connect Class B
    Certification Pending
    Minimum cycle time 1 ms for class 1 connections, 100 ms for class 3 connections
    EDS File Available

    MODBUS TCP

    Mode Server
    Max number of connections  4
    Input data size 1 500 bytes
    Output data size 1 500 bytes

    CERTIFICATIONS AND STANDARDS

    UL CULUSfile number E214107
    CE 2014/30/EU
    KC R-R-ABJ-Communicator
    EMC

    EN 61000-6-2
    EN 61000-4-2
    EN 61000-4-3
    EN 61000-4-4
    EN 61000-4-5
    EN 61000-4-6
    EN 61000-6-4
    EN 55032

    Environment

    IEC 60068-2-1 Ab
    IEC 60068-2-2 Bb
    IEC 60068-2-1 Ab
    IEC 60068-2-2 Bb
    IEC 60068-2-14 Nb
    IEC 60068-2-30 Db
    IEC 60068-2-78 Cab
    IEC 60068-2-78 Cab

    Vibration and shock

    IEC 60068-2-27
    IEC 60068-2-6

    Waste certification WEE

    CONFIGURATION

    Configuration software Web based configuration
    Configuration ports Dedicated 10/100 Mbit RJ45 Ethernet configuration port and Ethernet ports



    SECURITY

    Secure boot Ensures software authenticity
    Security switch Physical switch that enable/disable access to the web based configuration interface



    PRODUCT PACKAGING

    Content Gateway, power connector, start-up guide, compliance information sheet
    Box material Cardboard



    MEAN TIME BETWEEN FAILURE

    MTBF > 1500000 h, Telcordia Method I Case 3 at 30° C
