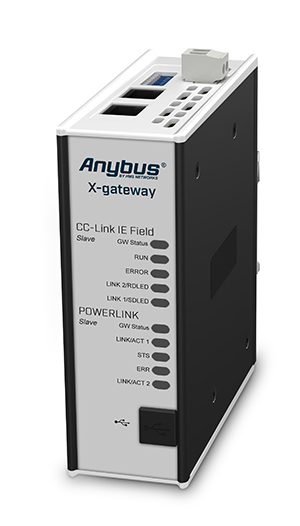

The Anybus X-gateway allows you to seamlessly inter-connect PLC control systems and their connected devices between CC-Link IE Field and POWERLINK networks.

FAST COPYING OF I/O DATA

The X-gateways primary function is with the fast transfer of cyclic I/O data between the two networks. This offloads your PLC from working with additional calculations. The gateway acts as a Slave/Device on both networks. The data transmission is completely transparent with a maximum data capacity of 254 bytes in each direction.

EASY CONFIGURATION - NO PROGRAMMING REQUIRED!

The connection between the two networks is quickly set up in the Anybus Configuration Manager software, included with the X-gateway. No programming skills are needed to set up the X-gateway. As factory default the X-gateways have a pre-defined I/O size of 20 bytes I/O.

• Fast copying of cyclic I/O data between the two networks (10-15 ms)
• Supports up to a maximum of 512 bytes of PDO + SDO Input and Output data in each direction
• Supports up to a maximum of 254 bytes of PDO Input and Output data in each direction
• Fast, dynamic transfer of fieldbus data to e.g. SCADA/HMI/Enterprise level systems based on Microsoft Windows, via the included Anybus OPC server
• Optional control status information added to I/O data for diagnostic purposes
• Robust stand-alone housing for use in harsh industrial environments
• Global free technical support and consultancy

CC-Link IE Field Slave settings can be made either via on-board switches, or by importing the provided .CSP file into engineering tool of the controlling PLC.

• CC-Link IE Field interface of the X-gateway is conformance tested and approved by CLPA
• CC-Link Specification (Profile), publication BAP-05028-B
• Acts as a CC-Link IE Field Network Intelligent Device Station
• Max 512 bytes Input and 512 bytes I/O data
• On CC-Link IE Field: Max of 832 I/O points and 204 words Input and 832 I/O points and 204 words Output
• Baudrate 1 Gbit/s fixed operation
• TCP/IP settings configurable with web-page, Configuration Tool, DHCP or ARP
• CC-Link IE Field station setting via on-board switches
• 2x RJ-45 ports available simultaneously

POWERLINK Device/Slave settings can be made either via the built-in web interface, or by importing the provided .XDD file into engineering tool of the controlling PLC.

• Max 254 bytes of Input and 254 bytes of Output data
• Baud rate 100 Mbit/s Isochronous
• Supports ring redundancy
• POWERLINK uplink configuration via .XDD file
• Dual port hub
• Multiplexing
• Poll Response Chaining
• Supports segmented SDO transfer
• Dual RJ-45 ports available simultaneously
