Anybus X-gateway – CC-Link IE Field Slave - EtherNet/IP Adapter - AB7956

Giá bán: Liên hệ

Mã sản phẩm: AB7956-F

Thương hiệu: Anybus - HMS Industrial Networks

Tình trạng: Còn hàng

Ordering information

Order Code  AB7956
Included components

Gateway
Quick start documentation
USB configuration cable

Tư vấnhotline0965746247

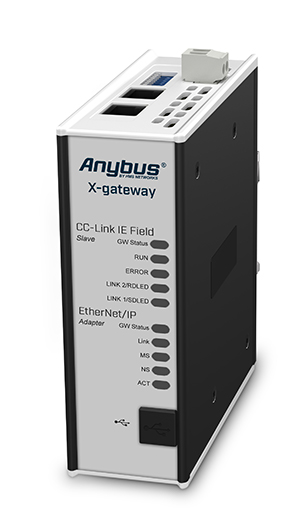

Anybus X-gateway – CC-Link IE Field Slave - EtherNet/IP Adapter - AB7956

The Anybus X-gateway allows you to seamlessly inter-connect PLC control systems and their connected devices between CC-Link IE Field and EtherNet/IP networks.

FAST COPYING OF I/O DATA

The X-gateways primary function is with the fast transfer of cyclic I/O data between the two networks. This offloads your PLC from working with additional calculations. The gateway acts as a Slave/Adapter on both networks. The data transmission is completely transparent with a maximum data capacity of 512 bytes in each direction.

EASY CONFIGURATION - NO PROGRAMMING REQUIRED!

The connection between the two networks is quickly set up in the Anybus Configuration Manager software, included with the X-gateway. No programming skills are needed to set up the X-gateway. As factory default the X-gateways have a pre-defined I/O size of 20 bytes I/O.

x-gateway-cfns-eips

Support Pages

Features and benefits

CC-Link IE Field interface

EtherNet/IP Adapter/Slave interface

Technical Specifications

Features and benefits

  • Fast copying of cyclic I/O data between the two networks (10-15 ms)
  • Proven and tested with all PLC manufacturers
  • Supports up to a maximum of 512 bytes of Input and Output data in each direction
  • Possibility to build web pages displaying and controlling a factory floor process with data from the other connected network
  • Fast, dynamic transfer of fieldbus data to e.g. SCADA/HMI/Enterprise level systems based on Microsoft Windows, via the included Anybus OPC server
  • Optional control status information added to I/O data for diagnostic purposes
  • Robust stand-alone housing for use in harsh industrial environments
  • Global free technical support and consultancy

CC-Link IE Field interface

CC-Link IE Field Slave settings can be made either via on-board switches, or by importing the provided .CSP file into engineering tool of the controlling PLC.

  • CC-Link IE Field interface of the X-gateway is conformance tested and approved by CLPA
  • CC-Link Specification (Profile), publication BAP-05028-B
  • Acts as a CC-Link IE Field Network Intelligent Device Station
  • Max 512 bytes Input and 512 bytes I/O data
  • On CC-Link IE Field: Max of 832 I/O points and 204 words Input and 832 I/O points and 204 words Output
  • Baudrate 1 Gbit/s fixed operation
  • TCP/IP settings configurable with web-page, Configuration Tool, DHCP or ARP
  • CC-Link IE Field station setting via on-board switches
  • 2x RJ-45 ports available simultaneously

EtherNet/IP Adapter/Slave interface

EtherNet/IP adapter settings can be made either via the built-in web interface, or by importing the provided .EDS file into engineering tool of the controlling PLC.

    • EtherNet/IP CONFORMANCE TESTED™ by ODVA
    • EtherNet/IP Level 2 I/O Server CIP
    • 10/100Mbit operation in full or half-duplex
    • Max. 509 bytes Input and 505 bytes Output data
    • Device Level Ring (DLR) functionality available (announce-based ring participant)
    • Integrated FTP server provides easy file management using standard FTP clients.
    • Web server with dynamic data capability and Server Side Include (SSI) capability
    • Email client with dynamic data capability and Event-triggered email handling
    • Per-user security framework
    • Quality of Service (QoS) available
    • DNS Capability
    • TCP/IP settings via DHCP/ARP/Anybus IPconfig (HICP)
    • Integrated switch allowing for a daisy-chain topology
    • 2x RJ-45 EtherNet/IP ports available simultaneously

    TECHNICAL SPECIFICATIONS

    Dimensions (L•W•H)   114 x 44 x 127mm or 4,49 x 1,73 x 5,00"
    Weight 400g or 0,880 lbs
    Operating temperature -25 to +65 °C  or  -13 to +149 °F
    Storage temperature -40 to +85 °C  or  -40 to +185 °F
    Power supply 24 VDC +/- 20% via 2-pole 5.08 mm Phoenix pluggable screw connector
    Current consumption     max. 400mA (Typical 200mA)
    Enclosure material  Aluminium and plastic
    Installation position Vertical / Flat*
    Galvanic isolation YES, on both BUS/Ethernet side
    Mechanical rating IP20, NEMA rating 1
    Mounting DIN-rail (EN 50022 standard)
    I/O configuration via USB port with Anybus Configuration Manager software
    Certifications CE, CULUSRoHS



    Ordering information

    Order Code  AB7956
    Included components

    Gateway
    Quick start documentation
    USB configuration cable

    Power supply not included

    Configuration and Anybus OPC server software is available for download.
