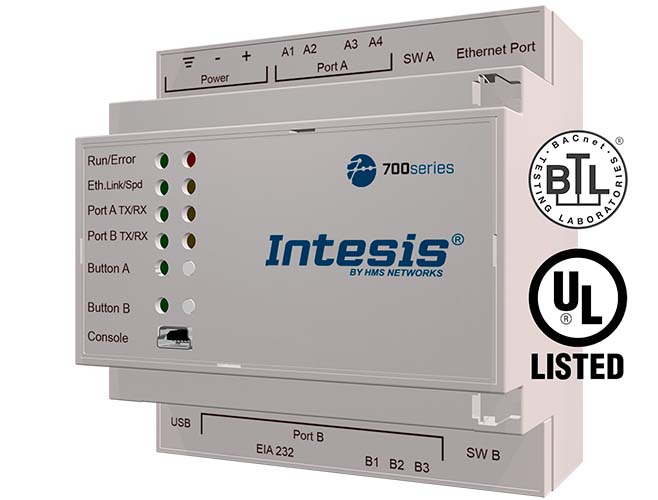

IN7004851000000 BACnet IP & MS/TP Client to Modbus TCP & RTU Server Application - Intesis
Aucontech Co Ltd
10 out of
10
BACnet IP & MS/TP Client to Modbus TCP & RTU Server Application

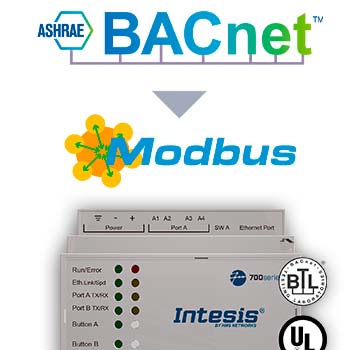

Integrate any BACnet MS/TP or BACnet IP server device, with a Modbus BMS or any Modbus TCP or Modbus RTU controller. The aim of this integration is to make accessible BACnet objects data and resources from a Modbus based control system or device, as if it was a part of the own Modbus system and vice-versa.
FEATURES
- UL Certified
- BTL Certified
- Support for up to 5 simultaneous Modbus TCP Clients
- Both Modbus RTU & Modbus TCP
- Both BACnet IP and MS/TP supported
- Possibility to scan for BACnet devices with BACnet Explorer
- Easy integration & updates with Intesis MAPS
Use Case
Integration of BACnet IP or BACnet MSTP devices into a Modbus TCP or Modbus RTU installation.
Description
This bidirectional gateway provides a straightforward and fast integration thanks to its unique onboard features.
Thanks to its support for both Modbus RTU and TCP, with the possibility to work together at the same time, a seamless integration with any Modbus BMS or controller it is guaranteed.
The configuration is carried out using the Intesis MAPS software. This one allows you to define your own settings for the device. Also, it will be able to download all the available project templates or to import any created/exported project template on your computer.
ORDER CODES:
| IN7004851000000 | Intesis Protocol Translator with Serial and IP support - 100 points |
| IN7004852500000 | Intesis Protocol Translator with Serial and IP support - 250 points |
| IN7004856000000 | Intesis Protocol Translator with Serial and IP support - 600 points |
| IN7004851K20000 | Intesis Protocol Translator with Serial and IP support - 1200 points |
| IN7004853K00000 | Intesis Protocol Translator with Serial and IP support - 3000 points |
