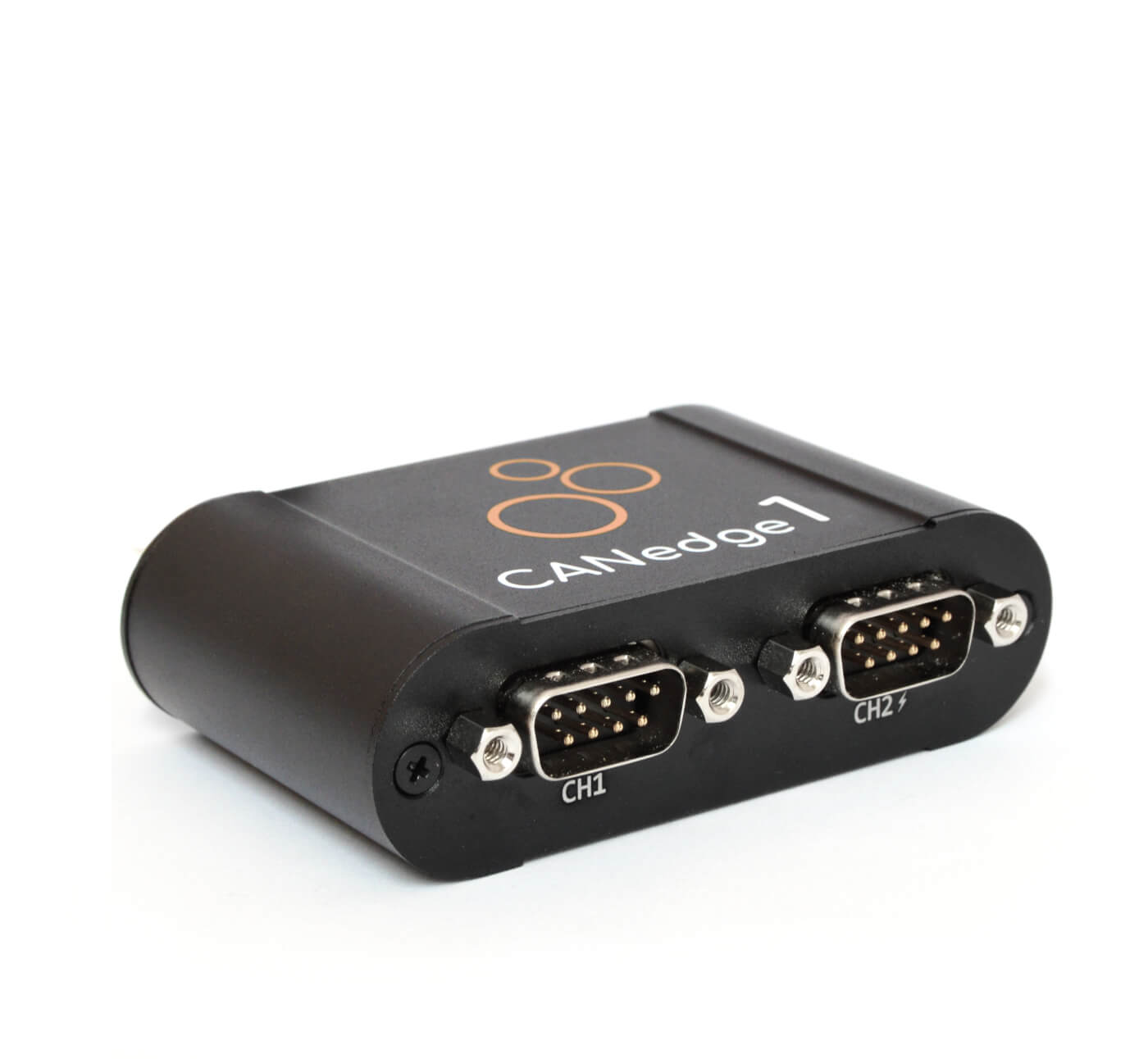

CANedge1: 2x CAN Bus Data Logger (SD + RTC)
The plug & play 2xCAN/LIN logger records timestamped CAN data (Classical/CAN FD) to the extractable 8 GB industrial SD card.
It's extremely easy-to-use: Simply power the device via your CAN bus connector to start logging raw CAN data. Extract the data and process it using 100% free open source software/API tools - incl. J1939/OBD2 DBC conversion & graphical plots.
The CANedge1 is ideal for monitoring CAN bus systems over long periods - e.g. for legal purposes, vehicle development, diagnostics, maintenance or research.
TECHNICAL SPECIFICATION
| GENERAL | |
|---|---|
| Functionality | Standalone data logger with SD card and 2xCAN/LIN channels (incl. CAN FD) |
| Firmware | Supports free firmware updates for adding features |
| Configuration | Configuration files based on the popular open source JSON schema concept |
| Software | Free open source editor tool for easy device configuration (offline/online version available) |
| Free open source asammdf software & API for editing, DBC converting & plotting MDF4 data | |
| Free open source C++ MDF4 converters - drag & drop log files to convert into e.g. CSV, ASC, PCAP | |
| Safety | CE, FCC, IC and RoHS certified (see the manual) |
| Tested for voltage transients (emissions/immunity), ISO 7637-2:2011, by TÜV SÜD (see the manual) | |
| Warranty | 1-year warranty |
| Support | Free, fast & high quality support |
| Origin | Denmark |
| CAN BUS | |
| Channels | 2 x CAN/CAN FD channels |
| Standard | ISO 11898: Compliant with CAN (up to 1 Mbit/s) and ISO & Bosch CAN FD (up to 5 Mbit/s) |
| Protocols | Log raw data from CAN based protocols (J1939, FMS, CANopen, NMEA 2000, OBD2, ...) |
| Identifiers | Compliant with CAN specifications 2.0A (11-Bit ID) and 2.0B (29-Bit ID) |
| Bit-Rate Auto-Detect | Bit rate can be auto-detected or set manually |
| Retransmission | Configurable retransmission of frames that have lost arbitration or been disturbed by errors |
| Transceiver Protection | ±16 kV HBM ESD, ±15 kV IEC ESD, ±70 V bus fault, short circuit |
| Common mode input voltage: ±30 V | |
| TXD dominant timeout (prevents network blocking in the event of a failure) | |
| LIN BUS | |
| Channels | 2 x LIN channels (Slaves) |
| Standard | Compliant with LIN 2.0 up to 20 Kbit/s ("enhanced" checksum format) |
| Transceiver Protection | ±8 kV HBM ESD, ±1.5 kV CDM, ±58 V bus fault |
| TXD dominant timeout (prevents network blocking in the event of a failure) | |
| DATA LOGGING | |
| SD Card | 8 GB extractable Class 10 industrial micro SD (SDHC) included (optional 32GB) - read at 80 MB/s |
| Parallel CAN/LIN | Record data from up to 2 x CAN channels + 2 x LIN channels, simultaneously |
| Real-Time Clock | Yes - CAN frames are date & timestamped with 50 microsecond resolution |
| The RTC can be configured to match local time zones (default: UTC) | |
| Log File Format | Log data in industry standard binary MDF4 (easily convert to e.g. CSV, ASC, pandas, MATLAB, ...) |
| Data Compression | Configurable embedded log file zipping (~50-80% size reduction) |
| Silent Mode | Configurable silent mode: Restricted (acknowledge only) or monitoring (zero transmission) |
| Filters | 128/64 regular/extended ID filters per channel (range, mask, acceptance, rejection, prescaling) |
| Transmit | Transmit lists of CAN frames per channel (single-shot/periodic) - e.g. for OBD2 requests |
| Cyclic Logging | Optional cyclic logging mode (oldest log file is deleted when SD card is full) |
| Advanced Triggers | Control signal lets you start/stop logging based on custom CAN IDs & data thresholds |
| CAN Heartbeat | Optionally transmit heartbeat CAN frame with device status, storage used & RTC time |
| File Split | Configurable log file split size (by size: 1-512 MB and/or by time period: 0-86400s) |
| Power Safe | 100% power safe data logging - no file corruption when disconnected |
| Unique Device ID | Each device has a globally unique ID ensuring unique log file naming |
| Data Encryption | Log files can be encrypted at rest on the SD card for security/GDPR/CCPA purposes |
| ELECTRICAL | |
| Input Supply | +7V to +32V DC via the Channel 1 DB9 (e.g. via CAN connector power pin) |
| Power Consumption | Extremely low (~1 W) - no risk of battery drainage |
| Protection | Reverse voltage protection on CAN-bus supply |
| Transient voltage event protection on supply lines | |
| MECHANICAL | |
| Enclosure & Weight | Compact aluminium enclosure: 52.5 x 81.4 x 24.5 mm (L x W x H), 100 grams |
| Connector | 2 x Standard D-sub 9 (DB9) connectors (OBD2/J1939 adaptors optional) |
| Pin-Out | See the product manual for the DB9 connector pin-outs |
| Configurable Power Out | Channel 2 can be configured to supply 5V to 1-3 external modules |
| LEDs | Logger status via 4 external LEDs: Power, CH1, CH2, Memory |
| Temperature | Operating temperature (parts): -25degC to +70degC |
| IP Rating | IP Rating 40 |
