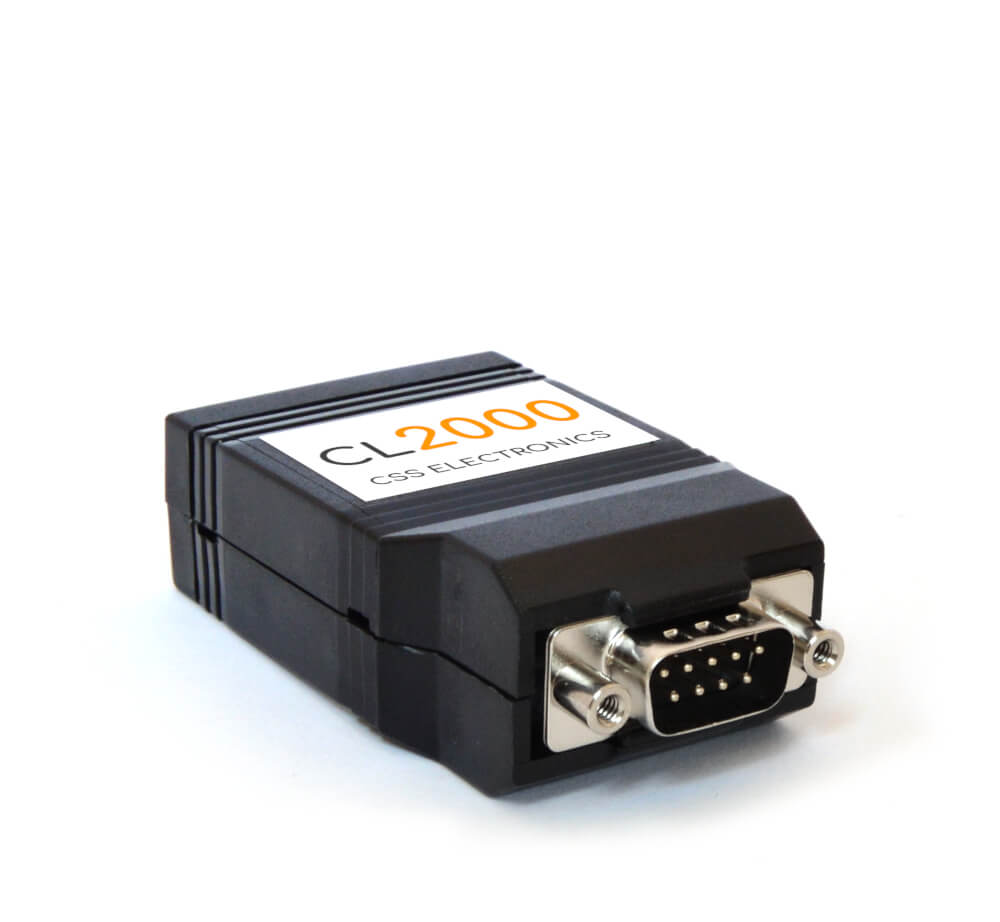

CL2000: CAN Bus Logger (+RTC)

Giá bán: Liên hệ

Mã sản phẩm: CL2000

Thương hiệu: CSS

Tình trạng: Còn hàng

Thôn tin đặt hàng:

Mã hàng: CL2000

Tư vấn hotline

0965746247

Trong 1 - 2 Giờ làm việc không bao gồm chủ nhật và ngày lễ

Đổi trả sản phẩm trong vòng 7 ngày nếu có lỗi từ nhà sản xuất

Hotline tư vấn0379 447 488

TÌM HIỂU THÊM

Mô tả

CL2000: CAN Bus Logger (+RTC)

The plug & play CL2000 CAN logger records CAN bus data to an 8 GB SD card and timestamps it with a real-time clock.

This CAN logger is ideal for vehicle fleet management (trucks, buses, harvesters, cars, …), prototype field testing, diagnostics or reverse engineering.

TECHNICAL SPECIFICATION

GENERAL
Functionality	Data logger and real-time CAN interface
LEDs	Logger status via three externally visible LEDs
Firmware	Supports free firmware updates for adding features
Software	Free CANvas software for configuration, streaming & conversion
Safety	CE, FCC, IC, RoHS certified
CAN BUS
Standard	Compliant with physical layer standard ISO 11898-2
Identifiers	Compliant with CAN specifications 2.0A (11-Bit ID) and 2.0B (29-Bit ID)
Bit Rate	Bit rates up to 1 Mbps (manually configured or automatically detected)
Bit-rate auto-detection	Yes
Protocol Support	Protocol independent (i.e. able to log J1939, CANopen, OBD2, ...)
Filters	Advanced message filtering on four configurable channels
Silent Mode	Yes (does not affect CAN-bus transmission)
Fail-Safes	The device does not terminate the CAN-bus internally
DATA LOGGING
SD Card	Replaceable 8 GB SD card (optional 32 GB)
Real-Time Clock	Yes (CAN messages are time-stamped with 1ms resolution)
Control Signal	Logging state (enabled/disabled) can be changed run-time using a CAN-bus control message
Heartbeat Signal	Supports heartbeat signal to periodically indicate logger status
Cyclic Logging	Supports cyclic logging mode (oldest log file is deleted when file system is full)
Down Sampling	CAN ID specific message down-sampling to reduce frequency of logged messages
Transmit	Transmit up to 20 customized CAN bus messages (e.g. for OBD2 queries)
File System	Standard FAT file system
SUPPLY
Power via CAN-bus	Power can be supplied from the CAN connector (log/stream) or via USB (data extraction)
Via CAN bus	Power supplied by the CAN bus (+7.0V to +36V DC)
Protection	Reverse voltage protection on CAN-bus supply
	Transient voltage pulse protection on CAN-bus supply
Power via USB	Power supplied by USB (+5.0V DC)
Consumption	The logger's power consumption is approximately 1 W
MECHANICAL
Enclosure	Robust, small enclosure
Dimensions	66.7 x 42.7 x 23.5 mm (L x W x H)
Weight	45 grams
Connector	Standard D-sub 9 (DB9) connector (OBD2, J1939, "generic" adaptor optional)
USB	Standard mini USB connector for extracting data & streaming (cable not included)
Temperature	Operating temperature: -20degC to +65degC
Real-Time Clock	Built-in real-time-clock with calendar and battery backup
	Date and time information are added to log files
	Battery backup with more than two years of battery capacity
IP Rating	IP Rating 40
