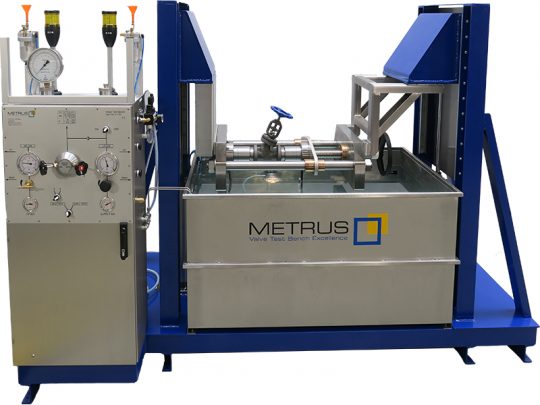

Valve test bench for control and shut-off valves. Model: CSV 10/150 UW
Aucontech Co Ltd
10 out of
10
Valve test bench for control and shut-off valves
Basic features
- Max. clamping force: 10 ton
- Clamping range: DN10-DN150 1/2″-6″
- Stainless steel control cabinet and control panel
- Stainless steel water tank
- Anodized, acid proof front panel
- Shell test with air up to 40 bar / 580 PSI
- Seat leakage test with air up to 40 bar / 580 PSI
- Safe 2 hand operation
- Bidirectional seat leakage test
- Integrated water tank light
- Clamping via automatic seal heads
- Stainless steel tubing PN600
- Gauge quick connection
- Bubble counter (DIN/EN, ASME and API)
- METRUS precision valve technology
Options
- CRS – Computer Registration System
- Digital bubble counter
- Gauge turret for 4 + 1 gauges
- Panel PC on swivel arm
- Safety pressure limitation
- ESD – Emergency Shut Down
Flange/Test pressures
| Flange | Max. test pressures | ||
| mm | inch | bar | psi |
| DN 15 | 1/2″ | 40 | 580 |
| DN 25 | 1″ | 40 | 580 |
| DN 40 | 1.5″ | 40 | 580 |
| DN 50 | 2″ | 40 | 580 |
| DN 65 | 2.5″ | 40 | 580 |
| DN 80 | 3″ | 40 | 580 |
| DN 100 | 4″ | 40 | 580 |
| DN 125 | 5″ | 40 | 580 |
| DN 150 | 6″ | 40 | 580 |
Dimension
