Valve test bench for control and shut-off valves. Model: CSV 2000/500
Aucontech Co Ltd
10 out of
10

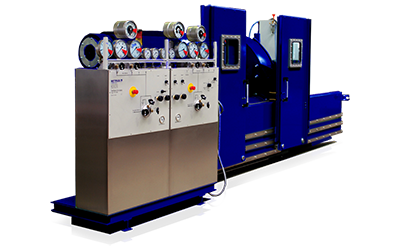

Valve Test bench – CSV 2000/500
Valve test bench for control and shut-off valves
Basic features
- Max. clamping force: 2000 to
- Clamping range: DN300-DN500 12″-20″
- Stainless steel control cabinet
- Anodized, acid proof front panel
- METRUS precision valve technology
- Shell test with water up to 600 bar
- Seat leakage test with air up to 9 bar
- Actuator supply: air up to 6 bar
- Clamping via automatic seal heads
- Air lock free filling
- Closed water circuit
- Dual chamber SS tank
- Stainless steel tubing PN600
- Gauge quick connection
- Bubble counter (DIN/EN, ASME and API)
- Adapted high pressure pump
- Overload protection
- High pressure water up to 1600 bar
Options
- Testing AB – the third connection
- External testing adaptor
- Bi directional testing
- High pressure air/gas inlet
- High pressure water up to 1600 bar
- Pneumatic sequential control
- Visual seat inspection
- Flow meter cascade
- Gauge turret
- CRS – Computer Registration System
- Panel PC on swivel arm
- Safety pressure limitation
- Safety doors
- ESD – Emergency Shut Down
Flange/Test pressures
| Flange | Max. test pressures | ||
| mm | inch | bar | psi |
| DN 300 | 12″ | 1600 | 23200 |
| DN 350 | 14″ | 1450 | 21000 |
| DN 400 | 16″ | 1260 | 18200 |
| DN 500 | 20″ | 830 | 12000 |
