Valve test bench for control and shut-off valves. Model: CSV 80/300
Aucontech Co Ltd
10 out of
10

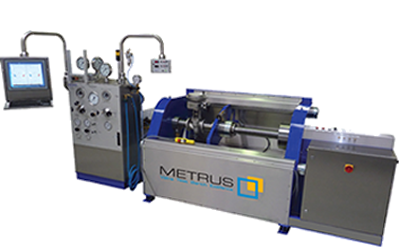

Valve test bench – CSV 80/300
Valve test bench for control and shut-off valves
Basic features
- Max. clamping force: 80 to
- Clamping range: DN10-DN300 1/2″-12″
- Stainless steel control cabinet
- Anodized, acid proof front panel
- METRUS precision valve technology
- Shell test with water up to 600 bar
- Seat leakage test with air up to 9 bar
- Actuator supply: air up to 6 bar
- Clamping via automatic seal heads
- Air lock free filling
- Closed water circuit
- Dual chamber SS tank
- Stainless steel tubing PN600
- Gauge quick connection
- Bubble counter (DIN/EN, ASME and API)
- Adapted high pressure pump
- Overload protection
Options
- Testing AB – the third connection
- External testing adaptor
- Bi directional testing
- High pressure air/gas inlet
- High pressure water up to 1600 bar
- Pneumatic sequential control
- Visual seat inspection
- Flow meter cascade
- Gauge turret
- CRS – Computer Registration System
- Panel PC on swivel arm
- Safety pressure limitation
- Safety doors
- ESD – Emergency Shut Down
Flange/Test pressures
| Flange | Max. test pressures | ||
| mm | inch | bar | psi |
| DN 15 | 1/2″ | 600 | 8700 |
| DN 25 | 1″ | 600 | 8700 |
| DN 40 | 1.5″ | 600 | 8700 |
| DN 50 | 2″ | 600 | 8700 |
| DN 65 | 2.5″ | 600 | 8700 |
| DN 80 | 3″ | 600 | 8700 |
| DN 100 | 4″ | 600 | 8700 |
| DN 125 | 5″ | 340 | 4900 |
| DN 150 | 6″ | 250 | 3600 |
| DN 200 | 8″ | 170 | 2400 |
| DN 250 | 10″ | 120 | 1700 |
| DN 300 | 12″ | 85 | 1200 |
Dimension
