Valve test bench for control and shut-off valves. Model: CSV 220/300
Aucontech Co Ltd
10 out of
10

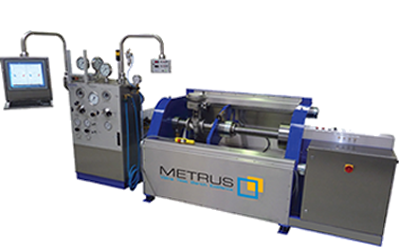

Valve Test bench – CSV 220/300
Valve test bench for control and shut-off valves
Basic features
- Max. clamping force: 220 to
- Clamping range: DN100- DN300 / 4″-12″
- Stainless steel control cabinet
- Anodized, acid proof front panel
- METRUS precision valve technology
- Shell test with water up to 600 bar
- Seat leakage test with air up to 9 bar
- Actuator supply: air up to 6 bar
- Clamping via automatic seal heads
- Air lock free filling
- Closed water circuit
- Dual chamber SS tank
- Stainless steel tubing PN600
- Gauge quick connection
- Bubble counter (DIN/EN, ASME and API)
- Adapted high pressure pump
- Overload protection
Options
- Testing AB – the third connection
- External testing adaptor
- Bi directional testing
- High pressure air/gas inlet
- High pressure water up to 1600 bar
- Pneumatic sequential control
- Visual seat inspection
- Flow meter cascade
- Gauge turret
- CRS – Computer Registration System
- Panel PC on swivel arm
- Safety pressure limitation
- Safety doors
- ESD – Emergency Shut Down
Flange/Test pressures
| Flange | Max. test pressures | ||
| mm | inch | bar | psi |
| DN 100 | 4″ | 600 | 8700 |
| DN 150 | 6″ | 600 | 8700 |
| DN 200 | 8″ | 490 | 7100 |
| DN 250 | 10″ | 330 | 4700 |
| DN 300 | 12″ | 240 | 3400 |
