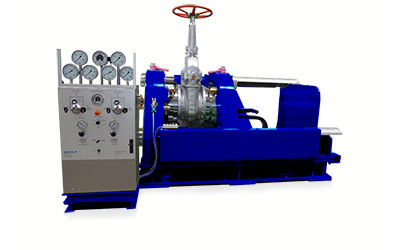

Valve test bench for control and shut-off valves. Model: CSV 400/600
Aucontech Co Ltd
10 out of
10
Valve Test bench – CSV 400/600
Valve test bench for control and shut-off valves
Basic features
- Max. clamping force: 400 to
- Clamping range: DN250 – DN600 / 10″-24″
- Stainless steel control cabinet
- Anodized, acid proof front panel
- METRUS precision valve technology
- Shell test with water up to 600 bar
- Seat leakage test with air up to 9 bar
- Actuator supply: air up to 6 bar
- Clamping via automatic seal heads
- Air lock free filling
- Closed water circuit
- Dual chamber SS tank
- Stainless steel tubing PN600
- Gauge quick connection
- Bubble counter (DIN/EN, ASME and API)
- Adapted high pressure pump
- Overload protection
Options
- Testing AB – the third connection
- External testing adaptor
- Bi directional testing
- High pressure air/gas inlet
- High pressure water up to 1600 bar
- Pneumatic sequential control
- Visual seat inspection
- Flow meter cascade
- Gauge turret
- CRS – Computer Registration System
- Panel PC on swivel arm
- Safety pressure limitation
- Safety doors
- ESD – Emergency Shut Down
Flange/Test pressures
| Flange | Max. test pressures | ||
| mm | inch | bar | psi |
| DN 250 | 10″ | 600 | 8700 |
| DN 300 | 12″ | 440 | 6300 |
| DN 400 | 16″ | 250 | 3600 |
| DN 500 | 20″ | 160 | 2300 |
| DN 600 | 24″ | 120 | 1700 |
