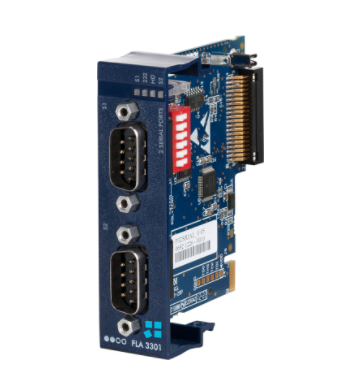

Flexy Extension Card - 2 Serial Ports

This Flexy extension card increase the connectivity capability of the Ewon Flexy with 2 serial ports.

The dual serial port extension card off ers OEMs and system integrators the ability to interconnect and retrieve data from serial devices. As a transparent gateway, the Ewon Flexy is the link between any serial devices or PLCs and the Ethernet LAN. As a data acquisition gateway, the Ewon polls the serial devices at defined intervals to feed its internal memory tags with live and time-stamped data.

It is compatible with the Ewon Flexy 10x series, 20x series and 205.

Flexy 205 Graphic_isometric SERIAL_714x480

Technical Characteristics

	RS232/485/422 Port	RS232 Port
Number of ports	1	1
Physical mode	RS232/422/485, configurable by dip switch	RS232
Connector	SUBD9 (male)	SUBD9 (male)
Operating temp.	-25 to +60°C	-25 to +60°C

Certifications

CE	Compliant with : EMC Directive 2014/30/EU; LVD 2014/35/EU RoHS3 Directive 2015/863/EU REACH According to standards : EMC emission Class A EN55032; EN55024 Safety: EN60950-1; EN 62368-1
FCC/IC	Compliant with : This product complies with the Part 15 of the FCC rules
Japan	Compliant with : This device complies with Japanese regulations
Safety	Conform to : EN;UL;IEC;CAN 60950-1 EN;UL;IEC;CAN 62368-1 UL recognized: file number E350576 CB certificate n° DK-53957-A1-UL & DK-84039-UL

Dip Switch Configuration of Port S1

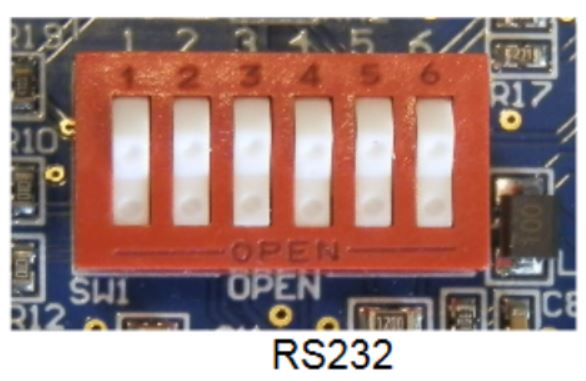

RS232 (ex-factory) All six switches OPEN (pressed in on OPEN side, raised out on numbers side)
RS485 Switches 1 to 4 CLOSED (pressed in on numbers side, raised out on OPEN side) Remaining 2 switches see terminations (below)

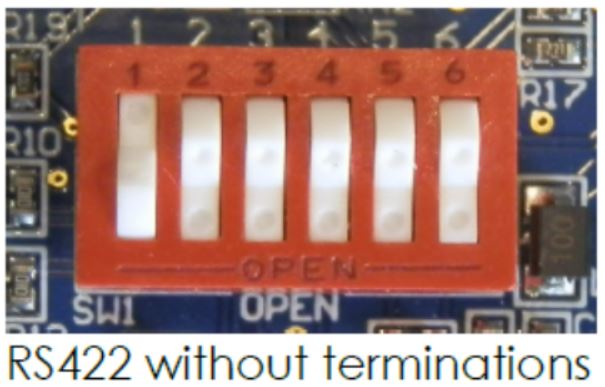

RS422 Switch 1 CLOSED (pressed in on numbers side) Switches 2 to 4 OPEN (pressed in on OPEN side, raised out on numbers side) Remaining 2 switches see terminations (below)

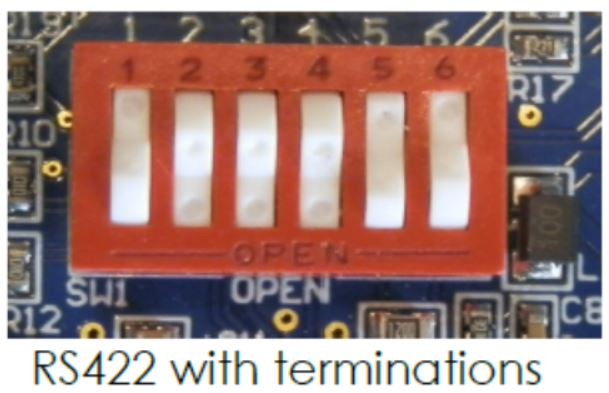

Terminations (RS485/422) Activated: Switches 5 & 6 BOTH CLOSED (pressed in on numbers side)

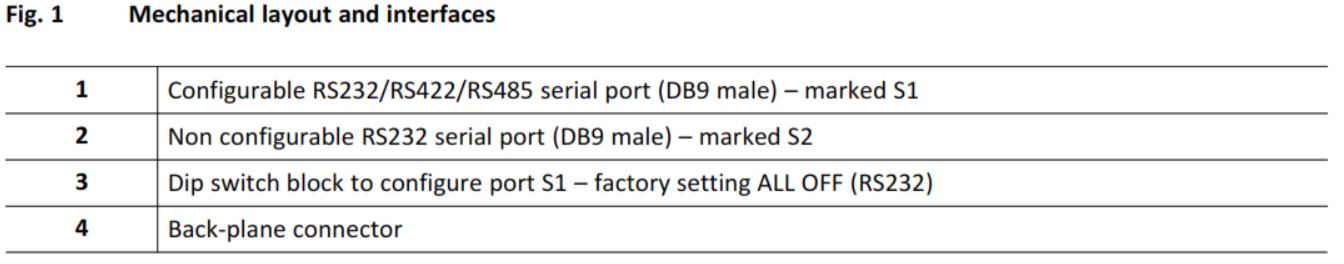

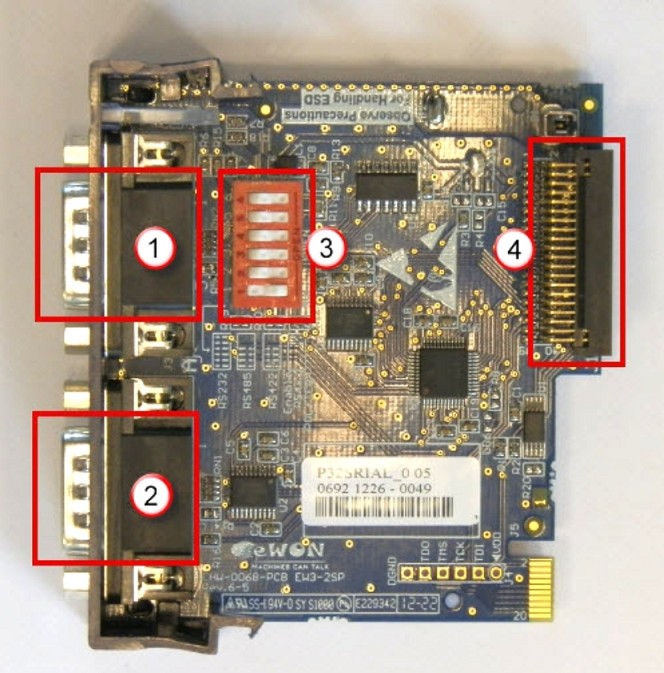

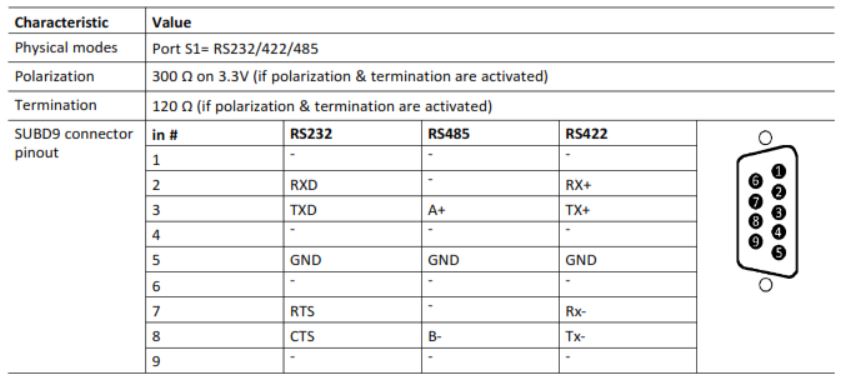

Configurable Port S1: Port S1 is configurable by dip switch in 3 different physical modes RS232, RS422 and RS485.

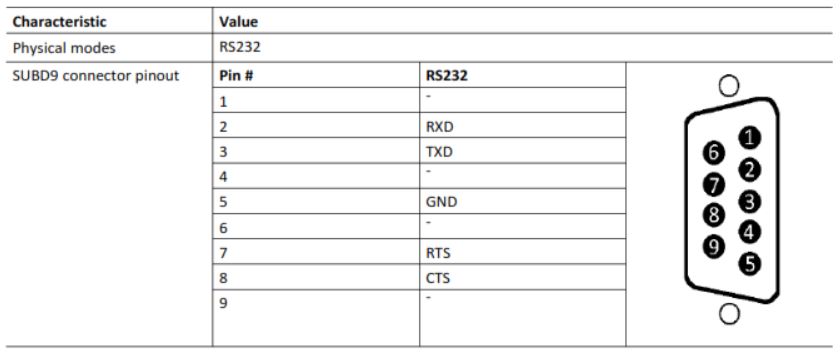

Configurable Port S2: Port S2 Is RS232 only.
