Flexy Extension Card - 8DI-4AI-2DO - FLX3402_00
Aucontech Co Ltd
10 out of
10

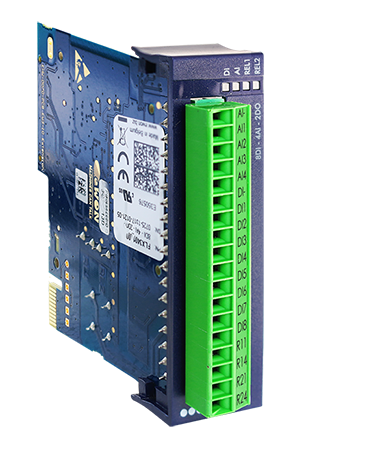

Flexy Extension Card - 8DI-4AI-2DO
This Flexy extension card increase the connectivity capability of the Ewon Flexy with an IO connections.
The Ewon Flexy I/O card provides OEMs and system integrators with a full range of eight digital inputs, four analogue inputs configurable in voltage or current and two digital outputs for a wide variety of applications where data needs to be transferred from a remote location to a central server application. The data can easily be stored in the Ewon Flexy internal memory for later review or retrieval.
It is compatible with the Ewon Flexy 10x series, 20x series and 205.
Technical Characteristics
|
Analogue inputs |
Digital inputs |
Output relays (NO) |
|
| Number of inputs | 4 | 8 | 2 |
| Range | Voltage mode 0-10V 16 bit resolution or current mode 4-20mA, user selectable with Dip Switch configuration. |
0 to 12/24 VDC | 2A/30V VAC/VDC |
| Isolation | 1.5kV from power supply | 1.5 kV from electronic AND power supply | 1.5 kV from electronic AND power supply |
| Operating temp. | -25 to +60°C | -25 to +60°C | -25 to +60°C |
Certifications
| CE |
Compliant with : EMC directive 2014/30/EU; LVD 2014/35/EU According to standards : EMC emission Class A EN55032; EN55024 |
| FCC/IC |
Compliant with : This product complies with the Part 15 of the FCC rules |
| Japan |
Compliant with : This device complies with Japanese regulations |
| Safety |
Conform to : EN;UL;IEC;CAN 60950-1 |
