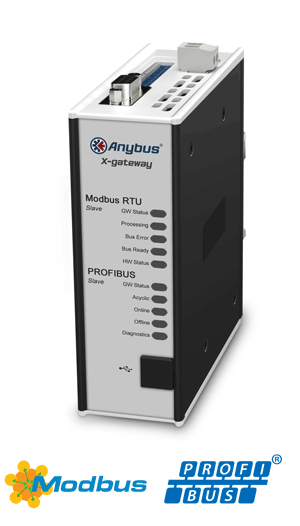

The Anybus X-gateway allows you to seamlessly inter-connect PLC control systems and their connected devices between PROFIBUS and Modbus RTU networks.
The X-gateways primary function is with the fast transfer of cyclic I/O data between the two networks. This offloads your PLC from working with additional calculations. The gateway acts as a Slave on the PROFIBUS network and as a Slave on the Modbus RTU network. The data transmission between the two networks is completely transparent with a maximum data capacity of 512 bytes in each direction.
The connection between the two networks is quickly set up in the Anybus Configuration Manager software, included with the X-gateway. No programming skills are needed to set up the X-gateway. As factory default the X-gateways have a pre-defined I/O size of 20 bytes I/O.
PROFIBUS Slave settings can be made either via on-board switches, or by importing the provided .GSD file into engineering tool of the controlling PLC.
Modbus RTU network address settings made via on-board configuration switches
|Dimensions (L•W•H)||114 x 44 x 127mm or 4,49 x 1,73 x 5,00"|
|Weight||400g or 0,880 lbs|
|Operating temperature||-25 to +65 °C or -13 to +149 °F|
|Storage temperature||-40 to +85 °C or -40 to +185 °F|
|Power supply||24 VDC +/- 20% via 2-pole 5.08 mm Phoenix pluggable screw connector|
|Current consumption||max. 400mA (Typical 200mA)|
|Enclosure material||Aluminium and plastic|
|Installation position||Vertical / Flat*|
|Galvanic isolation||YES, on both BUS/Ethernet side|
|Mechanical rating||IP20, NEMA rating 1|
|Mounting||DIN-rail (EN 50022 standard)|
|I/O configuration||via USB port with Anybus Configuration Manager software|
|Certifications||CE, CULUS, RoHS|
