101-30011C - ComBricks HE+ 101-30011C - Procentec

Is your PROFIBUS network located in a harsh environment with for instance high temperatures or vibrations and do you need 24/7 monitoring of your network? The ComBricks HE+ is a robust device, which makes it ideal for these harsh environments. The system unites network components with permanent monitoring and ProfiTrace.

• Perfect for harsh environments
• 24/7 monitoring of your network
• Easy to use

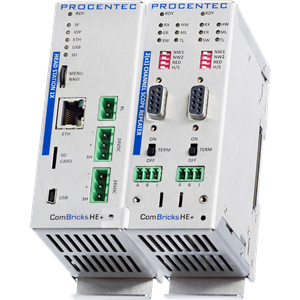

ComBricks HE+ is a modular system that allows a mix of automation components. Additional repeater modules with integrated scope functionality can be connected on the right side of the Head Station. This way, the condition of a maximum of four separate PROFIBUS installations can be remotely inspected with ProfiTrace OE.

Compared to the first ComBricks system, the ComBricks HE+ has a robust stainless steel housing, that protects the electronics inside the device against higher disturbances.

Resistant to vibrations

The ComBricks HE+ is ILAC-MRA vibration approved. This means that the system is resistant to vibrations that may occur when the unit is used on trains, planes, boats or trucks.

Better interconnection

ComBricks HE+ is based on an internal backplane, which can hold up to two physical modules next to the Head station. Each physical module consists of two scope repeater modules joined as one housing. Every channel can handle 31 PROFIBUS devices and a maximum of 1200 m cable length. ComBricks HE+ also provides a better interconnection between the individual modules, thanks to metal clamps to lock them together.

Your benefits

• Robust RVS housing
• No separate backplane: all modules are directly connected to DIN rail
• Modules locked together (metal clamps)
• Interference noise on the shield is drained by RVS housing
• Better temperature dissipation to environment
• All connectors on the front of the housing

Product features

• Improved EMC protection
• Powerful web server
• ProfiTrace OE for permanent monitoring up to 4 PROFIBUS networks
• Multi-language
• Free CommDTM / DP-V1 master
• DIN-rail mounting
•  IP 20

Technical specifications

General specifications

• Dimensions (LxWxH): 85 x 45 x 132 mm
• Weight: 420 grams (Head Station), 440 grams (Scope repeater module)
• Material: Stainless steel
• Mounting: DIN rail
• Ambient operating temperature: -20oC ... 60oC

Electrical specifications

• Nominal supply voltage: 12 .. 24 VDC
• Current consumption: 800 mA
• Power: 20 W
• Wire diameter: <2.5 mm2

Ethernet

• Connector: RJ45
• Cable length: Max 100 m
• Link speed: 10 / 100 Mbps
• Connections: 20 simultaneous web server clients

Relay contact

• Resistance: 30 mOhm
• Voltage: 24 VAC
• Current: 0.4 A

Standards and approvals

• CE
• FCC
• Temperature: EN-IEC 60068-2-1, EN-IEC 60068-2-2
• Vibration: EN-IEC 60068-2-6, EN-IEC 60945
