Features and Benefits

• Design of the valve is to be corrosion resistant and self-cleaning, allowing it to operate in sour gas environments (high sulfur content gas) that can cause problems for other valves
• The EM35MR actuator is all electric, reducing hydraulic contamination and maintenance problems
• The DVP uses the latest in Woodward control architecture, robust controller to provide high-speed precise valve control

Product Variants

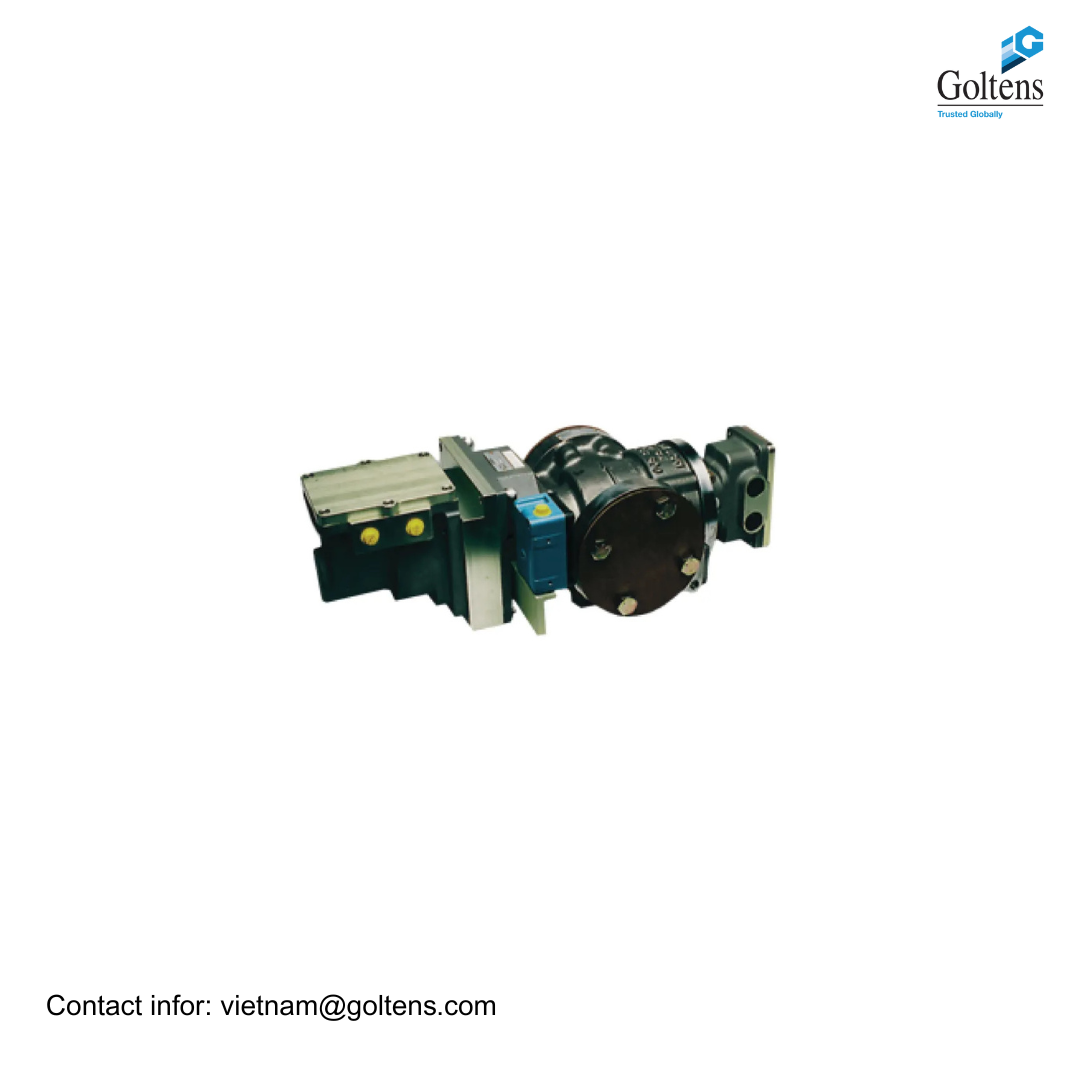

3103 EM35MR

• Conduit Entry
• 2.0 Inch RF ANSI Flange
• 24 VDC Input Voltage
• Standard Inlet Pressure and Enhanced Inlet Pressure Options

Product Specifications 3103 EM35MR

Maximum Gas Supply Pressure

• 720 psia (4964 kPa) – Standard Inlet Pressure (CSA and CE)
• 900 psia (6205 kPa) – Standard Inlet Pressure (CSA)
• 900 psia (6205 kPa) – Enhanced Inlet Pressure (CSA and CE)

Fuel Temperature

• -40 to +300 degrees Fahrenheit (-40 to +149 degrees Celsius)

Ambient Temperature

• -40 to +200 degrees Fahrenheit (-40 to +93 degrees Celsius)
