Anybus Communicator - PROFIBUS
Integrate your serial RS-232/422/485 based industrial devices and equipment to a PROFIBUS control system without the need for any changes to the device. Just connect, configure and you're done!
The Anybus Communicator is a proven and trusted protocol converter gateway that connects non-networked industrial devices and equipment to PROFIBUS. The gateway performs an intelligent protocol conversion and presents the serial data to the Master PLC/Controller as easily processed I/O data.

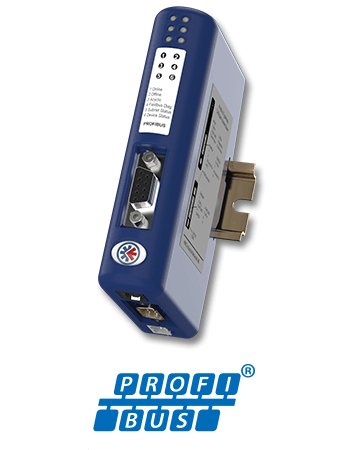

The Communicator is slim stand-alone gateway designed for IP20 and DIN-rail mounting, requiring a 24-volt power supply. The Communicator is conformance tested to current PROFIBUS specifications guaranteeing network compatibility.
CONVERT ALMOST ANY TYPE OF SERIAL PROTOCOL
The Communicator is capable of converting almost any type of serial protocol such as Modbus RTU, ASCII, DF1 or any other type of proprietary Query/Response or Produce/Consume protocol.
TYPICAL SERIAL APPLICATIONS
Typical serial applications include variable frequency drives, sensors, actuators, human machine interfaces, barcode readers, RFID readers and industrial scales among others.
Features and benefits
- Saves machine builders and device manufacturers of integrating a PROFIBUS interface
- Allows system integrators to retro-fit older automation devices into PROFIBUS communication structures
- Requires no hardware or software changes to be made to the connected device
- Compatible with all PLCs with PROFIBUS support
- Performs complete serial protocol conversion, no PLC function blocks required
- Intelligent I/O data mapping within the Communicator permits even devices with slow serial communication can be integrated without any restrictions to the upper network
- Possibility to connect upto 31 nodes via one Communicator giving inexpensive PROFIBUS network connectivity for your devices
- Always free technical support from HMS and our global Anybus Distributors
Serial protocol configuration features
No high level programming skills are needed to set up the Anybus® Communicator as configuration is accomplished using the included, easy to use Windows™ based ACM (Anybus Configuration Manager).
- Selectable RS-232/422/485 interface
- Pre-defined 6-step Modbus-RTU configuration wizard
- Selectable pre-loaded DF1 commands. No scripting or serial frame building required!
- Ability to configure ASCII or vendor specific protocols (Request/Response or Produce/Consume via a visual frame building interface
- Multi-language support for English, German, Spanish, Italian, French, Polish, Russian, Chinese and Japanese
- Handy Save/Load function allows for a completed configuration to be re-used for many other installations
- Password protection prevents unauthorized upload and download of configurations
- Serial Line Listener and In-built Checksum calculations for diagnostic and troubleshooting
PROFIBUS interface features
- Complete PROFIBUS-DP slave according to IEC 61158
- Max 244 bytes of Input and 244 bytes of Output data - 416 bytes data length in total
- Automatic PROFIBUS baud rate detection (9600 bit / s - 12 Mbit / s)
- Supports PROFIBUS features: Sync and Freeze and Watchdog
- PROFIBUS uplink configuration via on-board switches or via .GSD file
- 1x D-sub 9-pin female PROFIBUS connector
|120 x 75 x 27mm or 4,72 x 2,95 x 1,06"
|150g or 0,33 lbs
|0 to +55 °C or 0 to +131 °F
|-40 to +85 °C or -40 to +185 °F
|max. 300mA (Typical 100 mA)
|Serial application Interface
|Selectable RS-232, RS-422, RS-485
|31 nodes via RS-422 or RS-485
|On both serial and BUS/Ethernet side
|IP20, NEMA rating 1
|DIN-rail (EN 50022 standard)
|Protocol: Modbus RTU
|Modbus RTU Master - Request/Response
|Protocol: ASCII/Vendor Specific
|Request/Response or Produce/Consume
|Protocol: Rockwell DF1
|CE, CULUS, RoHS
