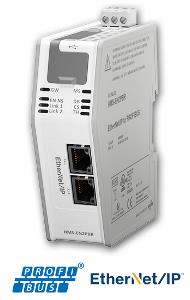

EtherNet/IP to PROFIBUS Linking Device - HMS-EN2PR-R

Giá bán: Liên hệ

Mã sản phẩm: HMS-EN2PB-R

Thương hiệu: HMS

Tình trạng: Hết hàng

Ordering information



- HMS-EN2PB-R Linking Device, Installation guide (Power supply not included).

    Tư vấnhotline0965746247

    EtherNet/IP to PROFIBUS Linking Device

    Minimize costs when connecting PROFIBUS networks and devices to ControlLogix® or CompactLogix® controllers with an EtherNet/IP interface.


    The Linking Device's primary function is the fast transfer of large cyclic I/O data between the two networks. There is also support for acyclic data. This offloads your Logix PLC from working with additional calculations. The Linking Device acts as a slave (adapter) on EtherNet/IP and as a powerful Master on the PROFIBUS side, handling up to 7000 bytes of I/O data. The data transfer between the two networks is completely transparent.


    With its unique Studio 5000® Logix designer integration, everything is accessible from within Studio 5000, including PROFIBUS network configuration. No extra 3rd-party software or licenses needed.


    EtherNet/IP Linking Devices are configured using a Custom Add On Profile for Studio 5000 Logix Designer which dynamically generates data structures based on the configuration. No ladder logic files (add on instructions) needed.

    Furthermore, it also supports automatic generation of named and structured Studio 5000 controller tags, which eliminates the need to create alias tags.

    Features and benefits

    • Minimize costs when connecting PROFIBUS devices to your PLC. More cost-efficient than an in-chassis solution
    • Allows support for "Big Data" — handling up to 7000 bytes of I/O data over multiple I/O connections on EtherNet/IP
    • Speed up configuration through a seamless integration with Studio 5000 Logix Designer.
    • Compatible with all ControlLogix and CompactLogix PLCs supporting EtherNet/IP
    • Everything configured through Studio 5000 — no 3rd party software or licenses needed
    • Dynamically generates data structures in Studio 5000 with no required user logic
    • Configuration of the PROFIBUS network and data structures through Customer Add-On Profile
    • Routing of acyclic data via predefined CIP objects available for specific PROFIBUS DPV1 read and write requests
    • Control/Status information added to I/O data for diagnostic purposes
    • Live List of the active status of connected slaves
    • No need for long and expensive PROFIBUS cables — use Ethernet cables for the longest distance.

    PROFIBUS Master/Scanner interface

    The Linking Device has an integrated powerful PROFIBUS Master interface


    • Complete Profibus DP Master functionality according to IEC 61158

    • Max 3500 bytes in each direction over multiple I/O connections on EtherNet/IP

    • Controls up to 125 slaves

    • Acyclic Communication (DP-V1, Class 1 & 2)

    • Supports all common baud rates up to 12Mbps

    • Galvanically isolated PROFIBUS interface

    EtherNet/IP interface features

    The Linking Device has the very latest ODVA EtherNet/IP adapter functionality

    • Dual EtherNet/IP ports 10/100Mbit, full or half-duplex operation
    • Beacon-based DLR (Device Level Ring) and linear network topology supported
    • Support for multiple (Exclusive Owners) I/O connections (Max 10)
    • ODVA EtherNet/IP conformance tested

    Technical specifications

    Dimensions  (L•W•H) 110 x 35 x 101mm or 4,33 x 1,38 x 3,98"
    Weight  184g
    Operating temperature -25 to +60 °C  or  -13 to +140 °F
    Storage temperature -40 to +85 °C  or  -40 to +185 °F
    Power supply  24 VDC +/- 20%
    Current consumption Max 300mA, typical 220mA.

    Enclosure material

    PC ABS, UL94 VO
    Installation position   Vertical
    Galvanic isolation YES, on both BUS/Ethernet side
    Mechanical rating  IP20, NEMA rating 1
    Mounting DIN-rail (EN 50022 standard) or Wall mount
    PROFIBUS baudrate 9600 bit/s - 12 Mbit/s
    PROFIBUS address   Node address 0-125
    PROFIBUS connector  D-sub 9-pin female
    EtherNet/IP baud rate  10/100 Mbit/s autodetect
    EtherNet/IP connector  2x RJ45
    EtherNet/IP address  Any valid IP address can be used
    TCP/IP settings  Configurable via BOOTP-DHCP server or via Anybus IP config
    Certifications ODVA, CE, CULUS, ATEX/Haz.Loc
