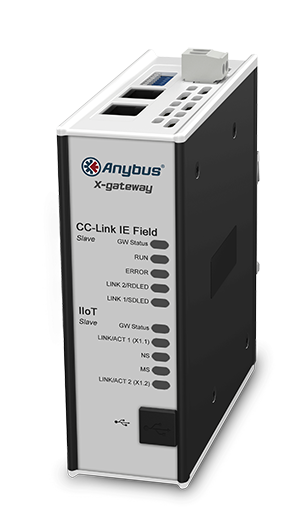

Anybus X-gateway IIoT – CC-Link IE Field Slave - OPC UA-MQTT

The Anybus X-gateway IIoT allows you to seamlessly inter-connect PLC control systems and their connected devices to the IIoT networks MQTT and OPC UA.

SAFE AND ISOLATED DATA MONITORING
The X-gateway IIoT’s primary function is to allow the fast streaming of an industrial network into OPC UA and MQTT. This offloads your PLC from working with additional services while providing extra security by isolated the high-risk connections away from sensitive areas.  In principle, the PLC gets its own firewall.

EASY CONFIGURATION - NO PROGRAMMING REQUIRED!
The connection between the two networks is quickly set up in the Anybus Configuration Manager software, included with the X-gateway. No programming skills are needed to set up the X-gateway.

CC-Link IE Field Slave settings can be made either via on-board switches, or by importing the provided .CSP file into engineering tool of the controlling PLC.

• CC-Link IE Field interface of the X-gateway is conformance tested and approved by CLPA
• CC-Link Specification (Profile), publication BAP-05028-B
• Acts as a CC-Link IE Field Network Intelligent Device Station
• Max 512 bytes Input and 512 bytes I/O data
• On CC-Link IE Field: Max of 832 I/O points and 204 words Input and 832 I/O points and 204 words Output
• Baudrate 1 Gbit/s fixed operation
• TCP/IP settings configurable with web-page, Configuration Tool, DHCP or ARP
• CC-Link IE Field station setting via on-board switches
• 2x RJ-45 ports available simultaneously

Technical specifications

Ordering Information

ORDER CODE: AB7557

INCLUDED COMPONENTS:
- Quick start documentation
- USB configuration cable
- Configuration software available for download
- (Power supply not included)
GUARANTEE:  3 years
