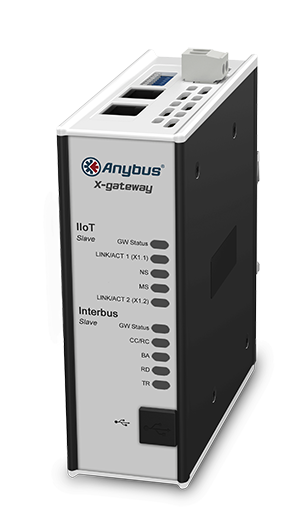

Anybus X-gateway IIoT - Interbus CU Slave – OPC UA-MQTT

The Anybus X-gateway IIoT allows you to seamlessly inter-connect PLC control systems and their connected devices to the IIoT networks MQTT and OPC UA.

SAFE AND ISOLATED DATA MONITORING
The X-gateway IIoT’s primary function is to allow the fast streaming of an industrial network into OPC UA and MQTT. This offloads your PLC from working with additional services while providing extra security by isolated the high-risk connections away from sensitive areas.  In principle, the PLC gets its own firewall.

EASY CONFIGURATION - NO PROGRAMMING REQUIRED!
The connection between the two networks is quickly set up in the Anybus Configuration Manager software, included with the X-gateway. No programming skills are needed to set up the X-gateway.

Features and benefits

• Supports OPC UA micro-embedded profile
• Supports Discovery Services
• User name and password authentication
• Supports DataChange Subscription
• MQTT client acting as publisher
• Proven and tested with PLC’s from all leading manufacturers
• Possibility to build web pages to display and control a factory floor

OPC UA

• Support for micro-embedded profile
• Data direction from server to client
• Supports Discovery Services
• Timestamp supported via discovery server
• User name and password authentication
• Supports DataChange Subscription
• Maximum 80 data point tags
• Dual port cut-through switch
• Dual RJ-45 ports available simultaneously

MQTT

• MQTT client acting as publisher
• MQTT version 3.1.1 supported
• Json data encoding supported
• QoS 0-2 supported
• User name and password authentication
• Maximum 256 data point tags
• Dual port cut-through switch
• Dual RJ-45 ports available simultaneously

Interbus CU Slave Interface

Interbus Slave address settings can are automatically detected by the controlling PLC.

• Complete Interbus functionality according to EN 50170
• Max. 20 bytes of process data (512 bytes with PCP) in each direction
• PCP V.2.0. (0, 1, 2, or 4 words)
• Interbus baudrate 500 kbit/s – 2 Mbit/s
• Automatic slave address detection by controlling PLC master
• 1x D-sub 9-pin male and 1x D-sub 9-pin female network connector

Technical specifications

Ordering Information

ORDER CODE: AB7566

INCLUDED COMPONENTS:
- Quick start documentation
- USB configuration cable
- Configuration software available for download
- (Power supply not included)


GUARANTEE:  3 years
