2/4 x CAN (High-Speed), 1 x CAN (Low-Speed), LIN

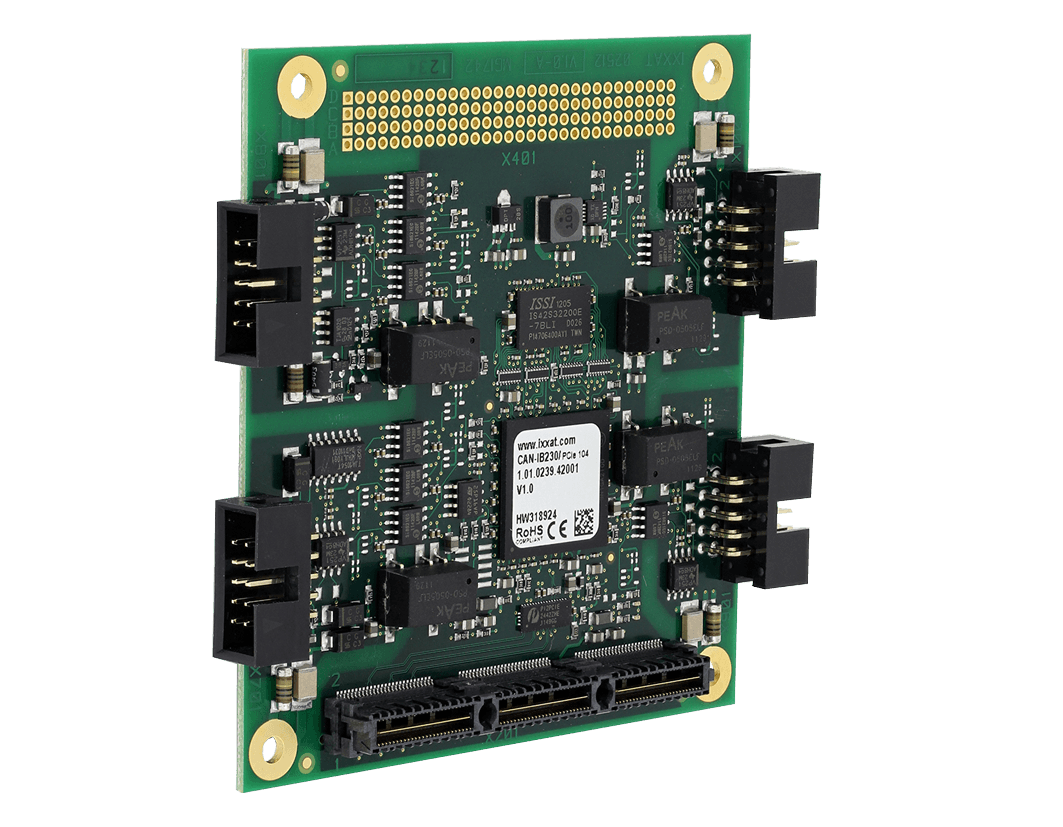

With the CAN-IB230/PCIe 104 HMS offers a PCI/104-Express board based on a modern and highly modular concept. The card covers the entire range of field buses, such as CAN (ISO 11898-2), fault tolerant CAN (ISO 11898-3) and LIN.
The CAN-IB230/PCIe 104 is available with up to four CAN channels and galvanic isolated interfaces. For use in the automotive field one high-speed CAN channel can optionally be switched to low-speed CAN via software. Furthermore, the card can be equipped with one LIN interface.
Multiple cards can be installed in one PC if more CAN channels are required.
PC bus interface | PCI express (V1.1) |
PC address range | Plug & Play |
Interrupts | Plug & Play |
Microcontroller | 32 bit microcontroller |
CAN interface | 2 or 4 CAN 2.0 A/B interfaces; bent 2 x 5 pin connector according to CiA 303-1; galvanic isolated (1 kV, 1 sec.) Optional: CAN Low-Speed (one channel can be switched via software between CAN High-Speed and Low-Speed) |
LIN interface | Optional: one LIN (ISO 9141) interface; galvanic isolated |
Power supply | 3.3 V DC, 390 mA typ. |
Temperature range | -40 ºC ... +85 ºC |
Certification | CE, FCC |
Size | Approx. 90 x 96 mm |
CAN HS ports | Galv. iso. | CAN HS/LS ports switchable | LIN ports | Order numbers |
2 | X | 1.01.0239.22000 | ||
4 | X | 1 | 1 | 1.01.0239.42001 |
