CAN-IB500/PCIe (CAN, CAN FD)

Giá bán: Liên hệ

Mã sản phẩm: 1.01.0231.12010

Thương hiệu: HMS

Tình trạng: Còn hàng

ORDER NUMBER

1.01.0231.12010

Tư vấnhotline0965746247

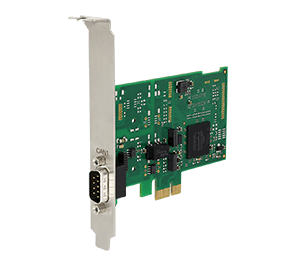

CAN-IB500/PCIe

Passive CAN FD Interface for PCI Express

1 x CAN FD, CAN (High-Speed), CAN (Low-Speed)

With the CAN-IB500/PCIe HMS offers a CAN FD interface based on a modern and modular architecture concept. The interface has one CAN channel which can send and receive either CAN FD (ISO or non ISO format) or CAN 2.0A/B messages.

FEATURES AND BENEFITS

  • Economically priced passive board (no microprocessor on board)
  • One CAN channel (High-Speed CAN or CAN FD)
  • Galvanic isolation of the CAN interface
  • Uniform driver packages support all IXXAT CAN and CAN-FD interfaces and allow easy change of the PC interface type
  • Powerful programming interface for Windows "VCI" as well as "ECI" for Linux, QNX, RTX, INtime and VxWorks
  • Passive interface and suitable for applications with a mid-range data throughput.

TECHNICAL SPECIFICATIONS

PC bus interface PCI express (V1.1)
PC address range Plug & Play
Interrupts Plug & Play
CAN interface 1 CAN channel; CAN FD or CAN 2.0 A/B; Sub-D9 plugs according to CiA 303-1, galvanic isolation (1 kV, 1 sec.)
Power supply 3.3 V DC, 400 mA typ.
Temperature range 0 ºC ... +70 ºC
Certification  CE, FCC
Size Approx. 65 x 105 mm (available as standard and low-profile version)

Order number

CAN FD
ports
Galv.
iso.
Order numbers Optional expansions
1 X 1.01.0231.12010 1 x 1.01.0241.20001
Low Speed CAN Fieldbus Expansion with galv. iso.



Expansions

 Fieldbus Expansion
