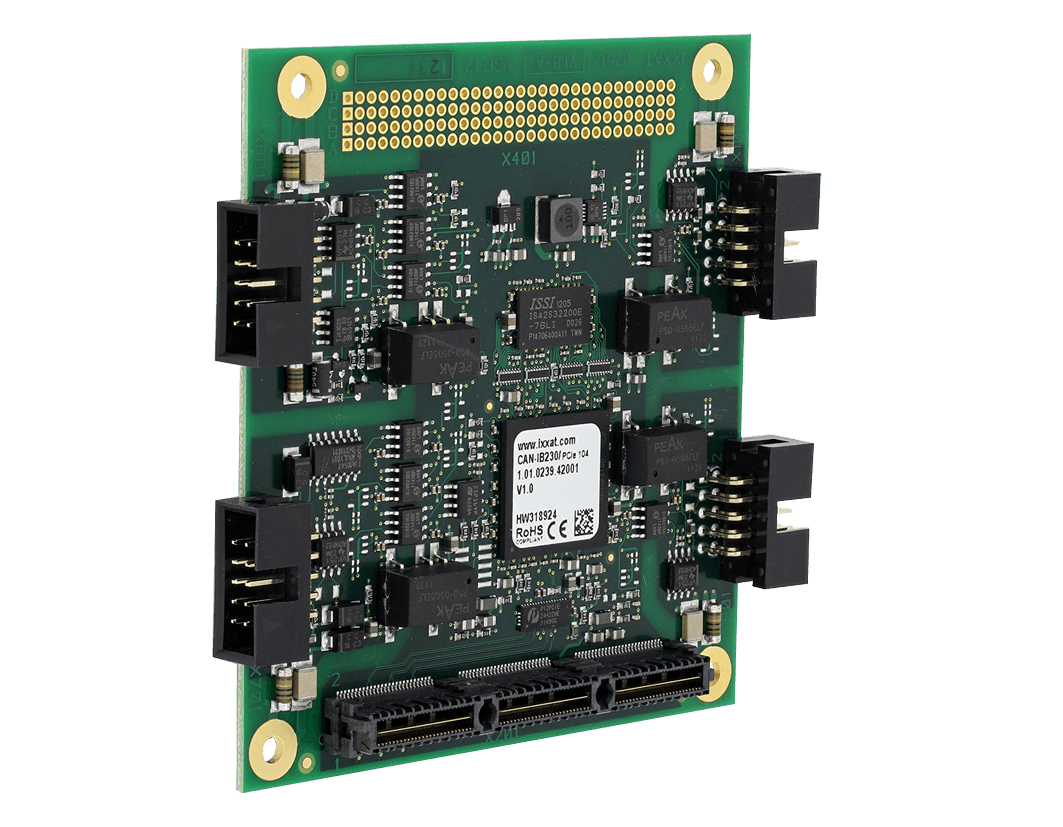

CAN-IB630/PCIe 104
Active CAN FD Interface for PCI/104-Express
2 x CAN FD, CAN (High-Speed)
With the CAN-IB630/PCIe 104 HMS offers a PCI/104-Express board based on a modern and powerful concept. The interface is available with two CAN-FD channels. Each channel can send and receive CAN FD (ISO as well as non-ISO format) or CAN 2.0 A/B messages.
FEATURES AND BENEFITS
- Active board with 32 bit microcontroller
- Two CAN FD channels
- Galvanic isolation of the CAN interface
- Uniform driver packages support all IXXAT CAN and CAN-FD interfaces and allow easy change of the PC interface type
- Powerful programming interface for Windows "VCI" as well as "ECI" for Linux, QNX, RTX, INtime and VxWorks
VERSIONS
The CAN-IB630/PCIe 104 is available with two CAN channels and galvanic isolated interfaces.
TECHNICAL SPECIFICATIONS
| PC bus interface | PCI express (V1.1) |
| PC address range | Plug & Play |
| Interrupts | Plug & Play |
| Microcontroller | 32 bit microcontroller |
| CAN interface | 2 CAN FD / CAN 2.0 A/B interfaces; bent 2 x 5 pin connector according to CiA 303-1; galvanic isolated (1 kV, 1 sec.) |
| Power supply | 3.3 V DC, 390 mA typ. |
| Temperature range | -40 ºC ... +85 ºC |
| Certification | CE |
| Size | Approx. 90 x 96 mm |
Order number
| CAN FD ports | Galv. iso. | Order numbers |
| 2 | X | 1.01.0239.22010 |
