EtherNet/IP Adapter - CANopen Slave - AB7838-F

Giá bán: Liên hệ

Mã sản phẩm: AB7838-F

Thương hiệu: HMS

Tình trạng: Còn hàng

Ordering Information

ORDER CODE: AB7838-F

INCLUDED COMPONENTS:
- Quick start documentation
- USB configuration cable
- Configuration software available for download
- Anybus OPC server software available for download
- (Power supply not included)

    Tư vấnhotline0965746247

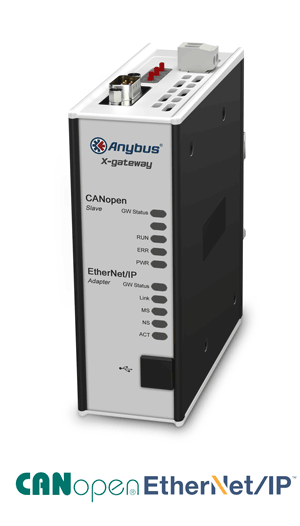

    Anybus X-gateway – EtherNet/IP Adapter - CANopen Slave

    The Anybus X-gateway allows you to seamlessly inter-connect PLC control systems and their connected devices between EtherNet/IP and CANopen networks.

    FAST COPYING OF I/O DATA

    The X-gateways primary function is with the fast transfer of cyclic I/O data between the two networks. This offloads your PLC from working with additional calculations. The gateway acts as an Adapter on the EtherNet/IP network and as a Slave on the CANopen network. The data transmission between the two networks is completely transparent with a maximum data capacity of 512 bytes in each direction.

    EASY CONFIGURATION - NO PROGRAMMING REQUIRED!

    The connection between the two networks is quickly set up in the Anybus Configuration Manager software, included with the X-gateway. No programming skills are needed to set up the X-gateway. As factory default the X-gateways have a pre-defined I/O size of 20 bytes I/O.

    AB7838

    Features and benefits

    • Fast copying of cyclic I/O data between EtherNet/IP and CANopen networks (10-15 ms)
    • Proven and tested with all PLC manufacturers
    • Supports up to a maximum of 512 bytes of Input and Output data in each direction
    • 10/100 Mbit/s Dual-port EtherNet/IP adapter interface with IT functionality
    • Possibility to build web pages displaying and controlling a factory floor process with data from the other connected network
    • Fast, dynamic transfer of fieldbus data to e.g. SCADA/HMI/Enterprise level systems based on Microsoft Windows, via the included Anybus OPC server
    • Optional control status information added to I/O data for diagnostic purposes
    • Global free technical support and consultancy

    EtherNet/IP Adapter/Slave interface

    EtherNet/IP adapter settings can be made either via the built-in web interface, or by importing the provided .EDS file into engineering tool of the controlling PLC.

      • EtherNet/IP CONFORMANCE TESTED™ by ODVA
      • EtherNet/IP Level 2 I/O Server CIP
      • 10/100Mbit operation in full or half-duplex
      • Max. 509 bytes Input and 505 bytes Output data
      • Device Level Ring (DLR) functionality available (announce-based ring participant)
      • Integrated FTP server provides easy file management using standard FTP clients.
      • Web server with dynamic data capability and Server Side Include (SSI) capability
      • Email client with dynamic data capability and Event-triggered email handling
      • Per-user security framework
      • Quality of Service (QoS) available
      • DNS Capability
      • TCP/IP settings via DHCP/ARP/Anybus IPconfig (HICP)
      • Integrated switch allowing for a daisy-chain topology
      • 2x RJ-45 EtherNet/IP ports available simultaneously

      CANopen Slave interface

      CANopen Slave settings can be made either via on-board switches, or by importing the provided .EDS file into engineering tool of the controlling PLC.

      • Complete CANopen slave functionality according to CANopen Version 4.02
      • Max 512 bytes of Input and 512 bytes of Output data (PDO + SDO)
      • Customizable PDO mapping
      • Up to 80 RPDO’s and 80 TPDO’s
      • Transmission types: PDO Sync, Change-of-state, Event based and RTR
      • Network store/restore functionality
      • Heartbeat & Node Guarding support
      • Supports CANopen baudrates 10 kbit/s – 1 Mbit/s
      • CANopen configuration via .EDS file or via on-board rotary switches
      • 1x D-sub 9-pin male CANopen connector

      Technical specifications

      Dimensions (L•W•H)   114 x 44 x 127mm or 4,49 x 1,73 x 5,00"
      Weight 400g or 0,880 lbs
      Operating temperature -25 to +65 °C  or  -13 to +149 °F
      Storage temperature -40 to +85 °C  or  -40 to +185 °F
      Power supply 24 VDC +/- 20% via 2-pole 5.08 mm Phoenix pluggable screw connector
      Current consumption     max. 400mA (Typical 200mA)
      Enclosure material  Aluminium and plastic
      Installation position Vertical / Flat*
      Galvanic isolation YES, on both BUS/Ethernet side
      Mechanical rating IP20, NEMA rating 1
      Mounting DIN-rail (EN 50022 standard)
      I/O configuration via USB port with Anybus Configuration Manager software
      Certifications CE, CULUSRoHS
