EtherNet/IP Adapter - PROFINET-IO Device - AB7649-F

Giá bán: Liên hệ

Mã sản phẩm: AB7649-F

Thương hiệu: HMS

Tình trạng: Còn hàng

Ordering Information

ORDER CODE: AB7649-F

INCLUDED COMPONENTS:
- Quick start documentation
- USB configuration cable
- Configuration software available for download
- Anybus OPC server software available for download
- (Power supply not included)

Tư vấnhotline0965746247

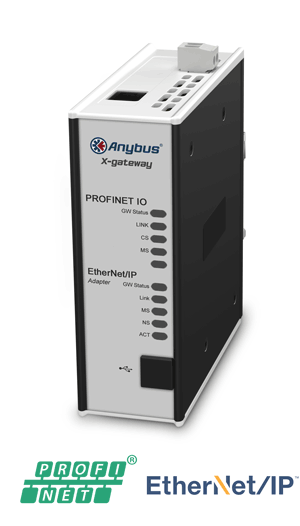

Anybus X-gateway – EtherNet/IP Adapter - PROFINET-IO Device

The Anybus X-gateway allows you to seamlessly inter-connect PLC control systems and their connected devices between EtherNet/IP and PROFINET networks.

FAST COPYING OF I/O DATA

The X-gateways primary function is with the fast transfer of cyclic I/O data between the two networks. This offloads your PLC from working with additional calculations. The gateway acts as a Device on the PROFINET network and as an Adapter on the EtherNet/IP network. The data transmission between the two networks is completely transparent with a maximum data capacity of 512 bytes in each direction.

EASY CONFIGURATION - NO PROGRAMMING REQUIRED!

The connection between the two networks is quickly set up in the Anybus Configuration Manager software, included with the X-gateway. No programming skills are needed to set up the X-gateway. As factory default the X-gateways have a pre-defined I/O size of 20 bytes I/O.

AB7649

Features and benefits

  • Fast copying of cyclic I/O data between EtherNet/IP and PROFINET networks (10-15 ms)
  • Proven and tested with all PLC manufacturers
  • Supports up to a maximum of 512 bytes of Input and Output data in each direction
  • Possibility to build web pages displaying and controlling a factory floor process with data from the other connected network
  • Fast, dynamic transfer of fieldbus data to e.g. SCADA/HMI/Enterprise level systems based on Microsoft Windows, via the included Anybus OPC server
  • Optional control status information added to I/O data for diagnostic purposes
  • Robust stand-alone housing for use in harsh industrial environments
  • Global free technical support and consultancy

EtherNet/IP Adapter/Slave interface

EtherNet/IP adapter settings can be made either via the built-in web interface, or by importing the provided .EDS file into engineering tool of the controlling PLC.

    • EtherNet/IP CONFORMANCE TESTED™ by ODVA
    • EtherNet/IP Level 2 I/O Server CIP
    • 10/100Mbit operation in full or half-duplex
    • Max. 509 bytes Input and 505 bytes Output data
    • Device Level Ring (DLR) functionality available (announce-based ring participant)
    • Integrated FTP server provides easy file management using standard FTP clients.
    • Web server with dynamic data capability and Server Side Include (SSI) capability
    • Email client with dynamic data capability and Event-triggered email handling
    • Per-user security framework
    • Quality of Service (QoS) available
    • DNS Capability
    • TCP/IP settings via DHCP/ARP/Anybus IPconfig (HICP)
    • Integrated switch allowing for a daisy-chain topology
    • 2x RJ-45 EtherNet/IP ports available simultaneously

    PROFINET I/O Device/Slave interface

    PROFINET IO Device/Slave settings can be made by importing the provided .GSDML file into engineering tool of the controlling PLC.

    • Complete PROFINET-IO Soft-Real-Time (RT) communication
    • Max 512 bytes of Input and 512 bytes of Output data
    • Up to 64 slots / 1 sub slot
    • Cyclic data exchange (10 ms cycle time)
    • Acyclic Data exchange (Record Data Requests)
    • Baud rate 100 Mbit/s
    • Integrated FTP server provides easy file management using standard FTP clients
    • Web server with dynamic data capability and Server Side Include (SSI) capability
    • Email client with dynamic data capability and Event-triggered email handling
    • TCP/IP Configuration via DCP (Discovery and Configuration Protocol)
    • PROFINET uplink configuration via web interface or .GSDML file
    • 1x RJ45 network connector

    Technical specifications

    Dimensions (L•W•H)   114 x 44 x 127mm or 4,49 x 1,73 x 5,00"
    Weight 400g or 0,880 lbs
    Operating temperature -25 to +65 °C  or  -13 to +149 °F
    Storage temperature -40 to +85 °C  or  -40 to +185 °F
    Power supply 24 VDC +/- 20% via 2-pole 5.08 mm Phoenix pluggable screw connector
    Current consumption     max. 400mA (Typical 200mA)
    Enclosure material  Aluminium and plastic

    Installation position

    Vertical / Flat*
    Galvanic isolation YES, on both BUS/Ethernet side
    Mechanical rating IP20, NEMA rating 1
    Mounting DIN-rail (EN 50022 standard)
    I/O configuration via USB port with Anybus Configuration Manager software
    Certifications CE, CULUSRoHS

    Files Version Size Download

    MANUALS/DESIGN GUIDES

    Installation Guide - EtherNet/IP Adapter 2.10 277.75 KB Download
    Installation Guide - PROFINET IO Device Interface 2.00 123.08 KB Download
    Installation Guide Anybus X-gateway 2.10 590.67 KB Download
    Network Guide - Ethernet Slave 2.10 1.48 MB Download
    Network Guide - PROFINET IO 2.00 1.38 MB Download
    User Manual - Anybus X-gateway 4.0 6.42 MB Download
    User Manual - HMS IPconfig 1.0 183.30 KB Download

    CERTIFICATIONS

    ATEX Conformance Certificate 5 APRIL, 2016 431.29 KB Download
    EtherNet/IP Conformance Certificate 16 MARCH, 2015 171.51 KB Download
    EU Declaration Of Conformity 20 SEPT, 2019 374.98 KB Download
    KC Certificate - Korea 6 MAR, 2020 575.24 KB Download
    PROFINET Conformance Certificate 5.00 1.12 MB Download

    OTHER FILES

    Drawings of X-gateway 1.00 4.42 MB Download

    SOFTWARE

    Anybus Configuration Manager X-gateway (Win 2000/XP/7/8/10) 1.5.1.1 2.26 MB Download
    Anybus OPC Server 2.5.1.2 38.77 MB Download
    Anybus Transport Provider 4.2.0.1 5.44 MB Download
    Firmware Download Tp 2.16.1.2 10.00 MB Download
    HMS IPconfig - Utility for module TCP/IP configuration 4.1.0.0 2.88 MB Download

    CONFIGURATION FILES

    EDS File For EtherNet/IP Adapter - 2.06 KB Download
    GSDML File For PROFINET 3.29 6.59 KB Download

    APPLICATION NOTES

    Anybus X-gateway EtherNet/IP with Rockwell Studio 5000 - EDS 1.0 908.22 KB Download
    Anybus X-gateway EtherNet/IP with Rockwell Studio 5000 - Generic Module 1.0 856.40 KB Download
    Anybus X-gateway PROFINET with Siemens S7-1500 PLC & TIA Portal 1.0 961.60 KB Download
    Establishing I/O Communication Between Anybus EtherNet/IP And EIPScan Test Tool 2.0 103.24 KB Download
    How To Configure Anybus PROFINET IO Slave Module With Siemens Step7 PLC 1.11 1.74 MB Download
    Reading/Writing data from Anybus X-gateway using ControlLogix5000 MSG instruction 2.1 471.65 KB Download

    BROCHURE/DATASHEET

    Anybus X-gateway Datasheet   1.23 MB Download
