IN770AIR00SO000 Hitachi VRF systems to KNX Application (Hitachi to KNX - Up to 16 Indoor Units)
Aucontech Co Ltd
10 out of
10
Hitachi to KNX - Up to 16 Indoor Units
Hitachi VRF systems to KNX Application

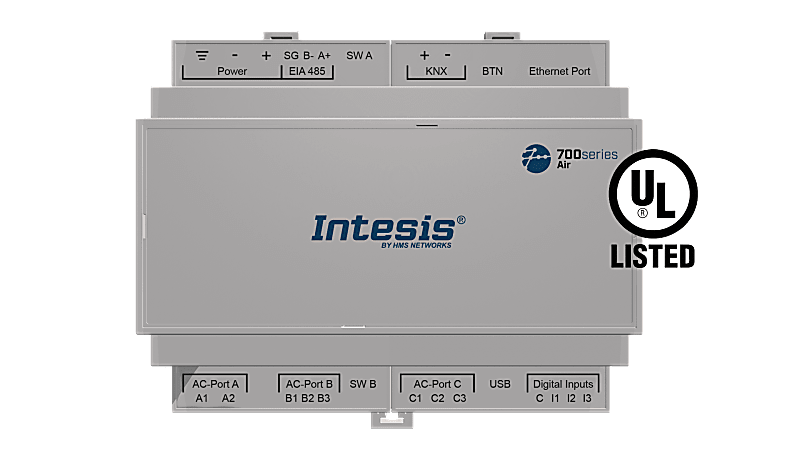

Item number IN770AIR00SO000

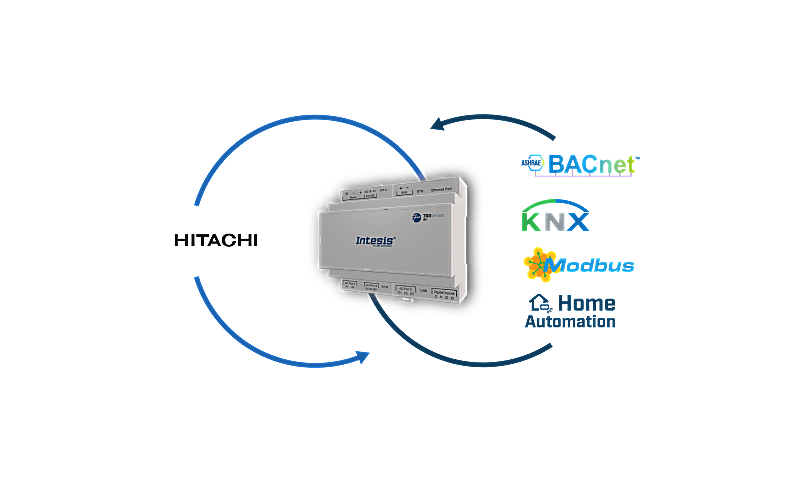

The Hitachi application has been specially designed to allow bidirectional control and monitoring of Hitachi VRF systems from a KNX installation. The solution allows the integration of up to 16 indoor units from a single interface.
-
KNX standard datapoints (DPTs) support
KNX standard datapoints (DPTs) are supported, guaranteeing a simple KNX device/system integration.
-
Direct access to the outdoor unit

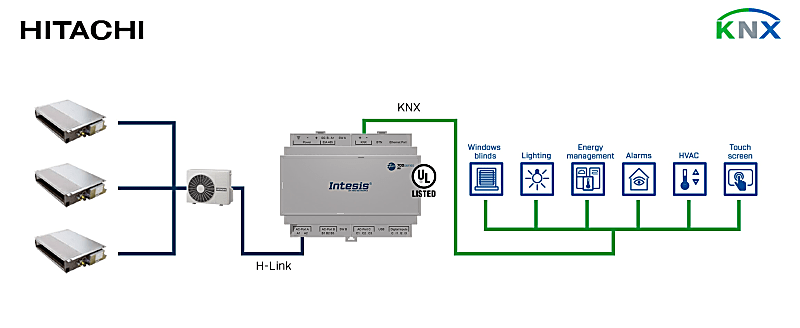

Connection is simple, as the interface connects directly to the outdoor unit’s communication bus.
-
Automatic identification
A scan function is available for automatic identification of the units present in the VRF system.
-
Outdoor unit signals
Signals assigned to the outdoor unit are available to be used in the integration.
-
Individual indoor unit energy consumption signals
Energy consumption signals from each indoor unit are available, so they can be checked individually.
-
Datapoint support
A wide range of monitoring and control datapoints is available.
-
Commissioning-friendly approach with Intesis MAPS
Templates can be imported and reused as often as needed, significantly reducing commissioning time.
-
Configuration tool and interface automatic updates
Both the Intesis MAPS configuration tool and the interface's firmware can receive automatic updates.
