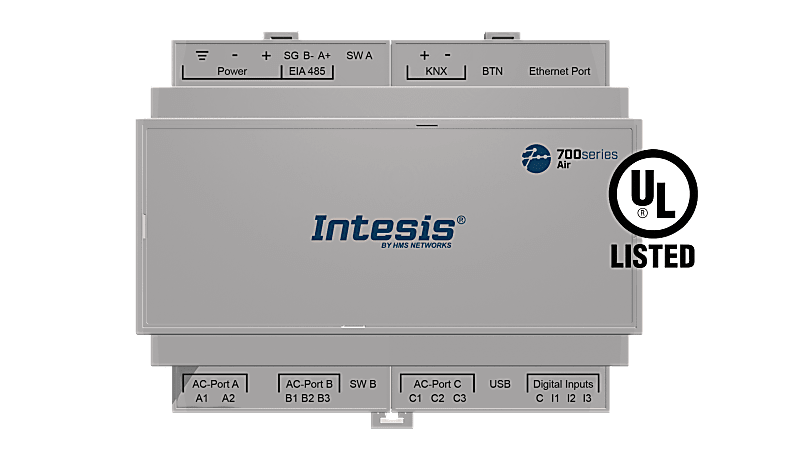

Hitachi to KNX - Up to 64 Indoor Units

Hitachi VRF systems to KNX Application

Item number IN770AIR00MO000

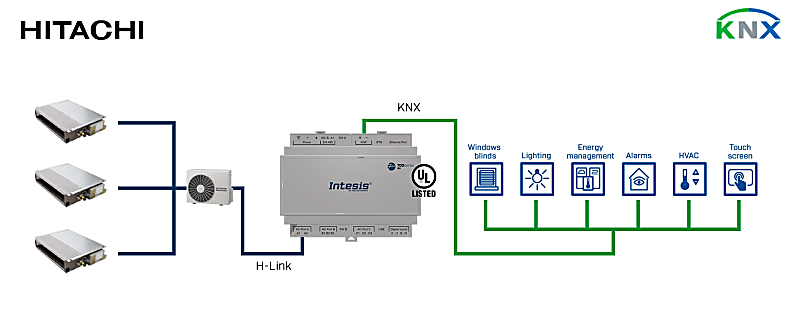

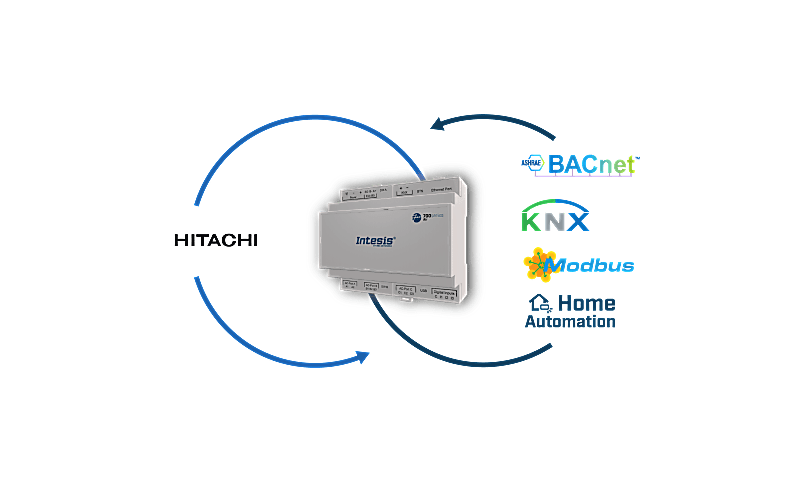

The Hitachi application has been specially designed to allow bidirectional control and monitoring of Hitachi VRF systems from a KNX installation. The solution allows the integration of up to 64 indoor units from a single interface.

• KNX standard datapoints (DPTs) support

  KNX standard datapoints (DPTs) are supported, guaranteeing a simple KNX device/system integration.

• Direct access to the outdoor unit

  Connection is simple, as the interface connects directly to the outdoor unit’s communication bus.

• Automatic identification

  A scan function is available for automatic identification of the units present in the VRF system.

• Outdoor unit signals

  Signals assigned to the outdoor unit are available to be used in the integration.

• Individual indoor unit energy consumption signals

  Energy consumption signals from each indoor unit are available, so they can be checked individually.

• Datapoint support

  A wide range of monitoring and control datapoints is available.

• Commissioning-friendly approach with Intesis MAPS

  Templates can be imported and reused as often as needed, significantly reducing commissioning time.

• Configuration tool and interface automatic updates

  Both the Intesis MAPS configuration tool and the interface's firmware can receive automatic updates.
