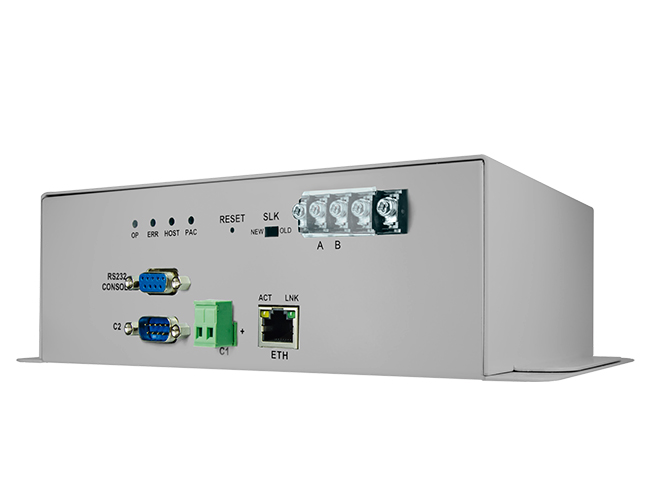

Mitsubishi Heavy Industries VRF systems to KNX Interface

The Mitsubishi Heavy Industries interface has been specially designed to allow bidirectional control and monitoring of Mitsubishi Heavy Industries VRF systems from a KNX installation.

FEATURES

• Direct access to outdoor unit’s communication bus.
• Supports KNX standard datapoints (DPTs) that guarantees a seamless integration with any KNX device or system.
• Wide range of monitoring & control datapoints available.
• Configuration through IP or RS-232 port.

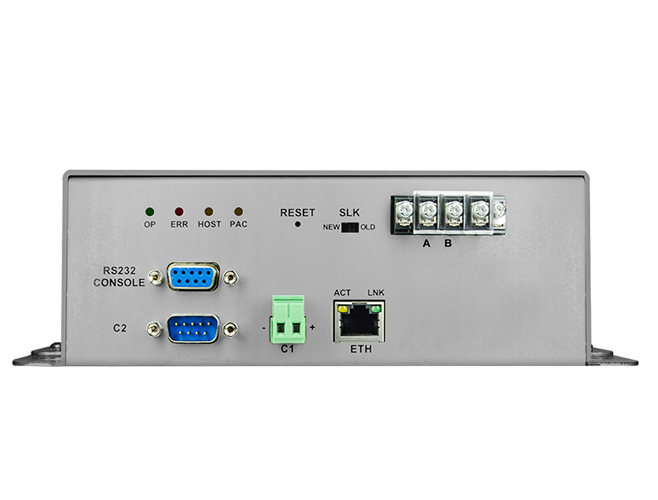

• Front cover LED indicators to provide easy to check communication status on both the Ethernet and serial ports.
• LED indicators to provide easy to check communication status and errors.

Use Case

Integration of Mitsubishi Heavy Industries Air Conditioner Units through Superlink connection into a KNX installation.

Description

DIRECT CONNECTION TO VRF OUTDOOR UNITS

The gateway is directly connected to the outdoor units communication bus and enables the control of all the indoor units connected to the system.

SET UP BY LINKBOX

The configuration is carried out using Linkbox software. This one allows you to define your own settings for the device and offers extra functions such as a diagnostic feature.

Technical Documentation

Programming tools

Commercial Documentation

ORDER CODES:
