INKNXMHI048O000 - Mitsubishi Heavy Industries VRF systems to KNX Interface - 48 units
Aucontech Co Ltd
10 out of
10

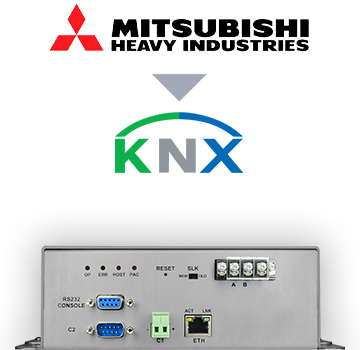

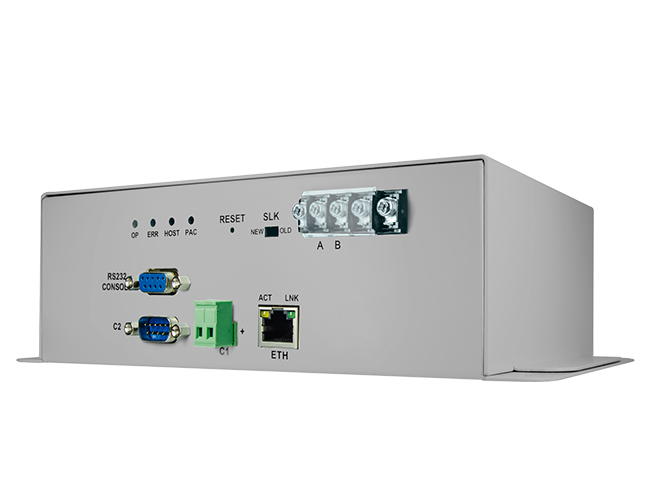

Mitsubishi Heavy Industries VRF systems to KNX Interface
The Mitsubishi Heavy Industries interface has been specially designed to allow bidirectional control and monitoring of Mitsubishi Heavy Industries VRF systems from a KNX installation.
FEATURES
- Direct access to outdoor unit’s communication bus.
- Supports KNX standard datapoints (DPTs) that guarantees a seamless integration with any KNX device or system.
- Wide range of monitoring & control datapoints available.
- Configuration through IP or RS-232 port.

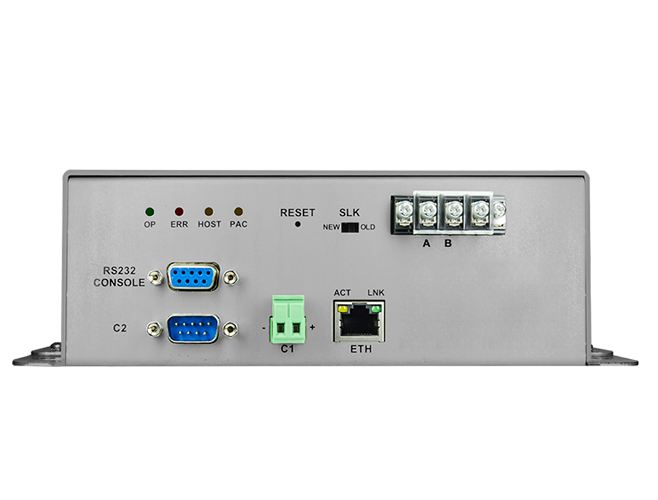

- Front cover LED indicators to provide easy to check communication status on both the Ethernet and serial ports.
- LED indicators to provide easy to check communication status and errors.
Use Case
Integration of Mitsubishi Heavy Industries Air Conditioner Units through Superlink connection into a KNX installation.
Description
DIRECT CONNECTION TO VRF OUTDOOR UNITS
The gateway is directly connected to the outdoor units communication bus and enables the control of all the indoor units connected to the system.
SET UP BY LINKBOX
The configuration is carried out using Linkbox software. This one allows you to define your own settings for the device and offers extra functions such as a diagnostic feature.
Technical Documentation
| User Manual | General information about this product | Download |
| Installation Manual | Learn how to install the device in your project | Download |
| HVAC Compatibility tool | Find the appropriate solution for your HVAC integration | Open |
| EC Declaration of Conformity | Check the product certification | Download |
Programming tools
| LinkBox MB | Configuration software tool | Download |
Commercial Documentation
| Marketing Datasheet | Discover all the integration solutions for Mitsubishi Heavy Industries | Download |
| Intesis Brochure | Know more about the Intesis current available products | Download |
ORDER CODES:
| INKNXMHI048O000 | Mitsubishi Heavy Industries VRF systems to KNX Interface - 48 units |
| INKNXMHI128O000 | Mitsubishi Heavy Industries VRF systems to KNX Interface - 128 units |
