Panasonic ECOi and PACi systems to AC Cloud Control (Wi-Fi) Interface

The AC Cloud Control device for Panasonic allows a complete and natural integration of Panasonic ECOi and PACi systems into AC Cloud Control system for profesional HVAC control and monitoring.

FEATURES

• Easy Wi-Fi configuration using the native Android and iOS App.
• b/g/n Wi-Fi standards supported at 2,4 GHz.
• Bluetooth for configuration.
• Quick and easy installation.
• External power not required, exceptions may apply.
• Simultaneous control of the AC unit by the manufacturer's remote controller and by AC Cloud Control through the App and web.
• Integration with 3rd party systems: IFTTT, Google Assistant, Alexa and Siri Shortcuts.
• Native Android and iOS App.
• Web based dashboard.

Use Case

Integration of Panasonic ECOi & PACi systems into AC Cloud Control.

Description

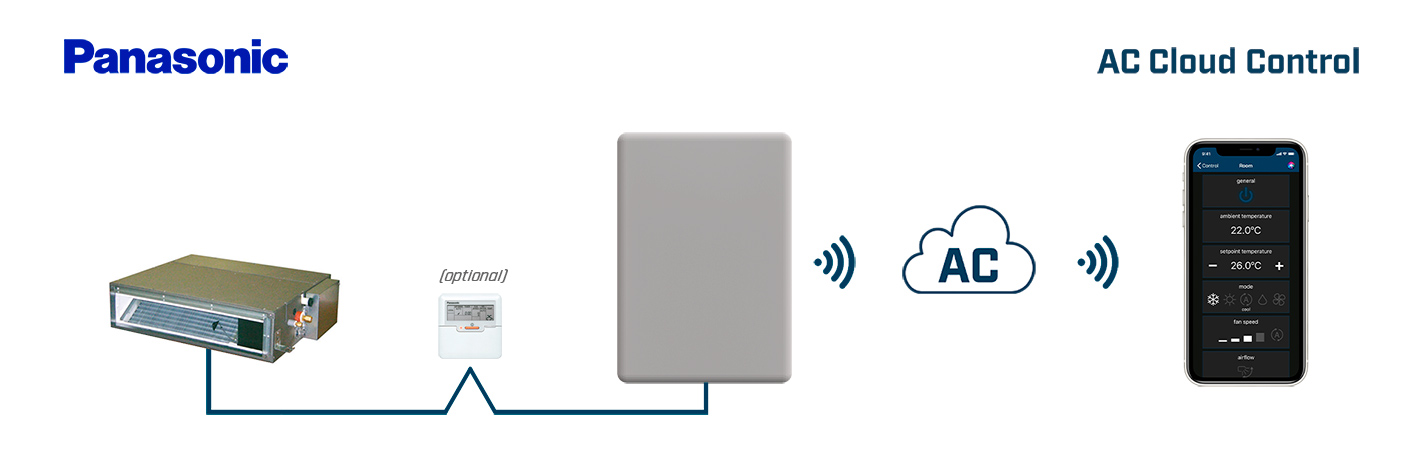

DIRECT CONNECTION TO INDOOR UNITS
The gateway is wired directly to an indoor unit. This allows not only the control of the main AC functions such as operating mode, fan speed, temperature setpoint… but the monitoring of errors and alarms.

THE SOLUTION
AC Cloud Control devices are developed to interface the AC units and provide cloud connectivity using the local Wi-Fi network. They are b/g/n compatible and use 2.4GHz frequency, ensuring further coverage within the installation, and showing no communication problems due to the optimized IoT communication protocol used. They are firewall friendly since only outbound ports are used, ensuring an easy and secure configuration.

FUNCTIONALITY
Many functionalities are available for the device. Discover everything you can do by checking the AC Cloud Control functions list.

Technical Documentation

Commercial Documentation

HVAC Compatibility

Ensure the compatibility of this gateway with your AC model by visiting https://compatibility.intesis.com/

Compatible AC models

S - MD1E5 | S - ML1E5 | S -  MU1E5 / S - MU1E5A | S - MU2E5 / S - MU2E5A | S - PU1U6 | S - MY1E5 | S - MY2E5A | S - MF1E5 / S - MF1E5A | S - MF2E5 / S - MF2E5A | S - PF1U6 | S - MM1E5 / S - MM1E5A | S - ME1E5 | S - ME2E5 | S - MT1E5 | S - MT2E5A | S - PT1U6 | S - MP1E5 | S - MR1E5 | S - PU1E5 / S - PU1E5A | S - PU2E5A | S - PU1R5A | S - PU2U6 | S -  PY1E5 | S - PY2E5A | S - PT1E5 | S - PT2E5 / S - PT2E5A | S - PT2R5A | S - PT2U6 | S - PK1E5 / S - PK1E5A | S - PK1U6 | S - PK2U6 | S - PF1E5 / S - PF1E5A | S - PF1R5 / S - PF1R5A | S - PF2U6 | CS-E - SD3UAW | S - PN1E5 / S - PN1E5A | S - PE1E5 | S - PE1E8 | S - PE1R5A | S - PE1R5B | S - PE2E5 | S - PE2R5 | S - PE2R5B | S - PE3R5

SANYO AC models

SPW-LDR94GXH56B | SPW-LDR124GXH56B | SPW-LDR164GXH56B | SPW-LDR184GXH56B | SPW-LDR254GXH56B | SPW-SR74GXH56B | SPW-SR94GXH56B | SPW-SR124GXH56B | SPW-SR164GXH56B | SPW-SR184GXH56B | SPW-SR254GXH56B | SPW-X076XH | SPW-X096XH | SPW-X126XH | SPW-X166XH | SPW-X186XH | SPW-X256XH | SPW-X366XH | SPW-X486XH | SPW-X606XH | SPW-XM075XH | SPW-XM095XH | SPW-XM125XH | SPW-XM165XH | SPW-XM185XH | SPW-U075SXHT | SPW-U095SXHT | SPW-U125SXHT | SPW-U165SXHT | SPW-U185SXHT | SPW-U255SXHT | SPW-U305SXHT | SPW-U365SXHT | SPW-U485SXHT | SPW-U605SXHT | SPW-US075XH | SPW-US095XH | SPW-US125XH | SPW-US165XH | SPW-US185XH | SPW-DR254GXH56B | SPW-DR364GXH56B | SPW-DR484GXH56B | SPW-DR764GXH56B | SPW-DR964GXH56B | SPW-T125XH | SPW-T165XH | SPW-T185XH | SPW-T255XH | SPW-T365XH | SPW-T485XH | SPW-K075XH | SPW-K095XH | SPW-K125XH | SPW-K166XH | SPW-K186XH | SPW-K256XH | SPW-K366XH | SPW-FR74GXH56B | SPW-FR94GXH56B | SPW-FR124GXH56B | SPW-FR164GXH56B | SPW-FR184GXH56B | SPW-FR254GXH56B | SPW-FMR74GXH56B | SPW-FMR94GXH56B | SPW-FMR124GXH56B | SPW-FMR164GXH56B | SPW-FMR184GXH56B | SPW-FMR254GXH56B | SPW-X126H | SPW-X166H | SPW-X186H | SPW-X256H | SPW-X366H | SPW-X486H | SPW-X606H | SPW-X125H | SPW-X165H | SPW-X185H | SPW-X255H | SPW-X365H | SPW-X485H | SPW-X605H | SPW-XM125H | SPW-XM165H | SPW-XM185H | SPW-U125H | SPW-U165H | SPW-U185H | SPW-U255H | SPW-U365H | SPW-U485H | SPW-U605H | SPW-U185SHT | SPW-U255SHT | SPW-U365SHT | SPW-U485SHT | SPW-U605SHT | SPW-US125H | SPW-US165H | SPW-US185H | SPW-D705H | SPW-D905H | SPW-T125H | SPW-T165H | SPW-T185H | SPW-T255H | SPW-T365H | SPW-T485H | SPW-T605H | SPW-K126H | SPW-K166H | SPW-K186H | SPW-K256H | SPW-K366H | SPW-KR124GH56B | SPW-KR164GH56B | SPW-KR184GH56B | SPW-KR254GH56B

* The asterisks stand for any character in the asterisk' position.
