Ixxat CAN@net NT 100/200/420

Up to 4 x CAN (2 x CAN FD)
CAN-Ethernet gateway, bridge and PC interface

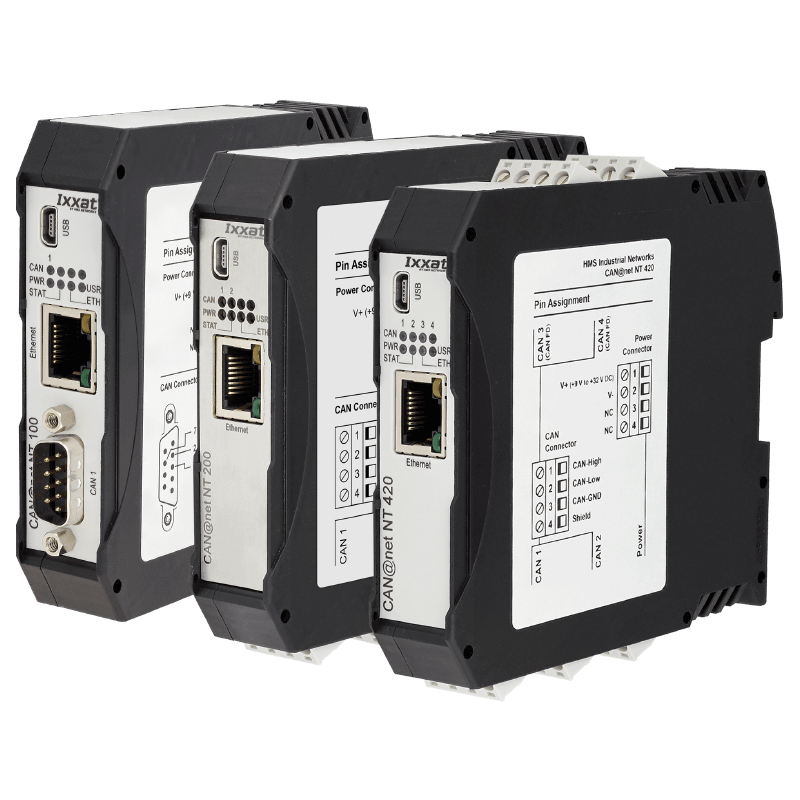

The CAN@net NT is offered in three variants, as CAN@net NT 100 with one classic CAN channel and D-Sub 9 connector, as CAN@net NT 200 with two classic CAN channels and as CAN@net NT 420 with four CAN channels, of which two channels can be switched between CAN and CAN FD. All devices offer three operation modes and can be used as a PC interface as bridge and gateway.

FEATURES AND BENEFITS

FEATURES

• Up to four independent CAN channels (2 CAN FD channels)
• Powerful filter, ID translation, data mapping and multiplexing functionality
• MQTT support for an easy cloud connection (publisher and subscriber)
• Execution of pre-defined actions using event-triggered "Action Rules"
• Programming of any kind of action rules using LUA
• Windows configuration tool for easy configuration via USB or Ethernet
• Configurable security levels for device access (configuration or firmware upload)
• Designed for high performance in industrial environments

BENEFITS

• Easy coupling of CAN and CAN-FD systems and devices
• Bridging of large distances and easy remote system access using Ethernet
• Cost savings due to simple wiring
• Allows system expansion and tree/star topologies
• Increased system reliability
• Line protection by galvanic isolation

CONTENTS OF DELIVERY

• CAN@net NT 100, CAN@net NT 200 or CAN@net NT 420
• User manual
• CD with CAN Gateway Configurator
• CAN VCI driver for Windows
• Mini USB cable

TECHNICAL SPECIFICATIONS

Order number

* Please note: CAN@net NT 100, CAN@net NT 200 and CAN@net NT 420 can not be combined. For a CAN-Ethernet-CAN-Bridge please use either CAN@net NT 100, CAN@net NT 200 devices or CAN@net NT 420 devices.
