PROFINET-IRT Device - Modbus RTU Slave - AB7511-F

Giá bán: Liên hệ

Mã sản phẩm: AB7511-F

Thương hiệu: HMS

Tình trạng: Còn hàng

Ordering Information

ORDER CODE: AB7511-F

INCLUDED COMPONENTS:
- Quick start documentation
- USB configuration cable
- Configuration software available for download
- Anybus OPC server software available for download
- (Power supply not included)

    Tư vấnhotline0965746247

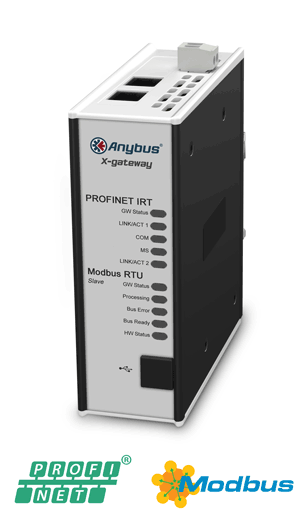

    Anybus X-gateway - PROFINET-IRT Device - Modbus RTU Slave

    The Anybus X-gateway allows you to seamlessly inter-connect PLC control systems and their connected devices between and PROFINET-IRT and Modbus RTU networks.

    FAST COPYING OF I/O DATA

    The X-gateways primary function is with the fast transfer of cyclic I/O data between the two networks. This offloads your PLC from working with additional calculations. The gateway acts as a Device on the PROFINET-IRT network and as a Slave on the Modbus RTU network. The data transmission between the two networks is completely transparent with a maximum data capacity of 512 bytes in each direction.

    EASY CONFIGURATION - NO PROGRAMMING REQUIRED!

    The connection between the two networks is quickly set up in the Anybus Configuration Manager software, included with the X-gateway. No programming skills are needed to set up the X-gateway. As factory default the X-gateways have a pre-defined I/O size of 20 bytes I/O.

    Features and benefits

    • Fast copying of cyclic I/O data between PROFINET-IRT and Modbus RTU networks (10-15 ms)
    • Proven and tested with all PLC manufacturers
    • Supports up to a maximum of 512 bytes of Input and Output data in each direction
    • Possibility to build web pages displaying and controlling a factory floor process with data from the other connected network
    • Fast, dynamic transfer of fieldbus data to e.g. SCADA/HMI/Enterprise level systems based on Microsoft Windows, via the included Anybus OPC server
    • Optional control status information added to I/O data for diagnostic purposes
    • Robust stand-alone housing for use in harsh industrial environments
    • Global free technical support and consultancy

    PROFINET IRT Device/Slave interface

    PROFINET IRT Device/Slave settings can be made either via the built-in web interface, or by importing the provided .GSDML file into engineering tool of the controlling PLC.

    • Complete PROFINET RT and IRT functionality specification 2.3
    • Conformance tested supporting Class A, B and C
    • Max 512 bytes of Input and 512 bytes of Output data
    • Baud rate 10/100 Mbit/s Isochronous cycle times 0.25 to 4 ms (25 Us increments)
    • SNMP-MIBII support
    • TCP/IP Configuration via DCP (Discovery and Configuration Protocol)
    • LLDP (Linked Layer Discovery Protocol)
    • Support for I&M (Identification & Maintenance)
    • PROFINET uplink configuration via .GSDML file
    • Dual port cut-through switch
    • Dual RJ-45 ports available simultaneously
    • PROFINET Asset Management



    Modbus RTU Slave interface

    Modbus RTU network address settings made via on-board configuration switches

    • Complete Modbus RTU slave functionality
    • Max 512 bytes of Input and 512 bytes of Output data
    • Modbus diagnostics support
    • Configuration via on-board DIP switches
    • Modbus RTU baudrate 12-57,6 kbit/s
    • 1x D-sub 9-pin female network connector

    Technical specifications

    Dimensions (L•W•H)   114 x 44 x 127mm or 4,49 x 1,73 x 5,00"
    Weight 400g or 0,880 lbs
    Operating temperature -25 to +65 °C  or  -13 to +149 °F
    Storage temperature -40 to +85 °C  or  -40 to +185 °F
    Power supply 24 VDC +/- 20% via 2-pole 5.08 mm Phoenix pluggable screw connector
    Current consumption     max. 400mA (Typical 200mA)
    Enclosure material  Aluminium and plastic
    Installation position Vertical / Flat*
    Galvanic isolation YES, on both BUS/Ethernet side
    Mechanical rating IP20, NEMA rating 1
    Mounting DIN-rail (EN 50022 standard)
    I/O configuration via USB port with Anybus Configuration Manager software
    Certifications CE, CULUSRoHS
