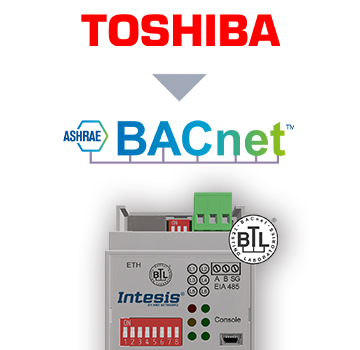

Toshiba VRF and Digital systems to BACnet IP/MSTP Interface

The Toshiba-BACnet gateway allows fully bi-directional communication between Toshiba VRF and Digital Air Conditioner units and BACnet IP or MSTP networks.

FEATURES

• BTL mark ensures full interoperability with BACnet devices.
• Support BACnet IP and BACnet MS/TP.
• Configuration from onboard DIP-switches.
• IP settings available in a web interface.
• Quick and easy installation (plug and set the DP-SW).
• External power not required.
• Simultaneous control of the AC unit by the IR remote controller and by BACnet IP or MS/TP.
• Reduced dimensions 93 x 53 x 58 mm.
• Mountable on DIN rail, wall, or even inside the indoor unit in some models of AC.
• Abstraction of Air Conditioning unit properties and functionalities as fixed BACnet Objects.
• Occupancy function allows energy savings. Costs related to HVAC systems in a building are one of the highest and this type of functions allow to reduce them.
• Total control and monitoring of the AC unit from BACnet, including AC unit’s internal variables, running hours counter (for filter maintenance control) and error indication.

Integration of Toshiba VRF & Digital systems into a BACnet installation.

DIRECT CONNECTION TO INDOOR UNITS

The gateway is wired directly to an indoor unit. This allows not only the control of the main AC functions such as operating mode, fan speed, temperature setpoint…but the monitoring of errors, alarms and some internal variables.

FAST AND EASY TO SET UP BY DIP-SW

The product can be installed and set up in a really short time. It’s only a matter of wiring the gateway to the AC unit and configure the DIP-SW accordingly. No configuration software and no power supply are required.

The product offers a web interface to easily monitor and control the indoor unit connected to the gateway. Additionally, the IP network settings can be stablished from this web interface.

Ensure the compatibility of this gateway with your AC model by visiting https://compatibility.intesis.com/

Compatible AC models

RAV-SM - KRT-E | RAV-SM - KRTP-E | RAV-RM - KRTP-E | RAV-SM - BT-E | RAV-SM - BTP-E | RAV-RM - BTP-E | RAV-SM - DT-E | RAV-SM - DTP-E | RAV-SM - SDT-E | RAV-RM - SDT-E | RAV-SM - CT-E | RAV-SM - CTP-E | RAV-RM - CTP-E | RAV-SM - MUT-E | RAV-RM - MUT-E | RAV-SM - UT-E | RAV-SM - UTP-E | RAV-RM - UTP-E | RAV-DXC010 LC | MMU-AP - MH-E | MMU-AP - MH1-E | MMU-AP - H | MMU-AP - HP-E | MMU-AP - HP1-E | MMU-AP - YH-E | MMU-AP - YH1-E | MMU-AP - SH-E | MMU-AP - SH1-E | MMU-AP - WH | MMU-AP - WH1 | MMD-AP - BH-E | MMD-AP - BHP-E | MMD-AP - BHP1-E | MMD-AP - H-E | MMD-AP - HP-E | MMD-AP - HP1-E | MMD-AP - HFE | MMD-AP - SPH-E | MMD-AP - SPH1-E | MMC-AP - H-E | MMC-AP - HP-E | MMC-AP - HP1-E | MML-AP - BH-E | MML-AP - BH1-E | MML-AP - H-E | MML-AP - H1-E | MMF-AP - H-E | MMF-AP - H1-E | MML-AP - NH-E | MMK-AP - H | MMK-AP - H1 | MMK-AP - MH-C | MMK-AP - MH-E | MMK-AP - MH1-E | MMK-AP - MHP1-E | RAV-SE - 1CP-ID | RAV-SE - 1CP-T | RAV-SE - 1UP-ID | RAV-SE - 1UP-T | RAV-SP - UT-UL

* The asterisks stand for any character in the asterisk' position.

ORDER CODE:
